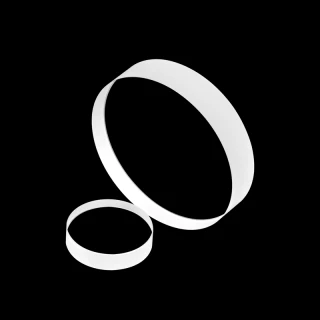

Wedge Windows

Introducing ARD Optics' Custom Made Step and Wedge Windows - precision optical solutions designed for demanding applications. Our windows are meticulously crafted from a variety of materials including Sapphire, Fused Silica, BK-7 glass, and many more to match the specific requirements of your project. Our step and wedge windows are ...

Specifications

Material: ZnSe, Custom, Sapphire, Si, BK7, BaF2, MgF2, IR Grade CaF2, CaF2, IR Grade FS, UVFS, FS
Surface Flatness: Lambda/10, Lambda/8, Lambda/6, Lambda/4, Lambda/2, Lambda, Other
Surface Quality (Scratch-Dig): 10-5, 20-10, 40-20, 60-40, 80-50
Wedge Angle: 1 arc minutes
Diameter: 1 mm
Large Wedge Windows greatly reduce or eliminate interference effects caused by multiple reflections between front and rear surfaces of Plane Windows.They are well suited for use as substrates for laser output couplers in which the reflection from the second surface must be completely eliminated from the gain medium of very sensitive ...

Specifications

Material: BK7, UVFS
Surface Flatness: Lambda/20
Surface Quality (Scratch-Dig): 10-5
Wedge Angle: 5 arc minutes
Diameter: Not Specified

Wedge windows are specialized optical components designed to address specific challenges in laser and photonics systems. Unlike flat windows, wedge windows feature two surfaces that are slightly angled relative to each other, forming a wedge shape. This intentional design serves to eliminate unwanted reflections and interference patterns, enhancing the performance and stability of optical setups.

Functionality and Benefits

The primary advantage of wedge windows lies in their ability to prevent etalon effects—interference patterns resulting from multiple reflections between parallel surfaces. By introducing a slight angle between the surfaces, wedge windows ensure that any reflected beams are directed away from the optical path, thereby minimizing feedback into the laser cavity and reducing the risk of mode hopping or power fluctuations.

Additionally, wedge windows are instrumental in beam sampling applications. The angled design allows a small portion of the beam to be reflected for monitoring purposes without significantly affecting the main beam's intensity or direction. This is particularly useful in systems where real-time beam diagnostics are essential.

Material Considerations

Wedge windows are fabricated from various optical materials, each selected based on the application's wavelength requirements and environmental conditions. Common materials include:

  • Fused Silica: Offers excellent transmission in the ultraviolet (UV) to near-infrared (NIR) range and exhibits high thermal stability.

  • N-BK7 Glass: A cost-effective option with good transmission in the visible spectrum, suitable for general-purpose applications.

  • Calcium Fluoride (CaF₂): Provides low absorption and high transmission from UV to infrared (IR) wavelengths, ideal for broadband applications.

  • Sapphire: Known for its exceptional hardness and durability, making it suitable for high-power laser systems and harsh environments.

The choice of material impacts the window's transmission properties, thermal resistance, and overall durability, making it crucial to select the appropriate substrate for specific applications.

Applications in Optical Systems

Wedge windows are integral components in various optical systems, including:

  • Laser Cavities: Preventing back reflections that can destabilize the laser output.

  • Beam Sampling: Allowing a fraction of the beam to be diverted for monitoring without disrupting the main beam.

  • Interferometry: Reducing interference fringes that can affect measurement accuracy.

  • Spectroscopy: Minimizing stray light and reflections that can interfere with spectral analysis.

Their ability to enhance beam quality and system stability makes wedge windows indispensable in precision optical applications.

Customization and Coatings

Manufacturers offer wedge windows with various customization options to meet specific system requirements. These include different wedge angles, sizes, and anti-reflective (AR) coatings tailored to particular wavelengths. AR coatings further reduce surface reflections, enhancing transmission efficiency and reducing potential losses.

For instance, Thorlabs provides wedged laser windows with AR coatings centered around common lasing wavelengths, offering high damage thresholds suitable for industrial and laser protection applications.

Conclusion

Wedge windows play a critical role in optimizing the performance of laser and optical systems. By mitigating unwanted reflections and interference, they ensure beam stability and system reliability. Their versatility and adaptability to various applications make them a valuable component in the field of photonics.

Did You know?

Wedge windows are a simple yet powerful solution to a major problem in laser optics—unwanted back reflections. Unlike standard flat windows, wedge windows feature slightly angled surfaces that steer reflected beams away from the optical axis. This small design change prevents the formation of etalons—interference patterns caused by parallel surfaces—which can introduce noise, reduce system stability, and even damage sensitive laser components. In high-precision laser applications, even minor reflections can lead to mode hopping or instability in the laser cavity. Wedge windows eliminate this risk by ensuring that reflected light doesn’t travel back into the laser source. They're also frequently used in beam sampling setups, where a portion of the laser beam is intentionally redirected for monitoring or diagnostics without disrupting the main beam. Whether in scientific research, industrial processing, or medical systems, wedge windows offer a smart and efficient way to boost performance and protect your investment.
