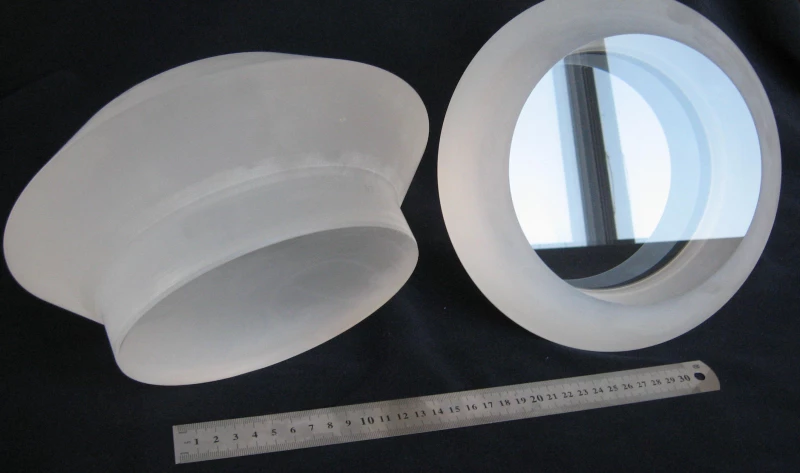

Thumbnail of Custom-Made Step and Wedge Windows | ARD Optics photo 1

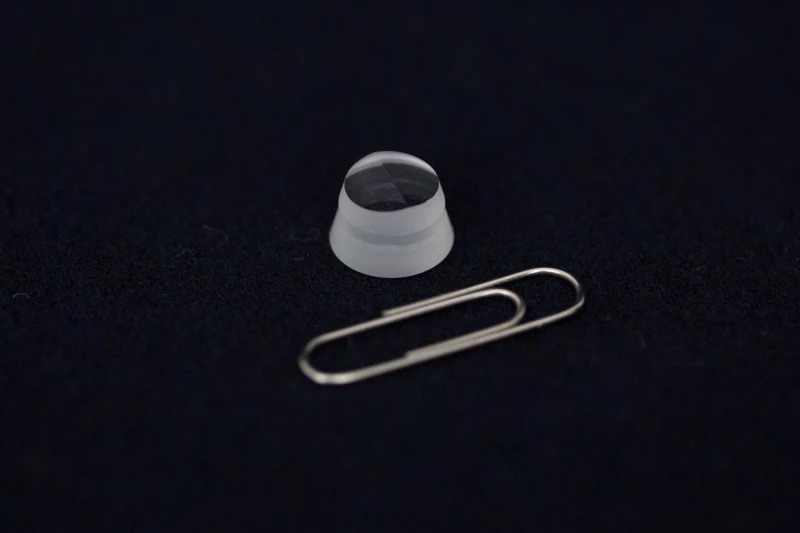

Thumbnail of Custom-Made Step and Wedge Windows | ARD Optics photo 2

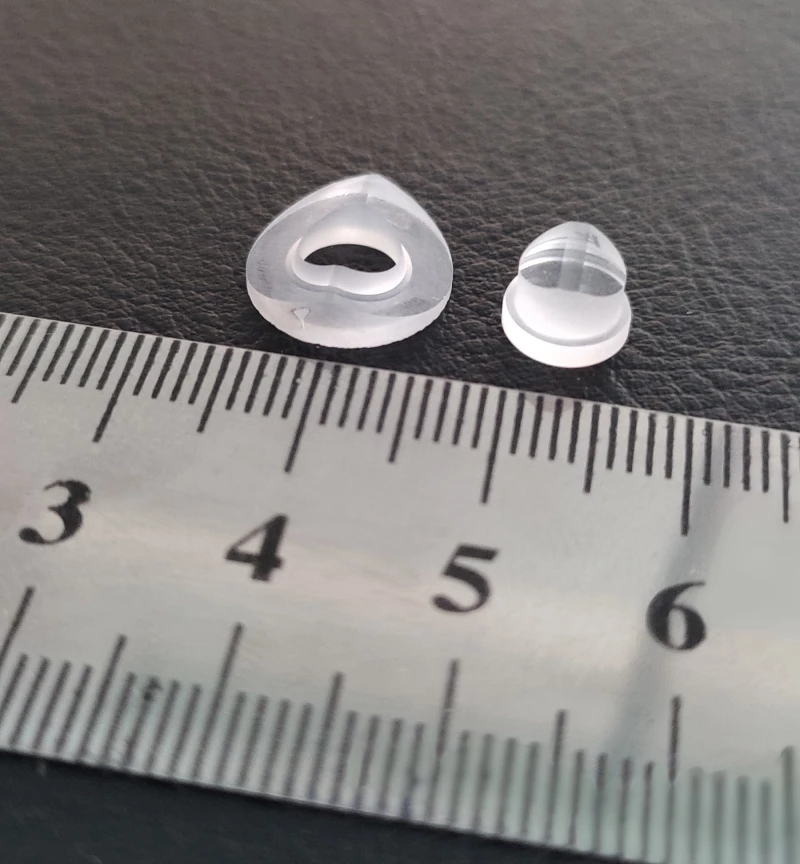

Thumbnail of Custom-Made Step and Wedge Windows | ARD Optics photo 3

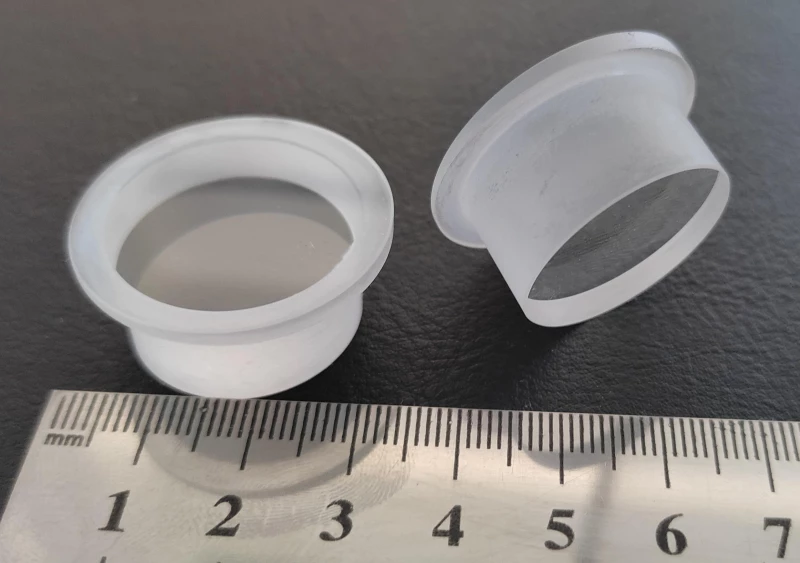

Thumbnail of Custom-Made Step and Wedge Windows | ARD Optics photo 4

Description

Introducing ARD Optics' Custom Made Step and Wedge Windows - precision optical solutions designed for demanding applications. Our windows are meticulously crafted from a variety of materials including Sapphire, Fused Silica, BK-7 glass, and many more to match the specific requirements of your project.

Our step and wedge windows are renowned for their high surface flatness (up to lambda/15) and superior surface quality (up to S/D-10/50), meeting the rigorous standards of MIL-PRF-13830B. Boasting overall dimension tolerances up to +/-0.01mm and a wedge angle tolerance up to 20 arc sec, our products are built for precision and performance.

Perfectly suited for laser systems, industrial equipment, scientific research, and medical devices, these windows can be custom-tailored to fit your specific needs. Whether you require a specific material, surface flatness, surface quality, wedge angle, diameter, or thickness, ARD Optics is here to provide you with the ideal optical solution.

Our commitment to technological innovation and quality has positioned ARD Optics as a trusted supplier of modern optical elements around the globe. Join the growing number of companies from over 35 countries who have chosen ARD Optics for their optical needs.

Download the data sheet or visit the ARD Optics store for more information about our Custom-Made Step and Wedge Windows.

Custom-Made Step and Wedge Windows | ARD Optics

Visit the ARD-OPTICS Store

Specifications

Material: Custom, BK7, GaAs, Sapphire, Chalcogenide Glass, Cleartran, Si, Ge, ZnS, ZnSe, BaF2, MgF2, IR Grade CaF2, CaF2, IR Grade FS, UVFS, FS
Surface Flatness: Other, Lambda/10, Lambda/8, Lambda/6, Lambda/4, Lambda/2, Lambda
Surface Quality (Scratch-Dig): 10-5, 20-10, 40-20, 60-40, 80-50
Wedge Angle: 1 arc minutes
Diameter: 1 mm
Thickness: 1 mm
Dimension Tolerance: Up to +/-0.01mm
Wedge Angle Tolerance: Up to 20 arc sec

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Custom-Made: Tailored to your specific requirements in material, surface flatness, surface quality, wedge angle, diameter, or thickness.
  • Superior Materials: Crafted from high-quality materials like Sapphire, Fused Silica, BK-7 glass, and others.
  • Exceptional Precision: High surface flatness up to lambda/15 and superior surface quality up to S/D-10/50, complying with MIL-PRF-13830B.
  • High Accuracy: Overall dimension tolerances up to +/-0.01mm and a wedge angle tolerance up to 20 arc sec, ensuring precision performance.
  • Trusted Brand: Manufactured by ARD Optics, a globally trusted source for modern optical elements.
  • Available in a wide range of specifications: Catering to a wide spectrum of needs, with options for surface flatness, surface quality (scratch-dig), wedge angle, diameter, and thickness.

Applications

  • Laser Systems: Ideal for use in laser systems, contributing to precise light transmission and improved system performance.
  • Industrial Equipment: An essential component for various industrial machines requiring high precision optics.
  • Scientific Usage: Perfect for use in scientific research and experiments, where accuracy and precision are paramount.
  • Medical Devices: Suitable for integration into medical devices, contributing to improved diagnostic accuracy and treatment efficiency.
  • Security Applications: Suitable for anti-ballistic missile and missile warning & protection systems, and homeland security applications.
  • R&D Applications: Commonly utilized in countless EO systems R&D, KAGRA, VIRGO, The Boltzmann Project etc.
  • Optics for Cosmetics: Useful for cosmetic applications, especially in light guide design.

Frequently Asked Questions

What materials are ARD Optics' Custom Made Step and Wedge Windows available in?
Our windows are available in a variety of materials including Sapphire, Fused Silica, BK-7 glass, and many more based on your specific requirements.
How accurate are the Custom Made Step and Wedge Windows?
These windows boast high accuracy with overall dimension tolerances up to +/-0.01mm and a wedge angle tolerance up to 20 arc sec.
What are the applications of ARD Optics' Custom Made Step and Wedge Windows?
These windows are suitable for a wide range of applications including laser systems, industrial equipment, scientific research, medical devices, and homeland security applications.
What surface flatness and surface quality can I expect from these windows?
Our windows offer a high surface flatness up to lambda/15 and superior surface quality up to S/D-10/50, meeting the rigorous standards of MIL-PRF-13830B.
Are the Custom Made Step and Wedge Windows customizable to my needs?
Yes, ARD Optics is committed to providing custom solutions. Whether you require a specific material, surface flatness, surface quality, wedge angle, diameter, or thickness, we can tailor our windows to fit your specific needs.
Why should I choose ARD Optics' Custom Made Step and Wedge Windows?
ARD Optics is globally trusted as a supplier of modern optical elements. Our commitment to quality, precision, and customer satisfaction makes us the perfect choice for your optical needs.
What materials are the Custom-Made Step and Wedge Windows made from?
The Custom-Made Step and Wedge Windows are crafted from high-quality materials such as Sapphire, Fused Silica, BK-7 glass, and others.
What are the overall dimension tolerances of the windows?
The overall dimension tolerances of the windows are up to +/-0.01mm.
What is the wedge angle tolerance of the windows?
The wedge angle tolerance of the windows is up to 20 arc sec.
What are some applications where these windows can be used?
These windows are ideal for laser systems, industrial equipment, scientific research, medical devices, security applications, R&D applications, and optics for cosmetics.
Where can I find more information about the Custom-Made Step and Wedge Windows?
You can download the data sheet or visit the ARD Optics store for more information about the Custom-Made Step and Wedge Windows.

Got more questions? Use the inquiry form to ask the supplier directly.
