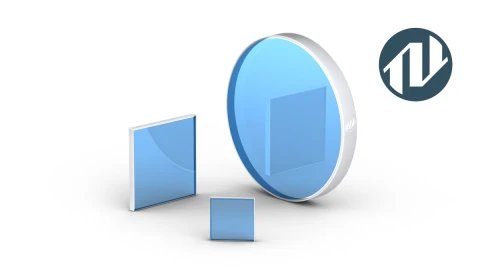

Thumbnail of PP-UVFS-12.7-3.0-AR483-AR483 12.7mm UV Fused Silica Ultrafast Laser Window 515nm photo 1

Description

The OPTOMAN PP-UVFS-12.7-3.0-AR483-AR483 is a precision UV fused silica optical window designed for ultrafast laser systems operating at 515 nm. Made from Corning 7980 0F UVFS, this 12.7 mm diameter, 3.0 mm thick window features IBS anti-reflective coatings on both surfaces with reflectance below 0.1% at 515 nm and normal incidence. Its high optical quality, low transmitted wavefront distortion, and low-scattering surfaces make it well suited to demanding femtosecond and picosecond laser applications.

The window is manufactured with surface flatness better than λ/10 at 633 nm and transmitted wavefront distortion below λ/10 over the clear aperture. Its ultrafast-oriented optical design also supports applications where maintaining pulse characteristics and minimizing dispersion are important. The component is particularly suitable for second-harmonic 515 nm output from Yb:YAG-based ultrafast laser systems.

PP-UVFS-12.7-3.0-AR483-AR483 12.7mm UV Fused Silica Ultrafast Laser Window 515nm

Visit the Optoman Store

Specifications

Substrate Material: UV Grade Fused Silica (UVFS))
Design Wavelength 1: 515 nm
Diameter (or Largest Dimension): 12.7 mm
Thickness: 3 mm
Clear Aperture (CA): 90 %
Antireflection Coating: Coated
Surface Quality (Scratch-Dig): 20-10
Surface Flatness: <= Lambda/10
Transmitted Wavefront Distortion (TWFD) @ 633nm Or Per Manufacturer: <= Lambda/10
Manufacturer Part Number (MPN): PP-UVFS-12.7-3.0-AR483-AR483
FindLight SKU: FL-24768

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • UV fused silica substrate manufactured from Corning 7980 0F material
  • 12.7 mm diameter with a 3.0 mm nominal thickness
  • IBS anti-reflective coating on both optical surfaces
  • Reflectance below 0.1% at 515 nm on each surface
  • Optimized for 515 nm ultrafast laser transmission
  • Greater than 90% clear aperture
  • Surface flatness better than λ/10 at 633 nm
  • Transmitted wavefront distortion below λ/10 at 633 nm over the clear aperture
  • 20-10 surface quality for both surfaces
  • Parallelism better than 10 arcsec
  • Designed for femtosecond and picosecond laser systems where low dispersion is important
  • Suitable for high-peak-intensity ultrafast laser beam paths

Applications

  • 515 nm Ultrafast Laser Systems
  • Second-Harmonic Generation from Yb:YAG Lasers
  • Femtosecond Laser Beam Delivery
  • Picosecond Laser Beam Delivery
  • Ultrafast Laser Micromachining
  • Precision Laser Material Processing
  • Nonlinear Optics and Frequency Conversion
  • High-Peak-Power Laser Experiments
  • Ultrafast Optical Research and Laboratory Systems
  • 515 nm Beam Transmission and Conditioning

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.9000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What wavelength is the PP-UVFS-12.7-3.0-AR483-AR483 designed for?
The optical window is optimized for 515 nm transmission, with IBS anti-reflective coatings providing less than 0.1% reflectance at 515 nm at 0° angle of incidence on both surfaces.
What material is used for this OPTOMAN optical window?
The window is manufactured from UV fused silica, specifically Corning 7980 0F, a material well suited to demanding ultraviolet, visible, and ultrafast laser applications.
What are the dimensions of the PP-UVFS-12.7-3.0-AR483-AR483?
The window has a nominal diameter of 12.7 mm and thickness of 3.0 mm. The specified diameter tolerance is +0/-0.1 mm and thickness tolerance is ±0.1 mm.
Is this optical window suitable for femtosecond lasers?
Yes. It is classified by OPTOMAN as an ultrafast optical window and is designed for femtosecond and picosecond laser systems where high transmission, low wavefront distortion, and controlled dispersion are important.
What optical quality does this 515 nm laser window provide?
The window has greater than 90% clear aperture, 20-10 surface quality, surface flatness better than λ/10 at 633 nm, transmitted wavefront distortion below λ/10 over the clear aperture, and parallelism better than 10 arcsec.

Got more questions? Use the inquiry form to ask the supplier directly.
