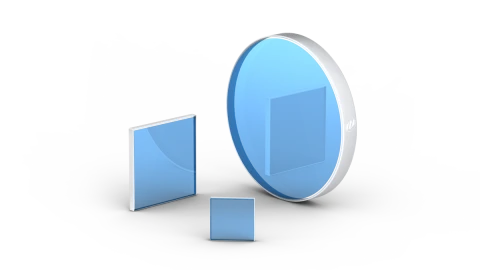

Thumbnail of PP-UVFS-25.4-6.35-AR784-AR784 25.4mm 515nm UVFS Optical Window photo 1
Thumbnail of PP-UVFS-25.4-6.35-AR784-AR784 25.4mm 515nm UVFS Optical Window photo 2

Description

The OPTOMAN PP-UVFS-25.4-6.35-AR784-AR784 is a 25.4 mm diameter ultrafast optical window manufactured from UVFS (Corning 7980 0F) and designed for high-performance femtosecond and picosecond laser systems. Both surfaces feature IBS anti-reflective coatings with reflectance below 0.1% at 515 nm, providing efficient transmission for frequency-doubled Yb:YAG laser applications.

With a 6.35 mm thickness, greater than 90% clear aperture, 10-5 surface quality, and surface flatness better than λ/10 at 633 nm, this fused silica window is suited to demanding precision optical systems. Parallelism below 10 arcsec and an estimated laser-induced damage threshold above 0.25 J/cm² at 515 nm for 500 fs, 10 kHz pulses support applications involving high peak optical intensities.

The ultrafast window is engineered to maintain high transmission while minimizing dispersion-related effects, making it suitable for beam delivery, laser protection, and optical interfaces in advanced ultrafast photonics systems.

PP-UVFS-25.4-6.35-AR784-AR784 25.4mm 515nm UVFS Optical Window

Visit the Optoman Store

Specifications

Substrate Material: UV Grade Fused Silica (UVFS))
Design Wavelength 1: 515 nm
Diameter (or Largest Dimension): 25.4 mm
Thickness: 6.35 mm
Clear Aperture (CA): 90 %
Antireflection Coating: Coated
Surface Quality (Scratch-Dig): 10-5
Surface Flatness: <= Lambda/10
Transmitted Wavefront Distortion (TWFD) @ 633nm Or Per Manufacturer: Unspecified
Manufacturer Part Number (MPN): PP-UVFS-25.4-6.35-AR784-AR784
FindLight SKU: FL-24765

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • 25.4 mm diameter UV fused silica optical window
  • 6.35 mm thickness
  • Corning 7980 0F UVFS substrate
  • IBS AR coating optimized for 515 nm
  • Less than 0.1% reflectance on both surfaces at 515 nm
  • 10-5 surface quality
  • Surface flatness better than λ/10 at 633 nm
  • Clear aperture greater than 90%
  • Parallelism below 10 arcsec
  • Estimated LIDT above 0.25 J/cm² at 515 nm, 500 fs, 10 kHz

Applications

  • 515 nm ultrafast laser systems
  • Second-harmonic Yb laser systems
  • Femtosecond laser beam transmission
  • Picosecond laser applications
  • High-throughput optical assemblies
  • Laser beam delivery and protection
  • Ultrafast spectroscopy
  • Precision laser processing
  • Nonlinear optics and frequency conversion
  • Research and development optical systems

Export & Trade Information

ECCN: EAR99
HTS Code: 9001.90.9000
Estimated US Tariff: 10%

Importing, tariffs & codes (Quick Guide) →

Frequently Asked Questions

What is the OPTOMAN PP-UVFS-25.4-6.35-AR784-AR784?
It is a plano-plano UV fused silica optical window with a 25.4 mm diameter and 6.35 mm thickness, designed for high-performance 515 nm ultrafast laser applications.
What wavelength is the AR coating optimized for?
The IBS anti-reflective coating is optimized for 515 nm and provides less than 0.1% reflectance at normal incidence on both optical surfaces.
What material is used for this laser window?
The window is manufactured from Corning 7980 0F UV fused silica, a material well suited to demanding laser and ultraviolet-visible optical applications.
What are the surface specifications of the window?
The window has 10-5 surface quality on both sides, surface flatness better than λ/10 at 633 nm, and parallelism below 10 arcsec. The clear aperture exceeds 90%.
Can this window be used with femtosecond lasers?
Yes. It is intended for ultrafast laser applications and has an estimated LIDT above 0.25 J/cm² at 515 nm for 500 fs pulses at 10 kHz, making it appropriate for suitable femtosecond and picosecond systems.

Got more questions? Use the inquiry form to ask the supplier directly.
