Description
The Optical BaF2 (Barium Fluoride) Infrared Temperature Measurement Window by UM OPTICS is a high-performance optical component designed to separate environmental conditions while protecting internal devices. Manufactured from premium BaF2, this window offers excellent transmission across ultraviolet, visible, and infrared wavelengths, making it ideal for precision temperature measurement systems.
The infrared observation window isinstalled in the switchgear,powerplant fans,pumps, coal mills andother electrical equipment such asmotor junction boxes,transformer boxes,transformer junction boxes,GIS high-voltage equipment etc. It can realize the real-time detection of infrared imaging temperature measurement of equipment in the state of powered operation.

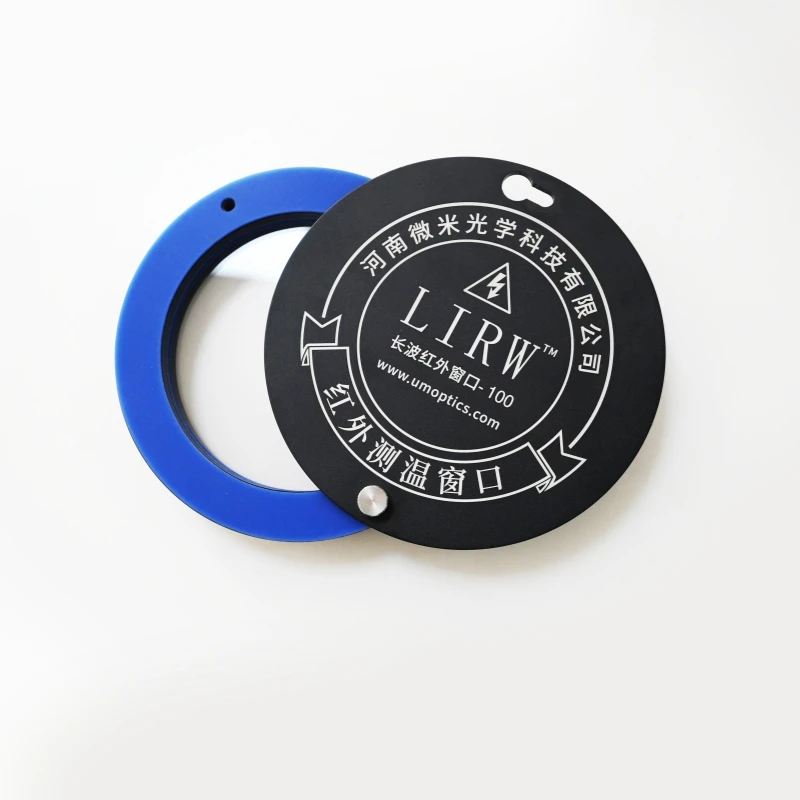

Optical BaF2 Barium Fluoride Infrared Temperature Measurement Window
Specifications
| Substrate Material: | BaF2 |
|---|---|
| Diameter (or Largest Dimension): | 100 mm |
| Thickness: | 3 mm |
| Antireflection Coating: | Coated |
| Surface Quality (Scratch-Dig): | 40-20 |
| Surface Flatness: | <= Lambda/4 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Wide Spectral Transmission: Offers excellent optical performance across ultraviolet, visible, and infrared wavelengths.
- High-Quality Material: Made from premium BaF2 (Barium Fluoride), known for its durability and optical clarity.
- Customizable Designs: Available in round, rectangular, wedge, drilled, and step-shaped configurations.
- Precision Engineering: Processed using ultra-precision single-point diamond turning for superior surface quality.
- Advanced Coating Options: Includes anti-reflective, filtering, beam-splitting, and infrared-specific coatings.
- Rugged and Reliable: Designed to protect internal devices by isolating environments effectively.
Applications
- Medium and High Voltage Switchgear & Urban Ring Network Cabinets：Enable safe non-contact infrared inspection of live electrical components to detect overheating and connection faults
-
GIS High Voltage Equipment：Provide a sealed infrared inspection interface for temperature monitoring inside gas-insulated high-voltage systems
-
Motor Junction Boxes for Power Plant Fans, Pumps, and Coal Mills：Allow thermal monitoring of motor cable connections to identify abnormal heating under high-load operation
-
Motor Control Centers (MCC)：Support fast infrared inspection of breakers, contactors, and busbars for predictive maintenance
-
Transformer Junction Boxes：Enable temperature monitoring of cable terminations to prevent insulation failure and thermal damage
-
Infrared Detection in Confined Environments：Provide reliable infrared access for temperature inspection in enclosed or restricted industrial spaces
Frequently Asked Questions
Why choose BaF₂ for infrared temperature measurement windows?
Why are infrared windows important for electrical equipment inspection?
Which infrared wavelength range is typically required for temperature measurement?
Can UM Optics customize infrared temperature measurement windows according to the requirements?
Got more questions? Use the inquiry form to ask the supplier directly.
