Description

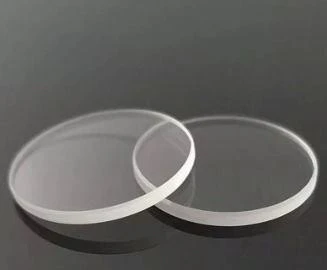

Optical Windows are flat, plane-parallel plates that are often used as protective barriers for electronic sensors or detectors from outside environments. Optical Windows should be selected based on the material transmission or mechanical properties of the substrate. Optical windows do not cause change in the magnification of a system.
High-Precision Optical Windows | Durable Protective Barriers for Sensors
Minyi Technology
Specifications
Substrate Material: | N-BK7, Fused Silica, UV Grade Fused Silica, Sapphire, Ge, CaF2, MgF2 |
---|---|
Antireflection Coating: | Uncoated |
Surface Quality: | 60-40 scratch-dig |
Surface Flatness: | lambda/2 |
Thickness: | 0.2 mm |
Material: | BK7, B270, Float Glass, FS, UVFS, Ge, CaF2, MgF2, Sapphire or others |
Dimension Tolerance: | +0.0/-0.2mm (Standard), +0.0/-0.1mm (High Precision) |
Tc Tolerance: | ±0.3mm (Standard), ±0.1mm (High Precision) |
Clear Aperture: | 85% (Standard), 90% (High Precision) |
Surface Quality: | 60-40 S-D (Standard), 20-10 S-D (High Precision) |
Surface Flatness: | 1/2λ@632.8nm (Standard), 1/8λ@632.8nm (High Precision) |
Deviation: | ±3 arcmin (Standard), ±1 arcmin (High Precision) |
Coating: | Uncoated, available upon request |
Features
- Versatile Materials: Available in BK7, B270, Float Glass, Fused Silica (FS), UV Fused Silica (UVFS), Germanium (Ge), Calcium Fluoride (CaF₂), Magnesium Fluoride (MgF₂), Sapphire, and more.
- Dimension Accuracy: Precision-manufactured with tolerances of +0.0/-0.2 mm or +0.0/-0.1 mm for various application needs.
- Exceptional Surface Quality: Options include 60-40 S-D for standard precision and 20-10 S-D for high-precision applications.
- Superior Flatness: Achieve wavefront accuracy with flatness options of 1/2λ or 1/8λ @ 632.8 nm.
- Minimal Deviation: Angular deviation maintained at ±3 arc minutes for standard precision and ±1 arc minute for high precision.
- High Transmission Efficiency: Clear aperture up to 90% for enhanced light throughput.
Applications
- Protective barriers for electronic sensors or detectors
- High-performance optical systems in research, medical, or industrial fields
- Precision measurement and laser-based systems
Frequently Asked Questions
What are optical windows used for?
Optical windows are flat, plane-parallel plates used as protective barriers for electronic sensors or detectors from outside environments.
Do optical windows affect the magnification of a system?
No, optical windows do not cause any change in the magnification of a system.
What materials are available for optical windows?
Optical windows can be made from materials such as BK7, B270, Float Glass, FS, UVFS, Ge, CaF2, MgF2, Sapphire, or others.
What is the difference between standard and high precision optical windows in terms of dimension tolerance?
Standard optical windows have a dimension tolerance of +0.0/-0.2mm, while high precision optical windows have a tolerance of +0.0/-0.1mm.
What is the surface quality of high precision optical windows?
High precision optical windows have a surface quality of 20-10 S-D.
Can optical windows be coated?
Yes, optical windows are uncoated by default, but coatings are available upon request.
