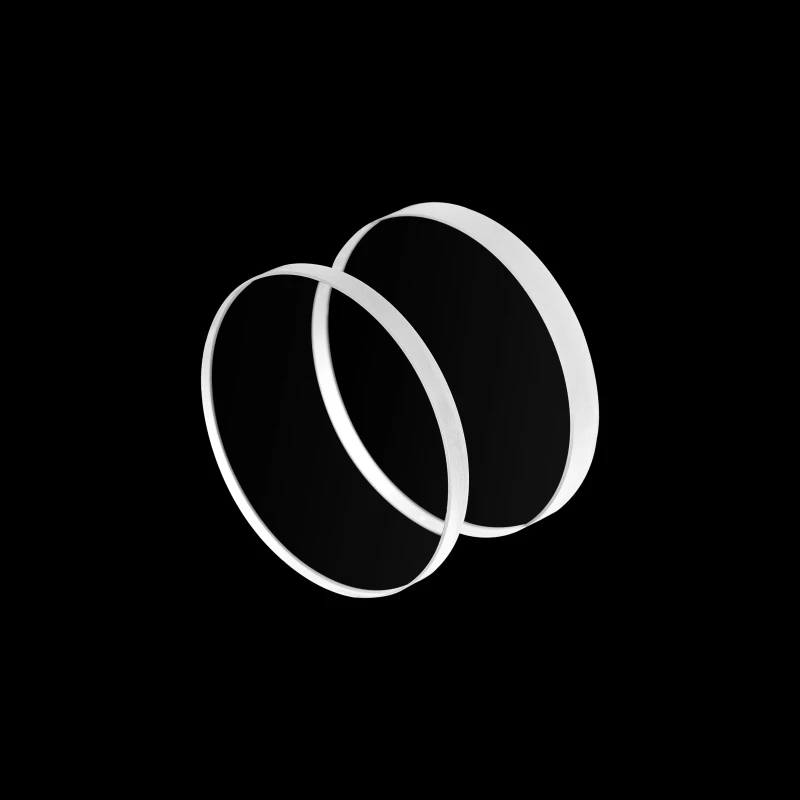

Factory Custom High Transmittance Optical N-BK7 Glass Window

Name: Factory Custom High Transmittance Optical N-BK7 Glass Window
Brand: Henan UM Optics Ltd
Availability: InStock

Description

N-BK7 windows are precision optical components fabricated from Schott N-BK7 borosilicate crown glass, a widely adopted material in the optics industry for its balanced performance and cost-effectiveness. As a parallel flat glass element, N-BK7 windows do not alter the magnification of optical systems or the propagation angle of light beams, primarily serving to protect core optical components from dust, moisture, and contamination while ensuring stable and undistorted light transmission.The material exhibits excellent optical homogeneity with low bubble and impurity content, making it ideal for visible and near-infrared (NIR) applications.

Specifications

Substrate Material:	N-BK7
Antireflection Coating:	Coated, Uncoated
Diameter:	12.7 mm
Surface Quality:	60-40 scratch-dig
Surface Flatness:	lambda/4
Thickness:	1 mm
Diameter Tolerance:	+0/-0.1mm
Thickness Tolerance:	±0.1mm
Parallelism:	≤ 3 arcmin
Clear Aperture:	>90%

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Broad Spectral Compatibility: Optimized for visible and near-infrared (NIR) bands, enabling stable light transmission with minimal distortion across the applicable wavelength range
Low Optical Loss: Uncoated versions feature minimal surface reflection loss, while broadband antireflection (AR) coatings further reduce reflectance for enhanced light throughput
Precision Manufacturing: Crafted with high surface flatness, superior surface quality, and tight parallelism to ensure minimal beam distortion in optical systems
Cost-Effectiveness: Delivers reliable visible/NIR performance at a competitive price point, outperforming premium alternatives like fused silica and sapphire in cost efficiency for routine use
Easy Integration: Compatible with standard optical mounting accessories and stress-free retaining solutions, facilitating secure and convenient installation into existing systems
Balanced Durability: Boasts moderate mechanical strength and stability, well-suited for the demands of routine laboratory and industrial operating environments

Applications

Scientific Research & Laboratory: Used in optical setups, spectrometers, interferometers to shield sensitive components while maintaining beam integrity for high-precision measurements
Laser Systems: Ideal for laser cavities, beam delivery systems, and processing equipment; 1.0 mm thin windows for ultrafast lasers, AR-coated versions minimize energy loss in high-power setups
Industrial Automation & Sensing: Applied in machine vision, optical sensors, and inspection equipment to protect optics from dust/humidity without degrading image/signal quality
Medical Devices: Integrated into endoscopes, diagnostic spectrometers, and therapeutic devices, relying on optical clarity and material stability
General Optics: Used as protective windows in microscopes, telescopes, consumer optics, and educational instruments, leveraging cost-effectiveness and reliable performance

Name

Work Email

Organization

Your message to supplier

FAST RESPONSE

Ships from:

China

Sold by:

Henan UM Optics Ltd ✓ Verified Supplier

On FindLight:

since 2024

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

Besides round windows, what other N-BK7 optical components does UM Optics offer?

UM Optics provides a comprehensive range of N-BK7 components beyond round windows, including round drilled windows, rectangular windows, and rectangular drilled windows.

How does N-BK7 compare to fused silica and sapphire for window applications?

N-BK7 balances cost and performance: it is more affordable than fused silica and sapphire, easier to fabricate, and performs well in visible/NIR ranges. Fused silica offers extended UV transmission (200 nm - 3.5 μm) and lower thermal expansion but at higher cost. Sapphire provides broader wavelength coverage (200 nm - 5.0 μm), superior hardness, and thermal stability but is expensive and difficult to process.

Are custom-sized or coated N-BK7 windows available?

Yes, UM Optics provides custom dimensions (round/rectangular), thicknesses, and specialized AR coatings for specific wavelength ranges.
