Page 2 - Power Sensors

The UP10P-2S-H5-L-D0 is a thermal detector designed for accurate laser power measurement up to 2 W. It features a convection cooling system and an aperture diameter of 10 mm. With its high sensitivity and low noise, this detector provides reliable power measurements in a compact form factor. It is an ideal solution for various laser ...

Specifications

Max Average Power: 2 W
Effective Aperture: 10 mm
Spectral Range: 0.19-20um
Cooling Method: Convection
Noise Equivalent Power: 30 μW
...
Data Sheet
The UPF10P-2S-H5-L-D0 is a high-performance thermal detector designed for accurate laser power measurement up to 2 W. It combines the low power thermopile technology with the large bandwidth and high-power capacity of a thermal device. With its compact design and smart interface containing calibration data, it offers convenience and ...

Specifications

Max Average Power: 2 W
Effective Aperture: 10 mm
Spectral Range: 0.28-21um
Cooling Method: No cooling
Rise Time: 1.4 sec
...
Data Sheet
The UP17P-6S-H5-D0 is a thermal detector designed for laser power measurement up to 6 W. With its ultra-thin casing and high "power to size" ratio, this detector offers compact and accurate power measurement capabilities. It features a choice between two absorbers: H5 with a power density of 36 kW/cm2 and W5 with an unmatched power ...

Specifications

Max Average Power: 6 W
Effective Aperture: 17 mm
Spectral Range: 0.19-20um
Cooling Method: Convection
Absorber Choices: H5 (36 kW/cm2), W5 (100 kW/cm2)
...
Data Sheet
The UP19K-110F-H9-D0 is a high-performance thermal detector designed for laser power measurement up to 110 W. It offers a compact design, fast rise time, and a high damage threshold. With its modular concept, it provides flexibility in increasing the power capability of the detector. The detector is equipped with a smart interface ...

Specifications

Max Average Power: 110 W
Effective Aperture: 19 mm
Spectral Range: 0.19-20um
Cooling Method: Water, Heatsink, Fan-cooled
Dimensions: 50H x 50W x 63D mm
...
Data Sheet

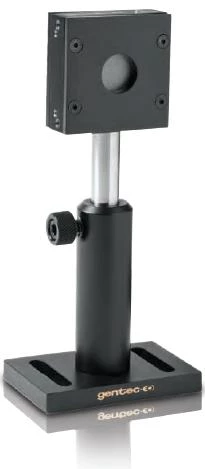

The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.  The high power surface absorber sensors are designed for use at high average power ...

Specifications

Max Average Power: 200 W
Effective Aperture: 19 mm
Spectral Range: 0.19-20um
Cooling Method: Water, Heatsink, Fan-cooled
Data Sheet
The Low-Cost Smart Detector Head/Optical Power Monitor is an OEM module that can be embedded in systems for remote power monitoring or for long-term power logging for burn-in test stations. The device offers a high, greater than 60 dB linear dynamic range, and can be easily embedded in long-term power monitoring stations like ...

Specifications

Max Average Power: -- W
Effective Aperture: 1 mm
Spectral Range: 0.9-1.65um
Cooling Method: No cooling
Measurement Range: IR: -50 to +10 dBm
...
Data Sheet
The Artifex Engineering OPM500 is a flexible, powerful, and easy-to-use optical power meter designed for precise measurement of power from pW to mW. It utilizes a photodiode to measure optical power and produces a voltage linearly proportional to the input power.    The OPM500 has USB and hard-wire interface control of ...

Specifications

Max Average Power: -- W
Effective Aperture: -- mm
Spectral Range: 0.25-2.2um
Cooling Method: Heatsink
Measurement Range: pW to mW
...
Data Sheet
The OPM200 Optical Power Meter is a cost-effective and powerful device designed for accurate and fast measurement of optical power in the range of μW to mW.    The device provides a linearly proportional output voltage in response to the input power. The device is fixed gain and features high-quality photodiodes and ...

Specifications

Max Average Power: 0.045 W
Effective Aperture: -- mm
Spectral Range: 0.2-2.2um
Cooling Method: No cooling
Wavelength Range (UV-Si): 200 – 950 nm
...
Data Sheet
UP55G-600F-HD-D0 is a Thermal Detector for Laser Power Measurement. It can measure powers as high as 600W. It can be used with Gentec's STAND-S-443-C custom stand. Please inquire for details. Compatible displays and interfaces include:MIRO ALTITUDE: Touchscreen display device for power & energy measurement. ...

Specifications

Max Average Power: 600 W
Effective Aperture: 55 mm
Spectral Range: 0.19-20um
Cooling Method: Fan-cooled
Maximum Measurable Energy: 200 J
...
Data Sheet
Handheld Optical Power Meter YPM-8201-01 YPM-8201-01 handheld optical power meter is concise, precise, and reliable, an ideal choice for optical power measurement . It is of moderate size and equipped with a large LCD screen. It can be powered by an adapter and rechargeable battery. It is also featured powerful functions, such as ...

Specifications

Max Average Power: 10m,5 W
Effective Aperture: 11.28 mm
Spectral Range: 200-1650um
Cooling Method: Convection
Model: YPM-8201/8202/8203/8204/8205
...
Data Sheet
The Gentec-EO Ultra Series UP power detector family includes thirteen series (XLP12, UP12E, UP10K(P), UP17P, UP19K, UP25N(M), UP25T, UP50N(M), UP55N(M), UP55C, UP60N(M), UP55G, and UP60G) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high-power ...

Specifications

Max Average Power: 350 W
Effective Aperture: 25 mm
Spectral Range: 0.19-20um
Cooling Method: Water
Max Output Signal: N. A.
...
Data Sheet
Gentec-EO offers UP25 series high power detectors for laboratory and industrial applications.

Specifications

Max Average Power: 100 W
Effective Aperture: 25 mm
Spectral Range: 0.19-20um
Cooling Method: Heatsink
Max Average Power (1 Minute): 200 W
...
Data Sheet
Gentec-EO offers UP25H series high power detectors for laboratory and industrial applications.

Specifications

Max Average Power: 250 W
Effective Aperture: 25 mm
Spectral Range: 0.19-20um
Cooling Method: Fan-cooled
Max Average Power (1 Minute): 300 W
...
Data Sheet
Gentec-EO offers a power detector for measuring laser powers in the range from 600W - 2500W. UP-HD series power meters can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).

Specifications

Max Average Power: 2500 W
Effective Aperture: 55 mm
Spectral Range: 0.19-20um
Cooling Method: Water
Noise Equivalent Power: 200 mW
...
Data Sheet
Gentec-EO offers a power detector for measuring laser power in the ultra low range from 5nW-25mW. This detector is compatible with different types of power monitors: analog power module (APM) and Gentec\'s power monitors.     UM9B-BL-L-D0 series detectors can be used in a wide range of applications for detecting ...

Specifications

Max Average Power: 0.025 W
Effective Aperture: 9 mm
Spectral Range: 0.1-20um
Cooling Method: Convection
Noise Equivalent Power: 5 nW
...
Data Sheet
Gentec-EO offers a power detector for measuring laser power in the ultra-low range from 5nW-25mW. This detector is compatible with different types of power monitors: analog power module (APM) and Gentec's power monitors.    UM9B-BL-D0 series detectors can be used in a wide range of applications for detecting light from ...

Specifications

Max Average Power: 0.025 W
Effective Aperture: 9 mm
Spectral Range: 0.1-20um
Cooling Method: Convection
Noise Equivalent Power: 300 nW
...
Data Sheet

Specifications

Max Average Power: 40 W
Effective Aperture: 25 mm
Spectral Range: 0.19-20um
Cooling Method: Convection
Max Average Power (1 Minute): 80 W
...
Data Sheet
Gentec-EO offers UP55 series high power detectors for industrial and laboratory applications.

Specifications

Max Average Power: 300 W
Effective Aperture: 55 mm
Spectral Range: 0.19-20um
Cooling Method: Fan-cooled
Noise Equivalent Power: 15 mW
...
Data Sheet
UP55N-100H-H9-D0 is a Thermal Detector for Laser Power Measurement

Specifications

Max Average Power: 100 W
Effective Aperture: 55 mm
Spectral Range: 0.19-20um
Cooling Method: Heatsink
Max Average Power (1 Minute): 200 W
...
Data Sheet
Gentec-EO offers UP55 series high power detectors for industrial and laboratory applications.

Specifications

Max Average Power: 40 W
Effective Aperture: 55 mm
Spectral Range: 0.19-20um
Cooling Method: Convection
Max Average Power (1 Minute): 80 W
...
Data Sheet
Gentec-EO offers a power detector for measuring laser powers in the range from 600W - 2500W. UP-HD series power meters can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).

Specifications

Max Average Power: 700 W
Effective Aperture: 55 mm
Spectral Range: 0.19-20um
Cooling Method: Water
Noise Equivalent Power: 45 mW
...
Data Sheet
The Gentec-EO HP Series power detector family includes HP100A-4KW-HE, HP60A-10KW-GD and HP100A-12KW-HD, HP125A-15KW-HD. The HP detectors can measure between - 100 W and 4 KW of average power for HP100A-4KW-HE & HP100A-4KW-HE-TUBE - 300 W and 10 KW of average power for HP60A-10KW-GD - 300 Wand 12 KW of average power for ...

Specifications

Max Average Power: 4000 W
Effective Aperture: 125 mm
Spectral Range: 0.19-20um
Cooling Method: Water
Data Sheet

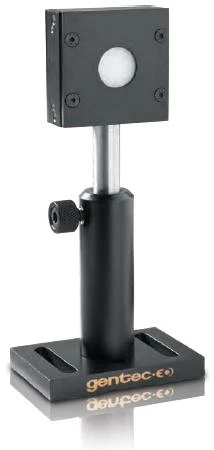

The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.  The high power surface absorber sensors are designed for use at high average power ...

Specifications

Max Average Power: 150 W
Effective Aperture: 19 mm
Spectral Range: 0.19-20um
Cooling Method: Water, Heatsink, Fan-cooled
Data Sheet
Gentec-EO PH Silicon Photo Detector for laser output power measurement in the VIS to NIR spectral range and for below 0.1W power range.

Specifications

Max Average Power: 0.04 W
Effective Aperture: 10 mm
Spectral Range: 0.35-1.08um
Cooling Method: No cooling
Data Sheet

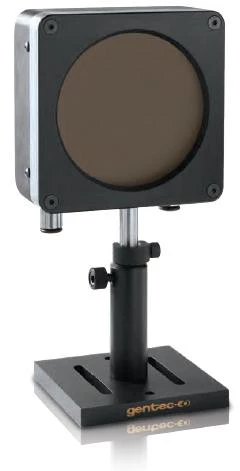

Gentec-EO offers a power detector for measuring high or super high laser powers in the range from 100W - 12,000W. HP series power meters can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).

Specifications

Max Average Power: 12000 W
Effective Aperture: 100 mm
Spectral Range: 0.19-20um
Cooling Method: Water
Data Sheet
