Description
The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.
The high power surface absorber sensors are designed for use at high average power densities. The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high power surface absorber sensors are designed for use at high average power densities.

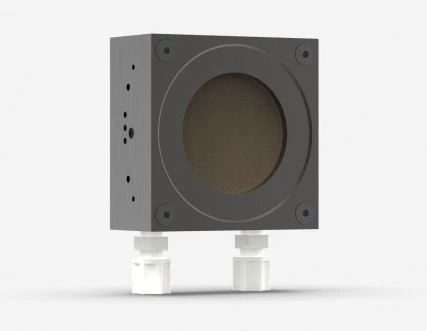

Gentec-EO Thermal Detector UP55M-500W-H12-D0
Specifications
| Max Average Power: | 500 W |
|---|---|
| Effective Aperture: | 55 mm |
| Spectral Range: | 0.19 – 20 um |
| Cooling Method: | Water, Heatsink, Fan-cooled |
| Maximum Average Power (continuous): | 500 W |
| Maximum Average Power (1 Minute): | 500 W |
| Noise Equivalent Power: | 15 mW |
| Typical Rise Time: | 2 sec |
| Typical Power Sensitivity: | 0.06 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Typical Energy Sensitivity: | 0.015 mV/J |
| Maximum Measurable Energy: | 200 J |
| Noise Equivalent Energy: | 0.25 J |
| Minimum Repetition Period: | 12 s |
| Maximum Pulse Width: | 430 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Average Power Density: | 45 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Peak Power Density: | 143 MW/cm² |
| Absorber: | H12 |
| Dimensions: | 89H x 89W x 40D mm |
| Weight: | 0.81 kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High Power Measurement: Designed to measure laser power up to 500 W, suitable for high-power applications.
- Modular Cooling Options: Comes with four different cooling modules to enhance the detector's capability in handling high power, ensuring stable operation under various conditions.
- High Performance: Features a fast rise time of 2 seconds and a high damage threshold of 45 kW/cm², making it robust for intense laser environments.
- Compact and Efficient: Despite its high-power capacity, the detector maintains a compact design, being only 32 mm thick in the 40S model, allowing for easy integration into different setups.
- Energy Measurement Mode: Capable of measuring single-shot energy up to 200 J, providing versatility for a range of laser measurement tasks.
- Smart Interface: Embedded with all the necessary calibration data for ease of use and ensuring accurate measurements.
- Wide Spectral Range: Operates effectively across a broad spectral range from 0.19 to 20 μm, accommodating a wide variety of laser types.
- High Sensitivity: Offers a typical power sensitivity of 0.06 mV/W, allowing for precise measurement of laser power.
These features make the UP55M-500W-H12-D0 an ideal choice for industries and applications requiring reliable high-power laser measurement, combining efficiency with high performance and versatility.
Applications
- Laser power measurements
- Laser optics
- Spectroscopy
- Metrology
