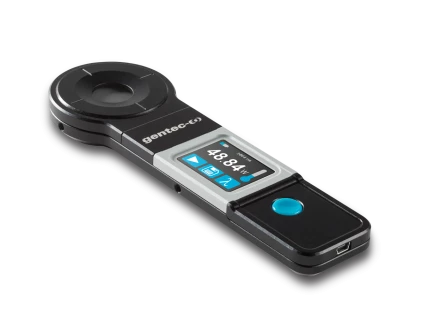

Portable Laser Power Meter PRONTO-50-W5

Name: Portable Laser Power Meter PRONTO-50-W5
Brand: Gentec-EO
Availability: InStock

Description

Product Description: The PRONTO-50-W5 and PRONTO-250 Portable Laser Probes from Gentec-EO are pocket-size laser power and energy meters with built-in display. The PRONTO-50-W5 and PRONTO-250 give accurate measurement of laser power up to 50 W and 250 W in only 5 seconds. In addition to the regular Single Shot Power (SSP) mode, The PRONTO-250-PLUS features 2 additional measurement modes: in Continuous Power (CWP) mode, the device measures power continuously up 8 W while in Single Shot Energy Mode (SSE), it measures the energy of individual pulses.

The high power surface absorber sensors are designed to be used at high average power densities. PRONTO detectors can be supplied with an optional stand and/or power supply. If the desired wavelength is outside the calibrated spectral range, you can use the “Correction Factor” function to adjust the displayed measures.

About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

Specifications

Max Average Power:	50 W
Effective Aperture:	19 mm
Spectral Range:	0.19 – 10 um
Cooling Method:	No cooling
Model:	Pronto-50-W5
Model:	Pronto-250/250-PLUS
Noise Level:	4 mW

Download Data Sheet

Features

These products all have a calibration at 1064 nm (YAG) and they also have a traceable wavelength correction to complete the calibrated spectral range. The PRONTO-250/250-PLUS laser power and energy meters have an additional calibration at 10.6 µm (CO2). The PRONTO-250-PLUS units also have an additional calibration for SSE mode.

Applications

Laser power and energy measurement in laser optics, spectroscopy, metrology, inspection, biomedical, and other applications.

Name

Work Email

Organization

Country

Your message to supplier

Add to Watchlist (My Watchlist)

Ships from:

Canada

Sold by:

Gentec-EO

On FindLight:

since 2014

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What are the additional measurement modes of the PRONTO-250-PLUS power meter?

The PRONTO-250-PLUS laser power meter features 2 additional measurement modes: in Continuous Power (CWP) mode, the device measures power continuously up 8 W while in Single Shot Energy Mode (SSE), it measures the energy of individual pulses.

What is the lifetime warranty for the PRONTO detectors?

Gentec-EO will guarantee any PRONTO detector for its lifetime, as long as it has been returned for recalibration annually, from the shipment date.

What is the measurement range of the PRONTO-50-W5 and PRONTO-250 laser power meters?

The PRONTO-50-W5 and PRONTO-250 power meters give accurate measurement of laser power up to 50 W and 250 W in only 5 seconds.

What is the PRONTO-50-W5 and PRONTO-250 Portable Laser Probes?

The PRONTO-50-W5 and PRONTO-250 Portable Laser Probes are pocket-size laser power and energy meters with built-in display.

What is the warranty for the PRONTO detectors?

The Gentec-EO thermal power detectors carry a one-year warranty (from date of shipment) against material and/or workmanship defects when used under normal operating conditions.
