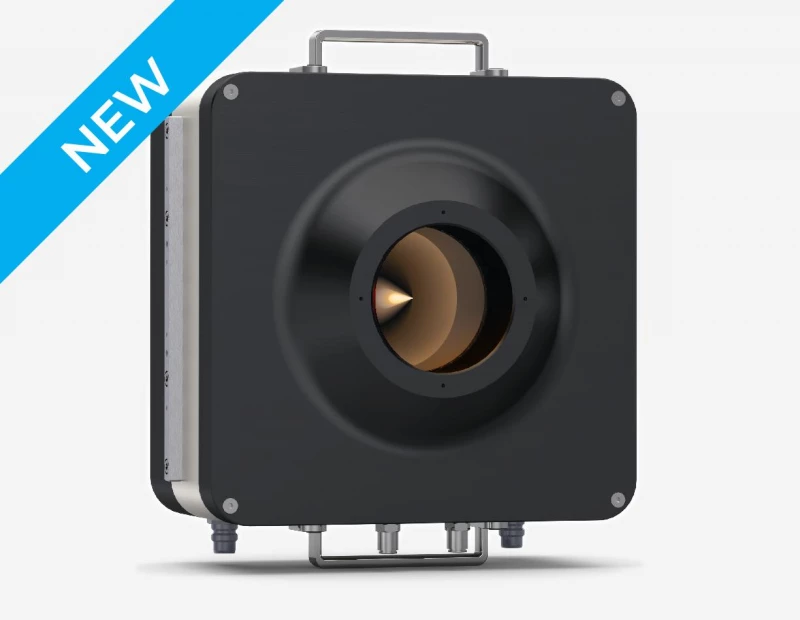

High-Power Laser Measurement Sensor: Gentec-EO HP100A-50kW-GD

Specifications

Max Average Power: 50000 W
Effective Aperture: 100 mm
Spectral Range: 0.8 – 12 um
Cooling Method: Water
Minimum Average Power: 1,000 W
Noise Equivalent Power: 200 W
Typical Rise Time: 80 sec
Power Calibration Uncertainty: ±5 %
Back Reflections: ~2.5 %
Linearity With Power: ±2 %
Linearity Vs Beam Diameter: ±2 %
Linearity Vs Beam Position: ±1.5 %
Calibrated Spectral Range: 1030 - 1080 nm
Required Cooling Flow: (18 - 25) LPM < ±1 LPM/min
Temperature Range: 15 – 25 °C
Rate Of Temperature Change: < ±1°C/min
Maximum Water Pressure: 551 kPa (80 psi)
Maximum Average Power Density: 25 kW/cm²
Data Display: Real-time, scope, needle, averaging, histogram, and statistics
Analog Output: 0-2 Volts
Serial Commands Via: USB
External Power Supply: Through USB or Gentec-EO displays & PC interfaces
Display Type: None
Dimensions: 305H x 324W x 197D mm
Document icon Download Data Sheet Download icon

Features


  • High-Power Laser Measurement: The HP100A-50KW-GD laser power sensor is designed to measure extremely high-power laser beams, with a maximum average power handling capability of 50 kW.

  • Gold Reflector Cone: Its gold reflector cone and back-reflection reducing geometry ensure that over 97% of incident light is captured, optimizing precision and accuracy.

  • Enhanced Safety: With very low back-reflections (< 2.5%), this detector provides a secure working environment when dealing with high-power lasers.

  • Robust Damage Thresholds: The gold cone design allows for exceptional damage thresholds of 25 kW/cm², ensuring durability even in demanding applications.

  • Compact Design: Measuring less than 20 cm in thickness, the detector offers a practical and space-saving solution for various setups.

  • Real-Time Monitoring: Continuous monitoring of water flow and temperature prevents overheating, guaranteeing uninterrupted cooling.

  • Customizable Design: Gentec-EO offers customization to tailor the detector to your specific needs, ensuring a perfect fit for your application.

  • Seamless Data Logging: Equipped with both DB-15 and USB connectors, the detector facilitates easy data logging and connectivity to Gentec-EO displays or PCs.

Applications


  • Laser System Manufacturers: The HP100A-50KW-GD laser power detector is an essential tool for manufacturers of high-power laser systems, providing accurate power measurement for quality control and performance optimization.

  • Metal Cutting Factories: Factories involved in cutting thick metal parts using high-power lasers can benefit from precise power measurement, ensuring efficient and reliable cutting processes.

  • Military Applications: The detector's robust design and precise measurement capabilities make it suitable for military applications, such as laser-based weaponry and defense systems.

  • Research and Development: Researchers and engineers in various fields can utilize this detector to measure and analyze high-power laser beams for a wide range of applications, from scientific experiments to material processing.

  • Industrial Applications: Beyond metal cutting, the HP100A-50KW-GD can be used in various industrial applications where high-power lasers are employed, including welding, drilling, and more.

  • Custom Laser Systems: Due to its customizable design, the detector is an ideal choice for businesses and organizations with unique laser measurement requirements. Gentec-EO can tailor the detector to meet specific application needs.


The Gentec-EO HP100A-50KW-GD laser power detector combines precision, safety, and adaptability, making it a valuable tool in industries and research fields where high-power lasers are utilized.
