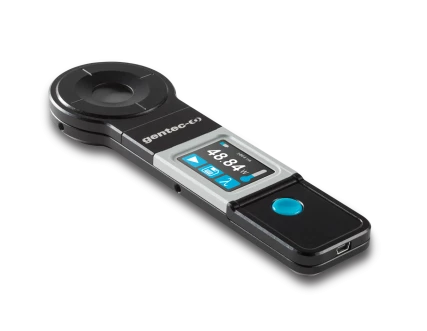

Portable Laser Power Meter PRONTO-250-PLUS

Name: Portable Laser Power Meter PRONTO-250-PLUS
Brand: Gentec-EO

Description

The PRONTO-50-W5 and PRONTO-250 Portable Laser Probes from Gentec-EO are pocket-size laser power and energy meters with built-in display.

The PRONTO-50-W5 and PRONTO-250 laser power meters give accurate measurement of laser power up to 50 W and 250 W in only 5 seconds. In addition to the regular Single Shot Power (SSP) mode, The PRONTO-250-PLUS power meter features 2 additional measurement modes: in Continuous Power (CWP) mode, the device measures power continuously up 8 W while in Single Shot Energy Mode (SSE), it measures the energy of individual pulses.

The high power surface absorber sensors are designed to be used at high average power densities. PRONTO detectors can be supplied with an optional stand and/or power supply. If the desired wavelength is outside the calibrated spectral range, you can use the “Correction Factor” function to adjust the displayed measures.

About Gentec-EO: Gentec Electro-Optics is specialized in laser beam and terahertz source measurement and analysis. Gentec-EO is an expert in the design and manufacture of light detection and measurement technologies and solutions with a 50-year history in the market. Gentec\'s offerings include laser beam profilers, detectors, power and energy meters, power and energy measurement displays, and more.

Specifications

Max Average Power:	250 W
Effective Aperture:	19 mm
Spectral Range:	0.19 – 20 um
Cooling Method:	No cooling
Voltage:	12 V
Power:	5 W
Noise Level:	10 mW

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

These power meter products all have a calibration at 1064 nm (YAG) and they also have a traceable wavelength correction to complete the calibrated spectral range. The PRONTO-250/250-PLUS have an additional calibration at 10.6 µm (CO2). The PRONTO-250-PLUS units also have an additional calibration for SSE mode.

Applications

Portable Laser Power Meter PRONTO-250-PLUS is used in laser power and energy measurements in laser optics, spectroscopy, metrology, inspection, biomedical, and other applications.

Request Quote

To: Gentec-EO
Re: Portable Laser Power Meter PRONTO-250-PLUS

Name

Work Email

Organization

Country

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: Canada
Sold by:: Gentec-EO ✓ Verified Supplier
On FindLight:: since 2014

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What applications is the PRONTO-250-PLUS laser power meter used for?

The PRONTO-250-PLUS power meter is used for laser power and energy measurements in laser optics, spectroscopy, metrology, inspection, biomedical, and other applications.

What are the additional measurement modes of the PRONTO-250-PLUS power meter?

The PRONTO-250-PLUS laser power meterfeatures two additional measurement modes: Continuous Power (CWP) mode, which measures power continuously up to 8 W, and Single Shot Energy (SSE) mode, which measures the energy of individual pulses.

What is the calibrated spectral range of the PRONTO power meters?

The PRONTO power meters have a calibration at 1064 nm (YAG) and a traceable wavelength correction to complete the calibrated spectral range. The PRONTO-250/250-PLUS also have an additional calibration at 10.6 µm (CO2).

What is the PRONTO-250-PLUS Portable Laser Power Meter?

The PRONTO-250-PLUS is a pocket-size laser power and energy meter with a built-in display that provides accurate measurement of laser power up to 250 W in only 5 seconds.

What is the warranty for the PRONTO power detectors?

The Gentec-EO thermal power detectors carry a one-year warranty (from date of shipment) against material and/or workmanship defects when used under normal operating conditions. The warranty does not cover recalibration or damages related to misuse.

Got more questions? Use the inquiry form to ask the supplier directly.
