Description
Optical Power Meter XQ5210 Overview
The XQ5210 Optical Power Meter, developed by Shenzhen OSCOM Technology Co., Ltd., represents a pinnacle of precision and innovation in optical measurement technology. This device is meticulously engineered to cater to the demanding needs of optical device testing and research applications. With its robust design and advanced features, the XQ5210 is an indispensable tool for professionals in the optical industry. At the heart of the XQ5210 is its sophisticated photodetector, which utilizes either InGaAs or Si light-receiving materials. This ensures high sensitivity and accuracy across a broad spectrum of wavelengths.
The device is equipped with automatic range switchover capabilities, allowing for seamless transitions between different measurement ranges. This feature, combined with its power measurement, insertion loss measurement, and PDL measurement capabilities, makes the XQ5210 a versatile and reliable choice for various testing scenarios. The XQ5210 is designed with user convenience in mind. It offers a single-channel benchtop light source, providing flexibility and ease of use. The device's high-speed measurement capabilities, coefficient correction, and arbitrary wavelength adjustment ensure precise and efficient testing. Additionally, the XQ5210 includes an RS232C interface, facilitating easy integration with other equipment and systems. Its stability and reliability make it particularly suitable for use in optical device factories, scientific research institutes, and other professional environments.

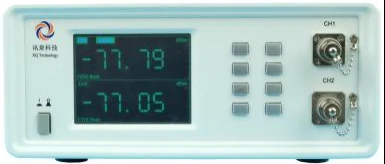

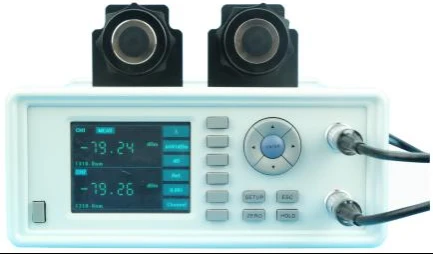

Optical Power Meter with RS232C Interface XQ5210
Specifications
| Spectral Range: | 0.85 – 1.625 um |
|---|---|
| Cooling Method: | No cooling |
| Measurement Method: | mW(linear) / dBm(Logarithmic) |
| Weight: | 2.2Kg |
| Dimensions (L×W×H): | 256×254×89mm |
| Operating Power Supply: | AC100-240V/50-60Hz/2A |
| Operating Environment Humidity: | 5% - 95%RH |
| Operating Environment Temperature: | 0 - +40℃ |
| Communication Interface: | RS-232C |
| Measurement Resolution: | Linear way: 0.01 dB / logarithmic way: 0.001mW/dB |
| Power Accuracy: | ±2% |
| Optical Input Interface: | FC/SC/ST/Universal plug/Bare fiber holder |
| Repeatability: | ±0.05dB |
| Linearity: | ±0.1dB |
| Power Measurement Range: | -70 - +10 / -50 - +26 dBm |
| Data Response Time: | ≤10ms |
| Wavelength Response Range: | 850 / 980 / 1064 / 1310 /1490/ 1550 / 1625 nm |
| PD Material: | InGaAs / Si |
Download Data Sheet
Features
- High-Performance Optical Power Meter: The XQ5210 is a standard optical power meter designed by OSCOM Technology, featuring InGaAs or Si photodetectors for precise measurements.
- Versatile Measurement Capabilities: Offers automatic range switchover, power measurement, insertion loss measurement, PDL measurement, and RS232C interface.
- Single Channel Benchtop Light Source: Provides a reliable single channel benchtop light source, ideal for various testing applications.
- Advanced Features: Includes high-speed measurement, coefficient correction, arbitrary wavelength adjustment, and optional GPIB interface for enhanced functionality.
- Wide Applied Range: Suitable for optical fiber communication tests, sensing tests, device production and testing, module production tests, system integration, and automatic optical test system construction.
- Configuration and Type Selection:
- Wavelength Range: 850/980/1064/1310/1490/1550/1625 nm
- Channel Options: Single or dual-channel
- Power Measurement Range: -70 to +10 dBm or -50 to +26 dBm
- Communication Interface: RS232C
- Testing Method: Built-in FC,
Applications
- Optical Fiber Communication Test: Ideal for testing and verifying optical fiber communication systems.
- Optical Fiber Sensing Test: Suitable for applications involving optical fiber sensors.
- Optical Fiber Device Production and Test: Essential for the production and testing of optical fiber devices.
- Optical Fiber Module Production Test: Used in the testing of optical fiber modules during production.
- Optical Fiber Communication System Integration: Facilitates the integration of optical fiber communication systems.
- Automatic Optical Test System Construction: Supports the construction of automated optical testing systems.
Frequently Asked Questions
What is the XQ5210 Optical Power Meter?
What applications is the XQ5210 suitable for?
What is the wavelength response range of the XQ5210?
What are the power measurement ranges available for the XQ5210?
What communication interface does the XQ5210 use?
What is the operating environment for the XQ5210?
What are the dimensions and weight of the XQ5210?
