Optical Power Meter
Description
Handheld Optical Power Meter YPM-8201-01

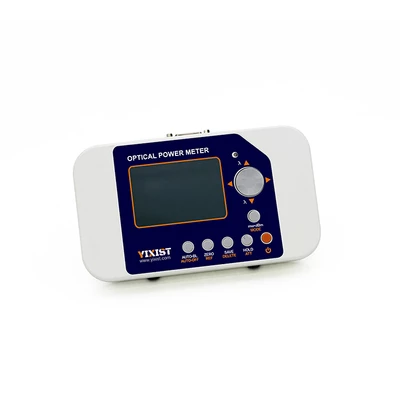

YPM-8201-01 handheld optical power meter is concise, precise, and reliable, an ideal choice for optical power measurement . It is of moderate size and equipped with a large LCD screen. It can be powered by an adapter and rechargeable battery. It is also featured powerful functions, such as automatic backlight, high-speed HD display, and real-time power measurement. YPM- 8201-01 can communicate with photodetectors, thermopile detectors, and integrating sphere detectors through digital transmission, ensuring data accuracy. It also can be connected to computers through a USB interface and calculate and display results through YSW-5002 optical power software.
Photodetector YPM-8202

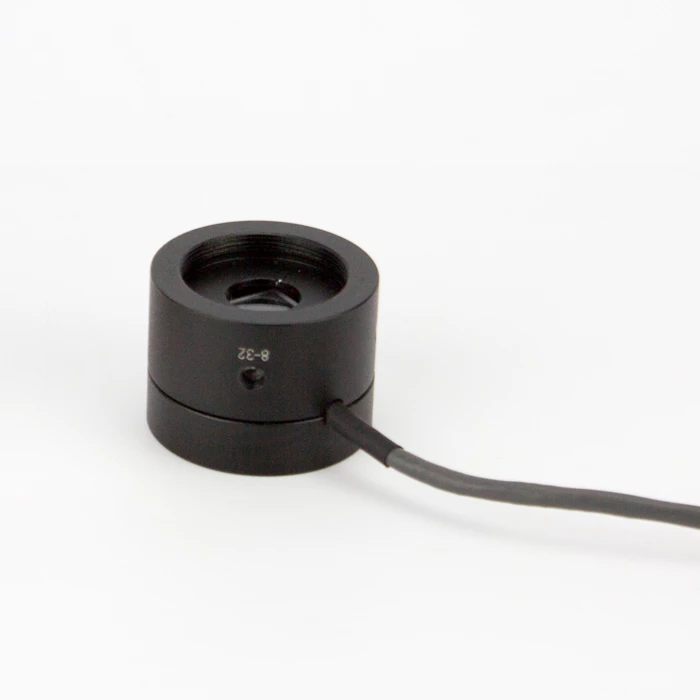

YPM-8202 series photodetector integrates A/D conversion and calibration data storage functions, m i n i m i z i n g external interference and ensuring accuracy. DS15 and USB versions can meet your specific needs. Silicon, UV-enhanced Silicon, and InGaAs detectors are available (cover 200nm to 1650nm wavelength range), the first two of which can be equipped with OD1/OD2/OD3 attenuators to expand the measurement range further. Fiber adaptors of different connectors, such as FC and SMA, are provided.
Thermopile Detector YPM-8203

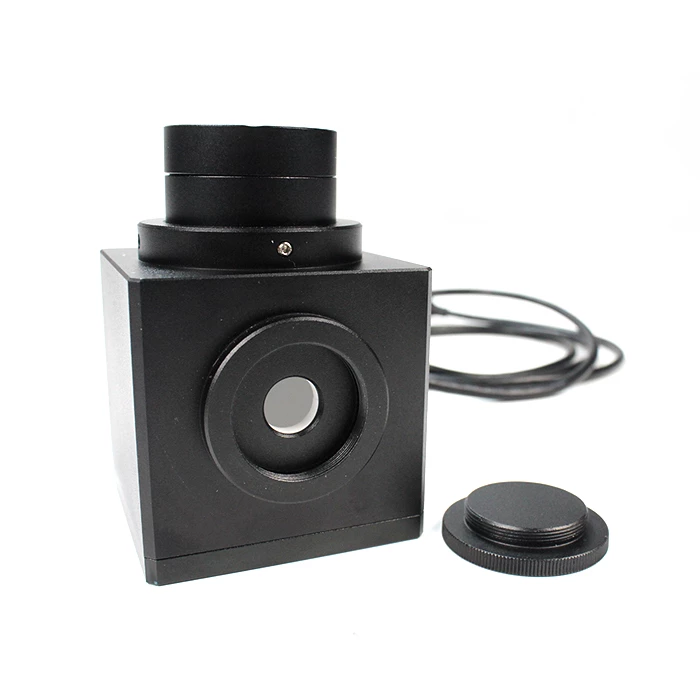

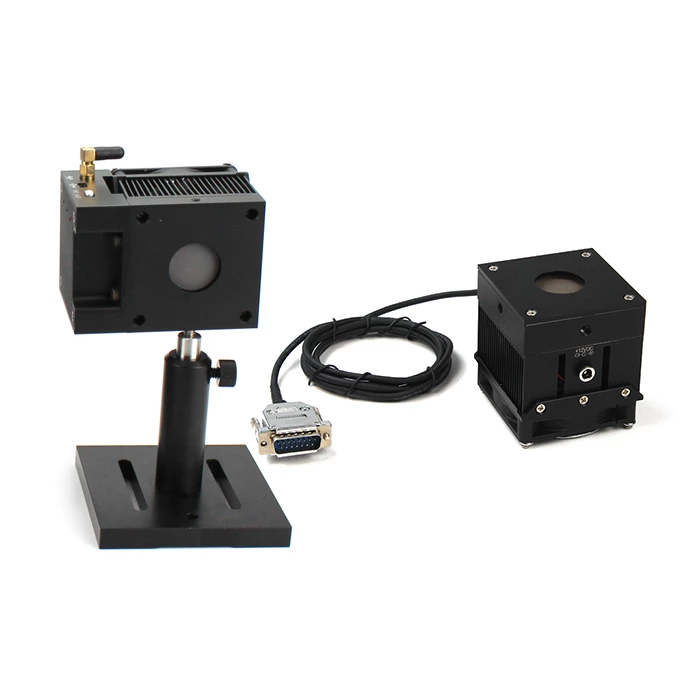

YPM-8203 series thermopile detectors can measure the absolute power in the range of 0.01W-2W, 0.05W-70W, and 0.2W- 250W. Internal EEPROM can store calibrated data. DB15 version works with YPM-8201 handheld meters; Bluetooth/USB version connects to a PC and works with YSW-5002 optical power software. The bluetooth/USB module is equipped with an output port and supports external trigger and PWM functions, creating a closed-loop system between the detector and laser.
Integrating Sphere Power Detector YPM-8205
YPM-8205 series integrating sphere power detectors have silicon and UV-enhanced silicon versions. With integrating spheres of different sizes, YPM-8205 series can cover wavelengths as wide as 200nm~1100nm. DB15 version works with YPM-8201-01 handheld meter; USB version connects to a PC and works with YSW-5002 optical power software. USB version detectors can also form a multi-channel data acquisition system through a USB hub, achieving multi-source synchronous measurement.
Optical Power Software YSW-5002
YSW-5002 optical power measurement software can be compatible with all the YIXIST optical power meters that support data acquisition. It supports Windows operating systems and covers functions such as multi-channel data acquisition, real- timeanalysis,program-controlleddetector parametersetting, external trigger control, data import, and export. Download Link： https://www.yixist.com/en/YSW-5002.htm
Optical Power Meter
Specifications |
|
|---|---|
| Max Average Power: | 10m,5 W |
| Effective Aperture: | 11.28 mm |
| Spectral Range: | 200-1650um |
| Cooling Method: | Convection |
| Model: | YPM-8201/8202/8203/8204/8205 |
| Compatible Detector: | photodetector, thermopile, integrating sphere |
| Sampling Frequency: | 20 Hz |
| Number Of Stored Data Sets: | 800 |
| Communication Interface: | USB2.0 |
| LCD Type: | 80×54mm LCD segment code screen |
| Battery Type: | 2 x 1.2v rechargeable batteries (not supplied) |
| External Power Supply: | Input: 100 - 240 VAC; Output: 6VDC, 1A |
| Auto Power Off: | 10 mins |
| Adjustable Backlight: | Support |
| Weight(g): | 350, 500 |
| Size(mm): | 210×120×36, |
| Material: | Si, Si-UV, InGaAs, Thermopile |
| Wavelength Range: | 200-1650nm, 19-20um |
| Power Range (without Attenuator ): | 100pW - 10mW -70dBm - +10dBm, 100pW - 1mW* -70dBm - 0dBm* |
| Power Range(W): | 0.01-250W, 100nW-3W, 100nW-200mW |
| Maximum Average Power (typical Value): | 2W, 50W (continuous)/70W (<1 minute), 200W (continuous)/ 250W (<1 minute) |
| Maximum Average Power Density (without Attenuator ): | 10mW/cm², 1mW/cm², 10kW/cm² (1064nm/10W/CW), 3.2kW/cm² (10640nm/10W/CW) |
| Maximum Energy Density: | 5J/cm² (1064nm,360us,5Hz), 1J/cm² (1064nm,7ns,10Hz), 0.6J/cm² (532nm,7ns,10Hz), 0.3J/cm² (266nm,7ns,10Hz) |
| Calibration Uncertainty: | ±3%@1064nm, 10640nm/±5%@190-20000 nm, ≤±5% |
| NEP(W/√HZ): | 4.5E-13 , 3.9E-14, 1.40E-14, 01.2E-13 |
| Response Time: | 0.2us, 2us, 5.9us, 3s |
| Effective Diameter(cm): | 1.128, 0.3, 10, 19, 25 |
| Effective Area(cm²）: | 1, 0.071 |
| Uncertainty(%): | ±5, ±2, ≤±0.5% |
| Linearity(%): | ±0.5, ±2, ≤±2 |
| Uniformity(%): | ±2 |
| Cable(m): | 1.5 |
| Fixing Hole: | Universal 8-32 / M4 |
| Dimension(mm): | φ38 x28 |
| Weight(g): | 105 |
| Operating Temperature Relative Humidity: | 5°C-50°C,<70% RH |
| Cooling: | Air-cooled |
| Dimension (L*W*D): | 70mm×70mm×70mm (DB15 version), 97mm×70mm×70mm (Bluetooth/USB version), 62mm x 62mm x 85mm |
| Integrating Sphere Diameter: | 2 inch |
| Integrating Sphere Material: | PTFE |
| Laser Inlet(mm): | 12 |
| Connector For Spectrometer: | SMA905 interface |
| Fixing Hole: | M4 / M6 |
Features
Handheld Optical Power Meter YPM-8201-01
Multipurpose design, suitable for both indoor and field use
Large Storage — can store > 800 data sets
Powered by an adaptor and rechargeable batteries
Compatible with digital and analog detectors
Real-time monitoring, over-range alarm
W,dBm,dB, three units display
Automatic range switching, automatic background light, automatic power off
Datalogging with YSW-5002 optical power software
Photodetector YPM-8202
DB15 version works with a handheld meter
USB version connects to a PC and uses optical power software
Multi-wavelength measurement, high accuracy, fast response
Integrated calibration data storage and A/D conversion
Removable attenuator with calibration funtion extends measurement range
Different fiber adaptors adjust to diverse connectors types.
SDK and in-depth customization
Thermopile Detector YPM-8203
Different versions cover detection in multiple power ranges
Support calibration data storage.
DB15 and bluetooth/USB versions available
Integrating Sphere Power Detector YPM-8205
Different integrating spheres expand the detection range Multi-wavelength measurement
Integrated calibrated data storage
High accuracy and fast response
Silicon and UV silicon detector options
SDK and in-depth customization
Applications
Optical power measurement
Thermopile Detector YPM-8203 :Optical power measurement of Nd:YAG, CO2, YAG, holmium lasers, high power laser diodes, and excimer laser.
