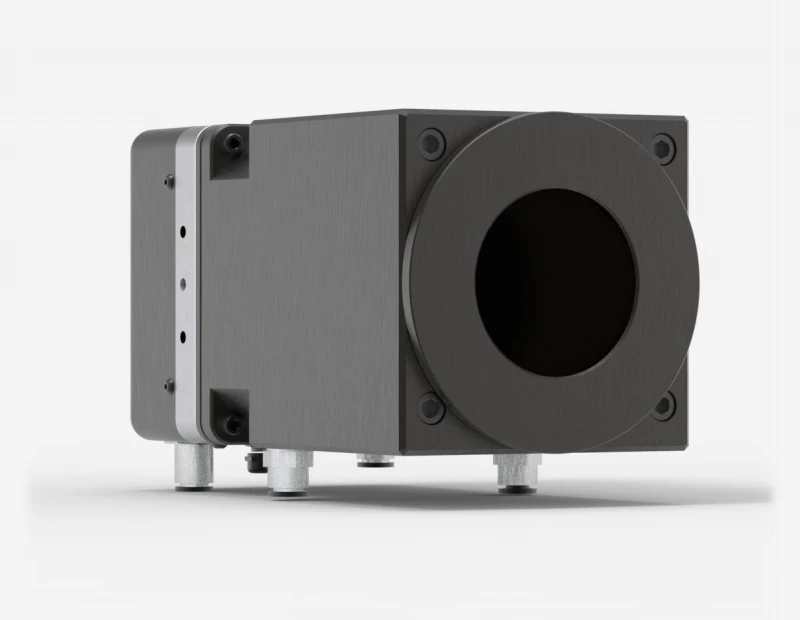

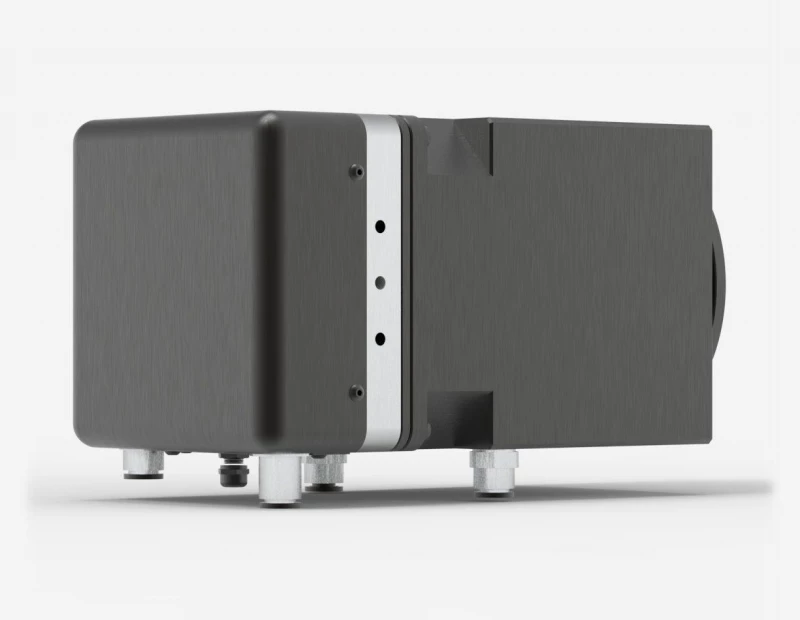

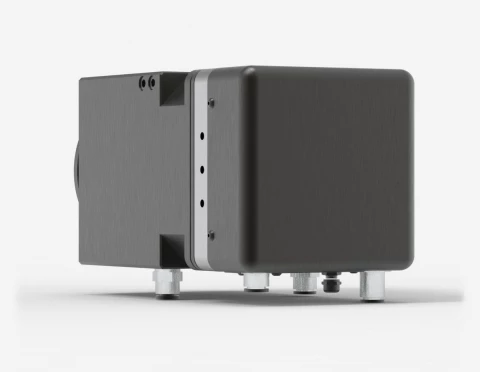

HP100A-12KW-HD-TUBE-IMP-D0 High Power Detector for Laser Power Measurement
Description
The HP100A-12KW-HD-TUBE-IMP-D0 is a high-power laser power detector designed to measure continuous laser power up to 12,000 W, with an extension tube to reduce back reflections. Ideal for high-power laser applications, it can handle up to 30 kW with standard models, and custom models are available for even higher power handling. The detector features a large aperture of up to 280 mm to accommodate large laser beams, making it perfect for industrial and research applications.
With a spectral range from 0.193 to 20 μm and a noise equivalent power of just 10 W, this detector ensures stable readings even with variations in water cooling temperature. It offers calibration for both YAG and CO2 wavelengths with an uncertainty of ±5%. Additionally, the HP100A is equipped with both DB-15 and USB 2.0 outputs, providing seamless integration with Gentec-EO monitors and PCs. With award-winning technology, it is trusted for precision and reliability in high-power laser measurement systems.
HP100A-12KW-HD-TUBE-IMP-D0 High Power Detector for Laser Power Measurement
Specifications |
|
|---|---|
| Max Average Power: | 12000 W |
| Effective Aperture: | 125 mm |
| Spectral Range: | 0.19 – 20 um |
| Cooling Method: | Water |
| Minimum Average Powe: | 300 W |
| Noise Equivalent Power: | 10 W |
| Typical Rise Time: | 9 s |
| Power Calibration Uncertainty: | ±5 % |
| Repeatability: | ±2 % |
| Back Reflections: | < 4 % |
| Linearity With Power: | ±1.5 % |
| Linearity Vs Beam Diameter: | ±1 % |
| Linearity Vs Beam Position: | ±1.7 % |
| Required Cooling Flow: | (6 - 10) LPM < ±1 LPM/min |
| Temperature Range: | 15-25 ℃ |
| Rate Of Temperature Change: | < ±3°C/min |
| Maximum Water Pressure: | 413 kPa (60 psi) |
| Maximum Average Power Density: | 16 kW/cm² |
| External Power Supply: | Through USB or Gentec-EO displays & PC interfaces |
| Aperture Diameter: | 70 mm |
| Absorber: | HD |
| Dimensions: | 127H x 127W x 230D mm |
| Weight: | 7.5 g |
Features
- High Power Capacity: Capable of measuring laser power up to 12,000 W
- Extension Tube: Equipped with an extension tube to minimize back reflections
- Wide Spectral Range: Covers wavelengths from 0.193 to 20 μm
- Fast Response Time: 9 seconds typical rise time for efficient data acquisition
- Traceable Calibration: NIST-traceable calibration for consistent and accurate measurements
- Water Cooling: Utilizes water for cooling with specified water flow and temperature range
- Damage Thresholds: Engineered to handle high average power density, ensuring durability
- BLU Wireless Output: Award-winning technology for wireless data retrieval up to 30 m distance
Applications
- Industrial Laser Systems: Suitable for high-power laser systems in industrial applications
- Research and Development: Ideal for accurate laser power measurements in research environments
- Enclosed or Hard-to-Reach Areas: The BLU wireless output facilitates measurements in challenging spaces
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO HP100A-12KW-HD-TUBE-IMP-D0 can measure up to 12,000 W of continuous power.
The maximum water pressure that the Gentec-EO HP100A-12KW-HD-TUBE-IMP-D0 can handle is 413 kPa (60 psi).
The power calibration uncertainty of the Gentec-EO HP100A-12KW-HD-TUBE-IMP-D0 is ±5%.
The required cooling flow for the Gentec-EO HP100A-12KW-HD-TUBE-IMP-D0 is between 6-10 LPM, with a tolerance of ±1 LPM/min.
The spectral range of the Gentec-EO HP100A-12KW-HD-TUBE-IMP-D0 is 0.19 - 20 μm.
