Optical Power Meter Series

Description

BOX Optronics supplies versatile benchtop and handheld optical power meters covering multiple measurement ranges from 1 nW up to 10 W.

Available detectors include Si and InGaAs photodiodes for 400–1100 nm, 900–1650 nm and 1100–2200 nm wavelength bands, with optional integrating sphere design.Featuring ultra-high 0.001 dB resolution and ±5% measurement uncertainty, the system supports real-time data statistics including max, min and average values.

Equipped with USB, DB9 and analog BNC/SMA outputs, it connects to PC software for numerical or graphic data display. Options of FC/BFA fiber adapters and 1.5m detector cables suit optical component testing, laser calibration and laboratory experiments.

Specifications

Max Average Power:	Not Specified
Effective Aperture:	Not Specified
Spectral Range:	Not Specified
Cooling Method:	Other
Operating Wavelength:	400~1100nm/900~1650nm/1100~2200nm
Optical Aperture:	Ф12mm
Measurement Range:	-20~+40(10μW~10W)/-60~+10(1nW~10mW)
Measurement Resolution:	0.001dB
Measurement Uncertainty:	±5%
Data Sampling Interval:	0.1~1(Configurable) s
Operating Temperature:	-5~+55°C
Humidity Range:	0~70%

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

High dynamic range;
High precision;
Handheld and Desktop;
Multi-channel.

Applications

Optical device testing;
Laser power testing;
Optical experiments.

Request Quote

To: Shenzhen Box Optronics Technology Co.,Ltd.
Re: Optical Power Meter Series

Name

Work Email

Title

Organization

Country

Phone

Qty.

Your message to supplier

FAST RESPONSE

Thank you, your message was sent successfully.

Ships from:: China
Sold by:: Shenzhen Box Optronics Technology Co.,Ltd. ✓ Verified Supplier

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What photodiode materials and spectral coverage are available for your detector heads?

Si and InGaAs photodiodes are adopted, covering 400–1100 nm, 900–1650 nm and 1100–2200 nm respectively, with optional integrating-sphere configuration.

What are the core metrology indicators for the series?

Uniform 0.001 dB resolution and ±5% typical measurement uncertainty across all calibrated probes.

What form factors and channel configurations do the host units provide?

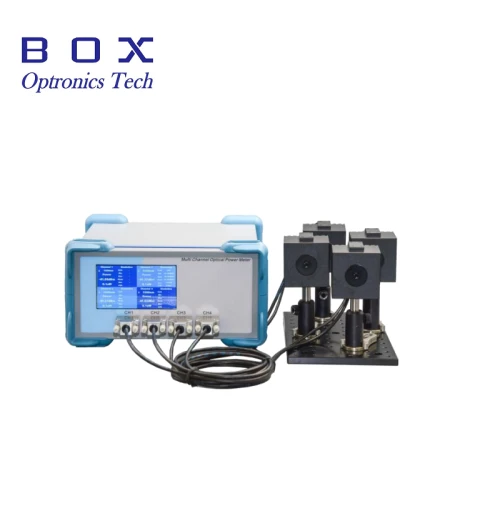

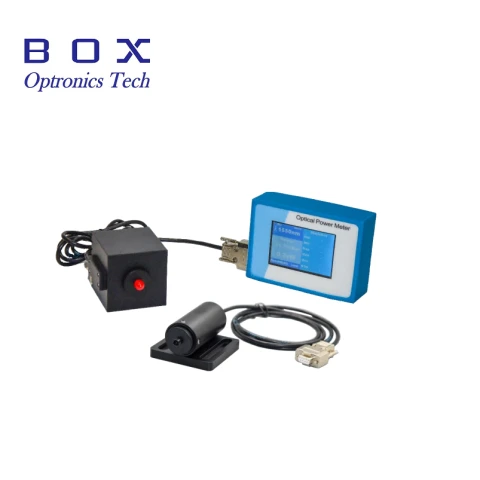

Benchtop 4-channel (PM-MC) and single-channel handheld (PM-SC) modular hosts are available for flexible setup.
