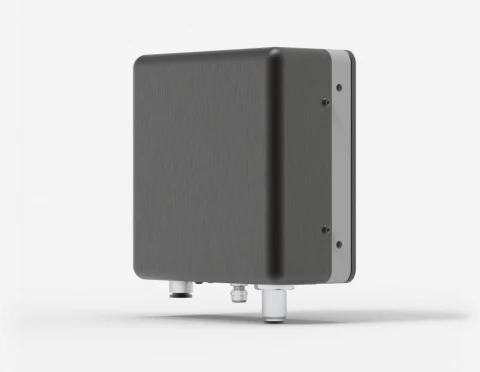

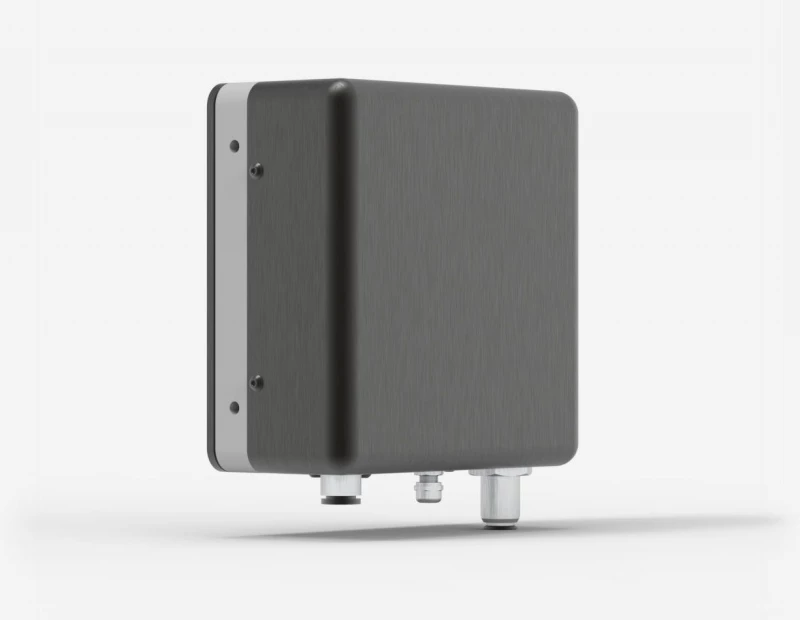

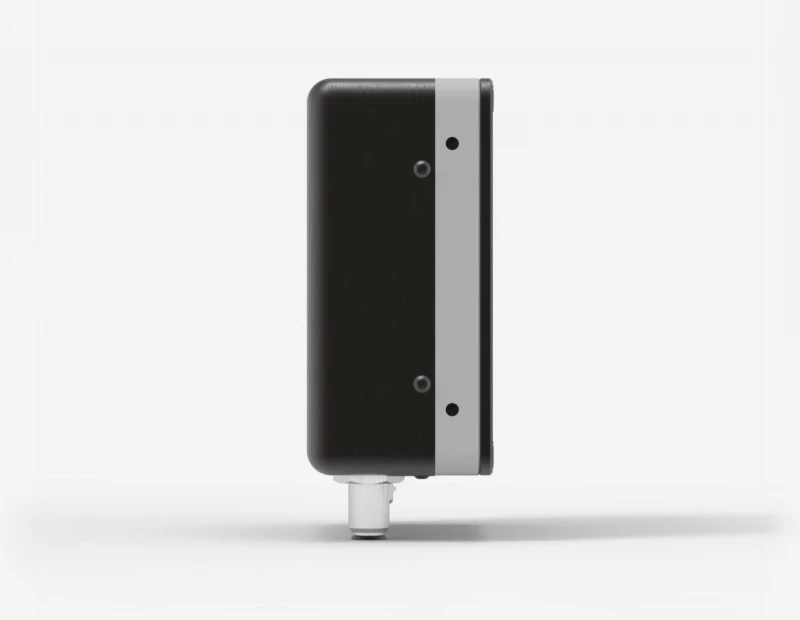

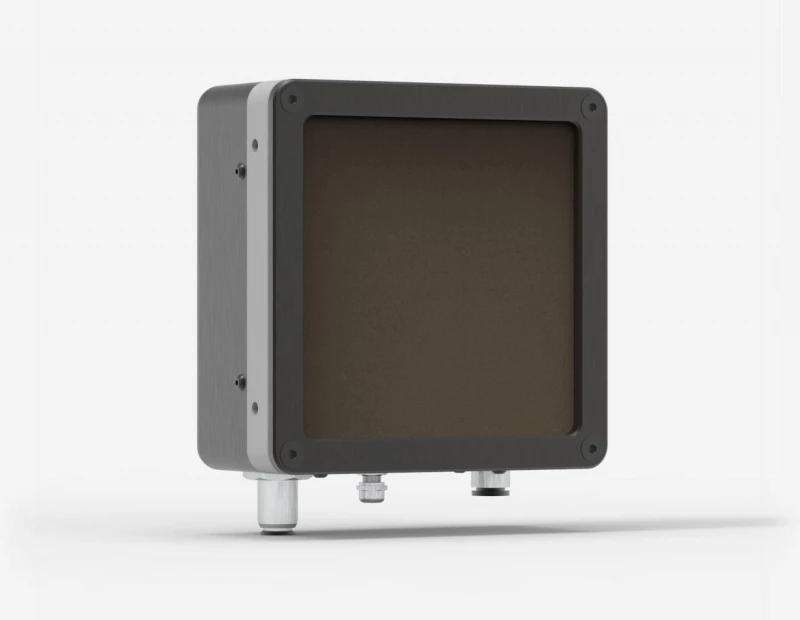

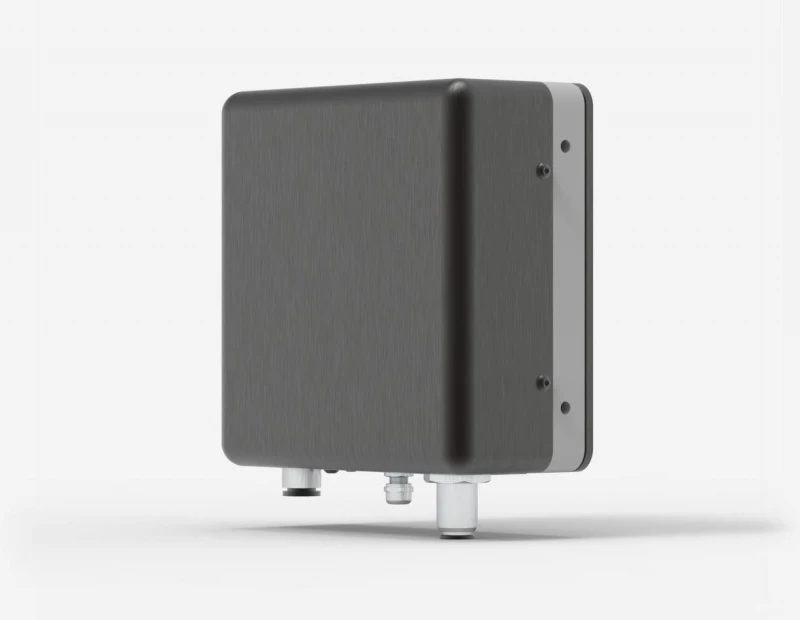

HP125A-15KW-HD-IMP-D0 High Power Detector for Laser Power Measurement
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
HP125A-15KW-HD-IMP-D0 is a high-performance laser power detector designed to measure laser power up to an impressive 15,000 watts. This robust device is engineered to handle substantial power levels, making it an essential tool for professionals working with high-power lasers. Its ability to manage up to 30 kW of continuous power with standard models ensures that it can meet the demands of even the most challenging applications. For those requiring even higher power handling, custom models are available, providing flexibility and adaptability to specific needs.
One of the standout features of this laser power detector is its stability in reading. Unlike other high-power water-cooled meters on the market, this detector is less sensitive to variations in water cooling temperature. This stability ensures consistent and reliable measurements, which are crucial for precision work in laser applications. The large aperture of up to 280 mm accommodates even the largest laser beams, making it versatile for various laser types and sizes. For specialized requirements, larger apertures with different shapes can be requested, further enhancing its adaptability.
Calibration is another area where this detector excels. It can be calibrated at YAG and CO2 wavelengths with a calibration uncertainty of +/- 5%, ensuring accurate and dependable measurements across a broad spectral range. The device also offers the convenience of a direct USB connection to a PC, alongside a DB-15 connector for use with a Gentec-EO monitor. This dual connectivity option provides flexibility in data management and integration with existing systems.
Recognized for its innovative design, the HP-BLU series, which includes this detector, has been awarded for excellence by the optics and photonics community. This accolade underscores the advanced technology and reliability that users can expect from the this power detector. With its award-winning technology, stable performance, and versatile calibration options, this high-power detector is a valuable asset for any professional working with high-power lasers.
HP125A-15KW-HD-IMP-D0 High Power Detector for Laser Power Measurement
Specifications |
|
|---|---|
| Max Average Power: | 15000 W |
| Effective Aperture: | 125 mm |
| Spectral Range: | 0.19 – 20 um |
| Cooling Method: | Water |
| Minimum Average Power: | 500 W |
| Noise Equivalent Power: | 15 W |
| Typical Rise Time: | 15 s |
| Power Calibration Uncertainty: | ±5 % |
| Repeatability: | ±2 % |
| Back Reflections: | ~ 15 % |
| Linearity With Power: | ±2 % |
| Linearity Vs Beam Diameter: | ±1 % |
| Linearity Vs Beam Position: | ±1 % |
| Required Cooling Flow: | (8 - 10) LPM < ±1 LPM/min |
| Temperature Range: | 15-25 °C |
| Rate Of Temperature Change: | < ±3°C/min |
| Maximum Water Pressure: | 413 kPa (60 psi) |
| Maximum Average Power Density: | 16 kW/cm² |
| External Power Supply: | Through USB or Gentec-EO displays & PC interfaces |
| Aperture Width: | 125 mm |
| Aperture Height: | 125 mm |
| Absorber: | HD |
| Dimensions: | 153H x 153W x 70D mm |
| Weight: | 5 kg |
Features
- High Power Capacity: Capable of measuring laser power up to 15,000 W
- Advanced Cooling: Utilizes water for efficient cooling with specified water flow and temperature range
- Wide Spectral Range: Covers wavelengths from 0.193 to 20 μm for versatile applications
- Damage Thresholds: Engineered to withstand high average power density for extended durability
- BLU Wireless Output: Award-winning technology for wireless data retrieval up to 30 m distance
- Traceable Calibration: NIST-traceable calibration for consistent and accurate measurements
- Fast Response Time: 15 seconds typical rise time for efficient data acquisition
- High Back Reflection Tolerance: Designed to handle ~15% back reflections for enhanced performance
- Linear Performance: High linearity with power, beam diameter, and beam position for precise measurements
Applications
- Industrial Laser Systems: Ideal for high-power laser systems in industrial applications
- Research and Development: Ensures accurate laser power measurements in research and development environments
- Enclosed or Hard-to-Reach Areas: The BLU wireless output facilitates measurements in challenging spaces
Frequently Asked Questions
This detector can handle up to 15,000 W of continuous power, with standard models available for up to 30 kW.
The power calibration uncertainty for the detector is ±5%.
The required cooling flow is between 8 to 10 LPM with a temperature range of 15 – 25 °C and a maximum water pressure of 413 kPa (60 psi).
The aperture size of this detector is 125 mm in width and 125 mm in height.
Yes, it can be connected directly to a PC via a USB2.0 output.
The spectral range of the HP125A-15KW-HD-IMP-D0 detector is from 0.193 to 20 μm.
The HP125A-15KW-HD-IMP-D0 uses an HD absorber.
