Description

Unlock the full potential of laser measurement with the PRONTO-250-FLEX Laser Power Meter, the latest innovation from Gentec Electro-Optics. Engineered for precision, versatility, and convenience, this portable laser power meter is an essential tool for professionals in scientific research, industrial maintenance, and laser system diagnostics.

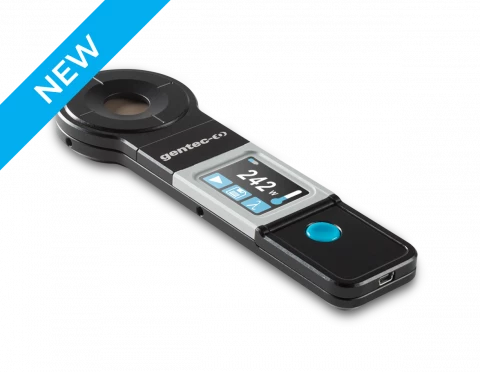

PRONTO-250-FLEX Portable Laser Meter: Customizable, NIST-Calibrated for Versatile Power Measurements

Visit the Gentec-EO Store

Specifications

Max Average Power: 250 W
Effective Aperture: 19 mm
Spectral Range: 0.193 – 20 um
Cooling Method: No cooling
Maximum Allowable Casing Temperature: 65 °C
Mounting Holes: 2 x 8-32
Weight: 0.21 kg
Dimensions: 59.0W x 181.4L x 17.0D mm
Absorber Type: H9
Aperture Diameter: 19 mm
Data Storage: 50,000 pts
Display Type: Touch Screen Color LCD
Display Size: 28.0 x 35.0 mm (128 x 160 pixels)
Display Resolution: 1 mW
Battery Life: 17 hours or 4,200 measurements
Battery Type: Rechargeable Li-ion
Minimum Average Power: 0.5 W
Maximum Average Power Density: 45 kW/cm²
Maximum Average Power (Continuous): 8 W
Energy Calibration Uncertainty: ±5 % (with
Maximum Pulse Width: 88 ms
Minimum Repetition Period: 4 s
Noise Equivalent Energy: 60 mJ
Maximum Measurable Energy: 25 J
Exposure Time: 5 s
Power Calibration Uncertainty: ±3 %
Typical Rise Time: 1.5 s
Noise Equivalent Power: 10 mW

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Broad Range Measurement: Whether you're dealing with low-intensity lasers or high-power beams, the PRONTO-250-FLEX laser power meter accurately measures laser power from 0.5 W to a robust 250 W, ensuring versatility across a wide range of applications.
  • Customizable Calibration Options: Tailor your device with calibration options to suit your specific needs. The default calibration covers visible to NIR wavelengths (248 nm to 2.5 µm), with additional options for CO2 lasers (10.6 µm) and precise energy measurements.
  • NIST-Traceable Accuracy: Confidently rely on measurements thanks to NIST-traceable calibration. This feature guarantees that your readings align with international measurement standards, ensuring accuracy and reliability in your data.
  • User-Friendly Interface: A touchscreen color LCD provides an intuitive user experience, simplifying the measurement process. With a few touches, you can effortlessly capture and analyze data.
  • Portable and Durable Design: Designed for on-the-go use, the compact size of this Pronto laser power meter fits easily in your pocket, while the protective casing ensures durability in various environments.
  • Advanced Data Capabilities: Log and transfer data seamlessly to your PC via USB. This feature enhances data management and facilitates detailed analysis.
  • Hands-Free Operation: The integrated threaded holes allow for easy mounting on optical stands, enabling stable, hands-free operation during measurements.

Applications

This laser power meter is ideal for research labs, industrial settings, and educational purposes. The PRONTO-250-FLEX power meter is compatible with a range of laser types, offering a one-stop solution for diverse laser measurement needs.

Enhance your measurement accuracy and efficiency with the PRONTO-250-FLEX Laser Power Meter.

Frequently Asked Questions

What is the measurement range of the PRONTO-250-FLEX laser power meter?
The PRONTO-250-FLEX can measure laser powers from as low as 0.5 W to as high as 250 W, accommodating a wide variety of laser applications.
Can the PRONTO-250-FLEX power meter be calibrated for CO2 lasers?
Yes, it offers an additional calibration option “C” specifically for CO2 lasers operating at 10.6 µm, ensuring precise measurements for this wavelength.
How does the PRONTO-250-FLEX ensure accuracy?
The device features NIST-traceable calibration, ensuring its measurements align with international standards for accuracy and reliability.
Is the PRONTO-250-FLEX laser power meter user-friendly?
Absolutely, it boasts an intuitive touchscreen color LCD for ease of use, allowing measurements with just the touch of a button.
What are the data storage and transfer capabilities of the PRONTO-250-FLEX?
It can store up to 50,000 data points and facilitates easy data transfer to a PC via USB, enhancing data management and analysis.
Can the PRONTO-250-FLEX be used hands-free?
Yes, it can be placed on a flat surface or mounted on optical stands using the integrated threaded holes, enabling stable, hands-free operation.
What is the battery life of the PRONTO-250-FLEX?
The device has a rechargeable Li-ion battery, offering up to 17 hours of operation or 4,200 measurements when the brightness is set at 25%.

Got more questions? Use the inquiry form to ask the supplier directly.
