High-Precision Laser Power & Energy Monitors

Gentec-EO offers a single channel power monitor. UNO\'s compact, versatile design makes it an ideal choice in industrial light measurement applications. This PC-Based monitor is compatible with thermopile and pyroelectric detectors.

Specifications

Detector Compatibility: Photodiode, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...

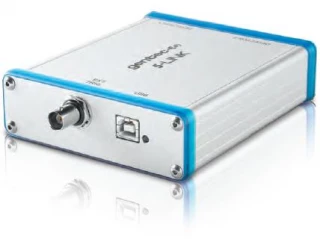

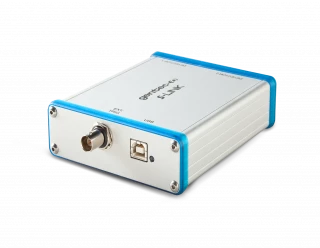

Introducing the S-LINK series by Gentec-EO, the ultimate solution for precision power and energy monitoring in laser systems. Available in both single-channel (S-LINK-1) and dual-channel (S-LINK-2) configurations, these monitors seamlessly integrate with your PC, offering unmatched versatility and ease of use. Equipped with the ...

Specifications

Detector Compatibility: Pyroelectric, Thermopile
Min Measurable Energy: <100 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: < 10 uW
Max Measurable Power: <100 kW
...
Gentec-EO presents its sophisticated lineup of S-LINK energy and power monitors, available in both 1 and 2 channel configurations, specifically designed for seamless integration with PC systems. These monitors stand out for their compact and versatile design, making them perfectly suited for a broad spectrum of industrial light ...

Specifications

Detector Compatibility: Pyroelectric, Thermopile
Min Measurable Energy: <100 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: < 10 uW
Max Measurable Power: <100 kW
...

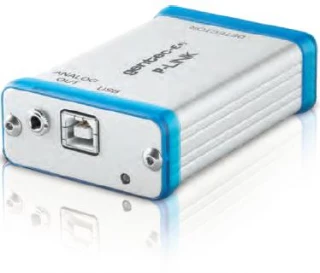

Gentec-EO introduces the P-LINK series, a line of sophisticated PC-based power monitors, available in both 1 and 4 channel configurations. Engineered for precision and flexibility, the P-LINK monitors are the perfect tools for a wide array of industrial light measurement tasks. With their compact and adaptable design, they seamlessly ...

Specifications

Detector Compatibility: Photodiode, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <10 W
...
Gentec-EO offers a 1 and 2 channel PC-based energy and power monitors. S-LINK compact, versatile design make it an ideal choice in industrial light measurement applications. This PC-Based monitor is compatible with thermopile and pyroelectric detectors.

Specifications

Detector Compatibility: Pyroelectric, Thermopile
Min Measurable Energy: <100 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: < 10 uW
Max Measurable Power: <100 kW
...
The Gentec-EO P-LINK series redefines the standards of laser power monitoring with its state-of-the-art 1 and 4 channel PC-based power monitors. Designed to cater to the intricate needs of both research and industrial sectors, these monitors offer unparalleled accuracy and versatility. Compatible with a wide array of power ...

Specifications

Detector Compatibility: Photodiode, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <10 W
...
Gentec-EO's P-LINK series revolutionizes power monitoring with its 1 and 4 channel PC-based power monitors, designed to meet the diverse needs of beam diagnostics and light measurement. The P-LINK and P-LINK-4 models stand out with their ability to interface seamlessly with all types of power detectors, including thermopiles and the ...

Specifications

Detector Compatibility: Photodiode, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <10 W
...
Gentec-EO offers a single channel PC-based universal energy and power monitor. M-LINK\'s compact and versatile design make it an ideal choice for industrial light measurement applications.  This PC-Based monitor is compatible with ALL types of detectors - including thermopiles, pyroelectrics and photo detectors - for both power ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: <100 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...
The Gentec-EO P-LINK USB series elevates laser power monitoring to new heights with its cutting-edge, PC-based power monitor. Tailored specifically for professionals in both research and industrial environments, this single-channel monitor epitomizes precision and user-friendliness. Engineered for seamless compatibility with a broad ...

Specifications

Detector Compatibility: Photodiode, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <10 W
...

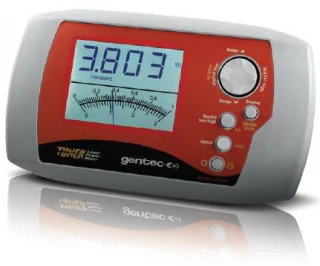

Gentec-EO offers TUNER - a single channel power monitor with a tuning needle. TUNER is compatible with thermopile sensors and photo detectors. The versatile user interface, and optical specifications make it an ideal choice for scientific and industrial laser power measurement applications.

Specifications

Detector Compatibility: Photodiode, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <100 pW
Max Measurable Power: <100 kW
...

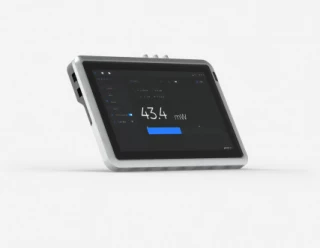

Gentec-EO offers a single channel, touch screen energy and power monitor compatible with pyroelectric and thermopile sensors and photo detectors. Maestro\\\'s touch screen design and versatile user interface, and optical specifications make it an ideal choice for scientific and indutrial light measurement applications.

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: <100 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...

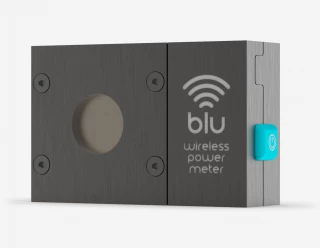

The BLU is an innovative embedded wireless interface designed to streamline power measurement tasks. It is exclusively available as a detector output option, offering convenient and efficient connectivity for your power and energy measurement needs. With its user-friendly mobile application and versatile measurement parameters, the ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile, Fiber, Integrating Sphere, Microbolometer
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
...
The QUAD-4TRACK is an advanced Beam Position Measurement system. It is used with the Pulse Track Applications Software, which creates a full featured data acquisition system for measuring and displaying laser energy and beam position.

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: Other
Max Measurable Energy: <100 mJ
Min Measurable Power: <1 mW
Max Measurable Power: <1 W
...
MIRO ALTITUDE is Gentec-EO’s newly designed flagship meter for reading laser power and energy measurements. This newly designed laser beam measurement instrument will help engineers and service technicians increase their productivity thanks to several new features in both hardware and software. MIRO ALTITUDE ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile, Other
Min Measurable Energy: <10 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...

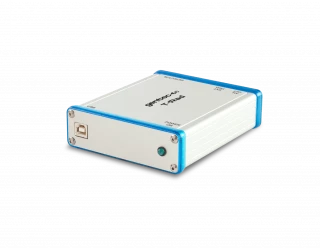

The T-RAD-ANALOG is an analog (BNC) power module designed to interface with THZ-B heads, making it compatible with oscilloscopes and lock-in amplifiers. This module is a crucial component for measuring and analyzing optical power accurately.

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...
The Gentec APM (D) is an analog power module designed to seamlessly interface with -B heads, providing a reliable connection to oscilloscopes and lock-in amplifiers. This versatile module enhances the functionality of power measurement setups, offering precise data integration and compatibility with various instruments. With robust ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...
The U-LINK (RS-232) is a single-channel PC interface designed for precise power and energy measurement. This versatile interface, with RS-232 output, offers comprehensive control and data acquisition capabilities through the user-friendly PC-Gentec-EO software. It is a valuable tool for professionals in need of accurate measurement ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...
The MACH 6 is a high-speed joulemeter designed to measure every pulse at up to 200 kHz with exceptional precision. It offers 12-bit digital accuracy and can capture up to 4 million pulses in real-time. This instrument sets the standard for speed and accuracy in joulemeter technology and is compatible with a range of fast energy ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Other
Min Measurable Energy: <10 pJ
Max Measurable Energy: <10 mJ
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
...
The U-LINK (USB) is a versatile PC interface designed for precise power and energy measurements. With a single-channel USB output, it offers exceptional performance and flexibility for a wide range of applications. This universal meter is compatible with various detectors, and its advanced features make it a valuable tool for ...

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
...
The dB-Meter measures power (not calibrated), power stability and power changes across a wide dynamic range with high accuracy. A customer defined semiconductor light source can be built in for quick and easy testing of passive components or local fiber loops besides the operation with external optical sources (780-1650 nm). The data ...

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <1 nW
Max Measurable Power: <1 mW
...
EIT UVICURE PLUS II UVA MID RANGE RADIOMETER
Ellsworth Adhesives
EIT Uvicure Plus II UVA Mid Range Power Radiometer is an electro-optic radiometer that is designed to measure UV energy and irradiance. It offers adjustable sampling rates, easy to use software, reference modes, and a choice of one (UVA, UVA2, UVB, UVC, UVV) EIT wavelength bands.

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
...
EIT UVICURE PLUS II UVA HIGH POWER RADIOMETER
Ellsworth Adhesives
EIT Uvicure Plus II UVA High Power Radiometer is an electro-optic radiometer that is designed to measure UV energy and irradiance. It offers adjustable sampling rates, easy to use software, reference modes, and a choice of one (UVA, UVA2, UVB, UVC, UVV) EIT wavelength bands.

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Power: Not Applicable
Energy Monitor Accuracy: Not Applicable
Power Monitor Accuracy: Not Applicable
DYMAX ACCU-CAL 50-LED RADIOMETER 40505 WITH ADAPTER KIT
Ellsworth Adhesives
Consistent light curing requires periodic monitoring of light energy intensity and dosage levels. The ACCU-CALTM 50-LED radiometer is simple to operate and offers accurate measurement of curing energy. The ACCU-CALTM 50-LED can measure energy levels emitted from lightguides (3 mm, 5 mm, and 8 mm), BlueWave® QX4TM LED wands, and ...

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
...
MPO Power Meter
M2 Optics Inc
The MPO Power Meter from M2 Optics is an easy-to-use device that was designed to save both time and money when checking optical power levels in multi-fiber cables.

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: Not Applicable
Energy Monitor Accuracy: Not Applicable
...
Fiber Optic Power Meters
M2 Optics Inc
For optical power measurements in the field, the Fiber Optic Power Meter (FOPM) is a user-friendly tool that is both compact and durable for long-term use. It can be used for absolute optical power measurements, as well as relative loss measurements. In addition to a self-calibration function, it operates for a wide range of ...

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
...

Frequently Asked Questions

Laser Power Monitors are used to measure the continuous output power of laser beams. They are essential in ensuring the efficiency, safety, and optimization of lasers in various applications such as industrial manufacturing, medical procedures, research and development, and telecommunications.

While Laser Power Monitors measure the continuous power output of laser beams, Laser Energy Monitors measure the energy per pulse in pulsed laser systems. Laser Energy Monitors are crucial for applications where the laser operates in pulses, such as certain medical treatments and material processing.

Laser Power Monitors typically use thermopiles or photodiodes as sensors. Thermopiles convert heat from the laser beam into an electrical signal, while photodiodes convert photons into an electrical current. Laser Energy Monitors generally use pyroelectric sensors or integrating photodiodes. Pyroelectric sensors generate an electric charge in response to temperature changes caused by the laser pulse.

Monitoring the power and energy of lasers is essential for calibration, quality control, safety, and optimization. It ensures that the laser is operating within specified parameters, which is critical for the quality of end products in manufacturing, the safety of medical procedures, and the reliability of data in research and telecommunications.

When selecting a Laser Power or Energy Monitor, it’s important to consider the wavelength range, power or energy range, sensor type, and resolution. The wavelength range specifies which wavelengths the monitor can measure. The power or energy range indicates the levels that can be measured. The sensor type affects the monitor's sensitivity and accuracy. Resolution refers to the smallest change that can be detected by the monitor.

In industrial manufacturing, Laser Power and Energy Monitors are used for applications such as laser cutting, welding, and marking. They ensure that the laser is operating at the correct power and energy levels, which is critical for the quality and precision of the manufacturing process.

Yes, Laser Power and Energy Monitors are essential for safety purposes. They ensure that lasers do not exceed safe operating parameters, protecting both equipment and operators from potential damage or harm. This is particularly important in medical applications where patient safety is a primary concern.

Laser Power and Laser Energy Monitors: A Comprehensive Overview

Laser Power and Laser Energy Monitors are crucial instruments in the field of laser technology. They are used to measure and analyze the power and energy output of lasers, which is vital for various applications in research, industry, medicine, and communications. This article delves into the details of these monitoring devices, discussing their importance, working principles, types, and applications.

Introduction to Laser Monitoring

Lasers are highly concentrated beams of light that are used in a plethora of applications, from industrial cutting to optical communications. The efficiency and safety of these applications depend on the precise control of laser power and energy. Laser Power Monitors and Laser Energy Monitors are devices that measure the power and energy of laser beams, respectively. Power relates to the continuous output of the laser, whereas energy is concerned with the output per pulse in pulsed laser systems.

Importance of Monitoring: Monitoring laser power and energy is critical for several reasons:

  1. Calibration: To ensure that the laser output is consistent with the specifications.
  2. Quality Control: In manufacturing, ensuring the laser is operating at the correct power and energy is critical for product quality.
  3. Safety: To make sure that lasers do not exceed safe operating parameters.
  4. Optimization: Fine-tuning laser systems for optimal performance in different applications.

Principles of Measurement

Power Measurement: Laser Power Monitors typically rely on thermopiles or photodiodes for measurement.

  • Thermopiles convert the heat from the laser beam into an electrical signal. As the laser beam is absorbed, it heats up the absorbing material. This temperature change is then converted into an electrical signal proportional to the power of the laser.
  • Photodiodes, on the other hand, are semiconductor devices that convert photons into an electrical current. They are more suitable for measuring lower power lasers as they can be more sensitive than thermopiles.

Energy Measurement: For measuring energy in pulsed laser systems, pyroelectric sensors or integrating photodiodes are generally used.

  • Pyroelectric sensors utilize a crystal material that generates an electric charge in response to a change in temperature. As the material absorbs the laser pulse, it heats up, and the resulting charge is proportional to the energy of the pulse.
  • Integrating photodiodes can be used for measuring the energy of low-energy pulses. They capture the total charge produced during a pulse and are effective for measuring very short pulses.

Types of Laser Power and Energy Monitors

Portable Monitors: Portable Laser Power and Energy Monitors are designed for mobility. They are usually battery-operated and compact, making them ideal for fieldwork and applications where the monitor needs to be moved between different locations.

Benchtop Monitors: Benchtop monitors are larger and designed for laboratory or fixed installation use. They usually have more features, a more robust build, and are suited for applications that require high precision.

PC Interface Monitors: These monitors are designed to interface directly with a computer. They often come with software that allows for more advanced data analysis and monitoring.

Key Specifications

When selecting a Laser Power or Energy Monitor, it’s crucial to consider key specifications such as:

  • Wavelength Range: The range of wavelengths the monitor is capable of measuring.
  • Power or Energy Range: The range of power or energy levels that can be measured.
  • Sensor Type: The type of sensor used (e.g., thermopile, photodiode, pyroelectric).
  • Resolution: The smallest change in power or energy that can be detected by the monitor.

Applications

Research and Development: In research and development, lasers are used in various experiments and applications where controlling and measuring the laser's power and energy is critical for data accuracy.

Industrial Manufacturing: In industrial applications such as laser cutting, welding, and marking, the power and energy of the laser are directly related to the quality of the end product.

Medical: In medical applications like laser surgery and therapy, precise control and measurement of laser power and energy are vital for patient safety and treatment efficacy.

Telecommunications: In optical fiber communications, lasers are used to transmit data. Monitoring the power ensures that the laser is operating efficiently and that data is being transmitted reliably.

Conclusion

Laser Power and Laser Energy Monitors are indispensable tools in laser technology. Their ability to precisely measure the power and energy of laser beams ensures the efficient, safe, and optimized use of lasers in a multitude of applications across various fields. Whether it's for R&D, manufacturing, medical, or communications, these monitors play a fundamental role in advancing technology and ensuring quality and safety standards are upheld.

Did You know?

Did you know that the precision of Laser Power and Energy Monitors can significantly impact various industries, from healthcare to manufacturing? Laser energy, measured per pulse, and continuous laser power are crucial parameters in applications such as laser surgery, industrial cutting, and telecommunications. Accurate readings from Laser Power and Energy Monitors ensure efficiency, safety, and optimization, directly affecting the quality of end products and patient treatments. Key factors like wavelength range, power or energy range, sensor type, and resolution come into play when selecting an appropriate monitor. Sophisticated sensors like thermopiles, photodiodes, and pyroelectric sensors are deployed in these devices, converting heat or photons into readable electrical signals. Whether used in research and development, optimizing manufacturing processes, or ensuring safety in medical procedures, Laser Power and Energy Monitors play an indispensable role in our tech-driven world.
