Description

Gentec-EO offers a single channel, touch screen energy and power monitor compatible with pyroelectric and thermopile sensors and photo detectors. Maestro\\\'s touch screen design and versatile user interface, and optical specifications make it an ideal choice for scientific and industrial light measurement applications.

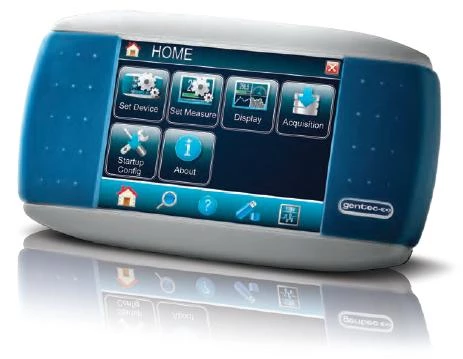

Gentec-EO - MAESTRO Touch Screen Energy and Power Monitor

Visit the Gentec-EO Store

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile
Min Measurable Energy: <100 fJ
Max Measurable Energy: <100 kJ
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
Energy Monitor Accuracy: <3%
Power Monitor Accuracy: <0.3%

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

READS ALL HEADS
  • Power: Thermopiles, Photo Detectors and Pyroelectrics
  • Energy: Thermopiles (in single shot mode), Photo Detectors and Pyroelectrics

LARGE TOUCH SCREEN COLOR LCD DISPLAY
  • 5.6in Diagonal
  • 640 x 480 Resolution
  • 18bit Color
  • FULLY Touch Screen Controls

UNIQUE ERGONOMIC DESIGN
  • Great for both handheld and tabletop use, with improved rubber bands and quick stand for better stability

INTUITIVE USER INTERFACE
  • Easy to navigate interface, with many display features:
  • Single or Dual Graph Display
  • Instant access to the main functions
  • Function Search tool
  • Interface available in multiple languages

USB KEY ACCESS
  • Store data directly on a USB key

REAL-TIME STATISTICAL FUNCTIONS
  • Max, Min, Average, Standard Deviation, RMS and PTP Stability, Pulse # and Repetition Rate

AVAILABLE OUTPUTS
  • USB Key, Analog Output, RS-232, PC-USB, Ethernet

Applications

Scientific and industrial applications for light energy and power measurements:

  • Optical spectroscopy
  • THz spectroscopy
  • Laser beam energy and power measurements


Frequently Asked Questions

What kind of sensors is the MAESTRO Touch Screen Energy and Power Monitor compatible with?
The MAESTRO Touch Screen Energy and Power Monitor is compatible with pyroelectric and thermopile sensors and photo detectors.
What is the size of the touch screen display?
The touch screen display is 5.6 inches diagonal with a resolution of 640 x 480 and 18-bit color.
What are the available outputs for the MAESTRO Touch Screen Energy and Power Monitor?
The available outputs for the MAESTRO Touch Screen Energy and Power Monitor are USB Key, Analog Output, RS-232, PC-USB, and Ethernet.
What kind of applications is the MAESTRO Touch Screen Energy and Power Monitor suitable for?
The MAESTRO Touch Screen Energy and Power Monitor is suitable for scientific and industrial applications for light energy and power measurements, such as optical spectroscopy, THz spectroscopy, and laser beam energy and power measurements.
What kind of statistical functions does the MAESTRO Touch Screen Energy and Power Monitor offer?
The MAESTRO Touch Screen Energy and Power Monitor offers real-time statistical functions such as Max, Min, Average, Standard Deviation, RMS and PTP Stability, Pulse # and Repetition Rate.

Got more questions? Use the inquiry form to ask the supplier directly.
