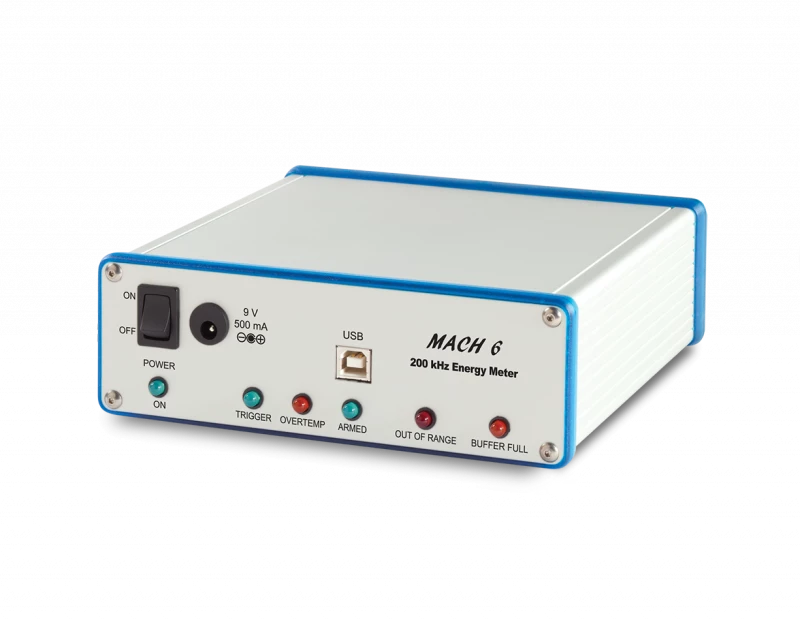

200 kHz Module For M6 Heads MACH 6

Visit the Gentec-EO Store

Specifications

Detector Compatibility: Other, Pyroelectric, Photodiode
Min Measurable Energy: <10 pJ
Max Measurable Energy: <10 mJ
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
Energy Monitor Accuracy: <1%
Power Monitor Accuracy: Not Applicable
Digital Display Size: Computer screen
Analog Output: 0-3 V, BNC
External Trigger: None
Digital Resolution: Current Scale/2000
Device Accuracy: ±1 %
Software Trigger Level: 2 to 20 %, 1 % resolution
Repetition Rate: 200000 Hz
Weight: 0.424 kg
Document icon Download Data Sheet Download icon

Features


  • Digital Display Size: Computer screen

  • Analog Output: 0-3 V, BNC

  • External Trigger: None

  • Energy Range: pJ to mJ

  • Digital Resolution: Current Scale/2000

  • Device Accuracy: ±1%

  • Software Trigger Level: 2 to 20%, 1% resolution

  • Repetition Rate: 200,000 Hz

  • Weight: 0.424 kg

Applications


  • Measure pulse energy at speeds of up to 200 kHz

  • Achieve high-precision energy measurements with 12-bit digital accuracy

  • Capture real-time data for up to 4 million pulses

  • Suitable for use with various fast energy probes, including silicon, InGaAs, and pyroelectric detectors

  • Cover a wide energy range from pJ to mJ and wavelengths from 0.35 to 2.5 µm

  • Use advanced LabView application software for instrument control and data analysis
