Description
Gentec-EO presents its sophisticated lineup of S-LINK energy and power monitors, available in both 1 and 2 channel configurations, specifically designed for seamless integration with PC systems. These monitors stand out for their compact and versatile design, making them perfectly suited for a broad spectrum of industrial light measurement tasks. Engineered for compatibility with both thermopile and pyroelectric detectors, the S-LINK series exemplifies the pinnacle of precision and versatility in the realm of PC-based monitoring solutions for energy and power metrics in various light-based applications.

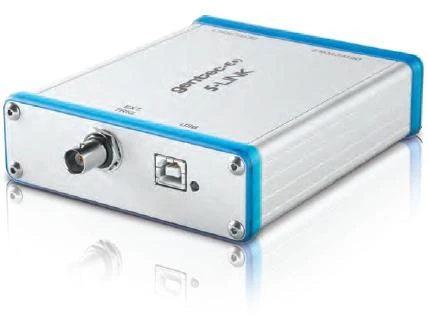

Gentec-EO - Dual Channel Energy and Power Monitor - S-LINK-2
Specifications
Detector Compatibility: | Pyroelectric, Thermopile |
---|---|
Min Measurable Energy: | <100 fJ |
Max Measurable Energy: | <100 kJ |
Min Measurable Power: | < 10 uW |
Max Measurable Power: | <100 kW |
Energy Monitor Accuracy: | <2% |
Power Monitor Accuracy: | <2% |
Features
- Reads Both Power and Energy: Compatible with both thermopile and pyroelectric sensors, allowing for versatile measurement capabilities.
- Channel Options: Available in S-LINK-1 (single channel) and S-LINK-2 (dual channel) models to suit different monitoring needs.
- PC Integration: Comes with software for PC connection, enabling comprehensive data analysis and monitoring directly on your computer.
- Serial Commands: Offers full control through serial commands on all versions, enhancing flexibility and usability.
- Fast Data Transfer: Achieves data transfer rates up to 10 kHz per channel, ensuring timely and efficient data acquisition.
- Connectivity Options: Available with either USB or Ethernet connectivity, with the USB version being port-powered for convenience.
- External Trigger: Each model includes a standard external trigger ranging from 2.4 V to 24 V, facilitating synchronized measurements.
Applications
- Laser System Calibration and Testing: Ideal for calibrating and testing laser systems in manufacturing, research, and development environments to ensure they meet the required specifications for power and energy output.
- Industrial Laser Processing: Useful in monitoring and controlling laser power and energy in industrial applications like cutting, welding, engraving, and additive manufacturing, where precision is crucial for quality and efficiency.
- Scientific Research: Supports experiments in physics, optics, and material science, where accurate measurements of laser power and energy are essential for experimental validity.
- Medical Equipment Maintenance: Can be used for the calibration and maintenance of medical laser devices, ensuring they operate within safe and effective parameters for treatments such as laser surgery and dermatology.
- Quality Assurance and Control: Plays a vital role in quality assurance processes in industries utilizing laser technology, ensuring that the laser parameters adhere to strict standards for consistency and safety.
- Educational Purposes: Suitable for educational settings where students and researchers learn about laser dynamics, allowing hands-on experience with real-time data monitoring and analysis.
- Photonics R&D: Assists in the research and development of photonics devices, where understanding and controlling the power and energy of light sources is fundamental.
Frequently Asked Questions
What is the Gentec-EO Dual Channel Energy and Power Monitor?
The Gentec-EO Dual Channel Energy and Power Monitor is a PC-based energy and power monitor that reads both power and energy from thermopiles and pyroelectrics.
How many channels are available for the S-LINK?
The S-LINK is available with 1 or 2 channels. The S-LINK-1 and S-LINK-2 models are now available.
Is the monitor compatible with thermopile and pyroelectric detectors?
Yes, the monitor is compatible with thermopile and pyroelectric detectors.
What is the fastest data transfer rate for the Gentec-EO Dual Channel Energy and Power Monitor?
The Gentec-EO Dual Channel Energy and Power Monitor has the fastest data transfer rate, with all points transferred directly into your PC at 10 kHz/Channel.
What kind of external trigger does the Gentec-EO Dual Channel Energy and Power Monitor come with?
Every model of the Gentec-EO Dual Channel Energy and Power Monitor comes standard with a 2.4 V to 24 V external trigger.
