Description
The QUAD-4TRACK is an advanced Beam Position Measurement system. It is used with the Pulse Track Applications Software, which creates a full featured data acquisition system for measuring and displaying laser energy and beam position.

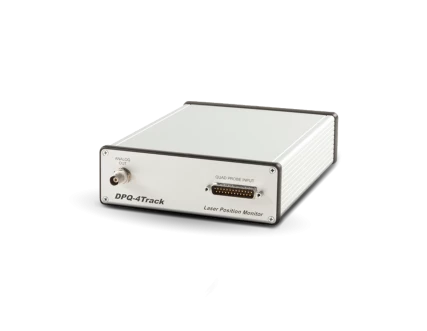

4-Quadrant Laser Position Sensing Detector QUAD-4TRACK
Specifications
| Detector Compatibility: | Thermopile, Pyroelectric, Photodiode |
|---|---|
| Min Measurable Energy: | Other |
| Max Measurable Energy: | <100 mJ |
| Min Measurable Power: | <1 mW |
| Max Measurable Power: | <1 W |
| Energy Monitor Accuracy: | <1% |
| Power Monitor Accuracy: | <1% |
| Detector Type: | 4-Channel Detectors |
| Detector Size: | 9 mm and 20 mm square detectors |
| Analog Output: | 0-2 Volts |
| External Power Supply: | 9 VDC |
| Power Range: | 200 µW - 200 mW |
| Energy Range: | 20 µJ to 20 mJ |
| Weight: | 0.424 kg |
Features
The QUAD-4TRACK is used with compatible Gentec-EO probes, the DPQ-J9, DPQ-J20, DPQ-R9, and DPQ-R20. The J series probes are used for pulsed laser applications, and the R series are used for Radiometric application. The QUAD-4TRACK can measure pulsed lasers up to 1000pps on each channel when using the J series probes. When using the R series probes the beam modulation rate can be set from 5Hz to 50Hz.
Applications
- Measure, Track and Align: Follow your laser beam wherever it goes.
- 4-Channel Detectors: Unique quadrant detector technology senses laser beam position with high resolution.
Frequently Asked Questions
What applications is the QUAD-4TRACK suitable for?
The QUAD-4TRACK is suitable for laser beam position sensing.
What is included with the QUAD-4TRACK laser beam position sensing detector?
The QUAD-4TRACK includes complete LabView application software with many features.
What is the maximum pulsed laser measurement rate for the QUAD-4TRACK?
The QUAD-4TRACK can measure pulsed lasers up to 1000pps on each channel when using the J series probes.
What is the QUAD-4TRACK?
The QUAD-4TRACK is an advanced Beam Position Measurement system used for laser beam position sensing.
What probes are compatible with the QUAD-4TRACK?
The QUAD-4TRACK is used with compatible Gentec-EO probes, including the DPQ-J9, DPQ-J20, DPQ-R9, and DPQ-R20.
