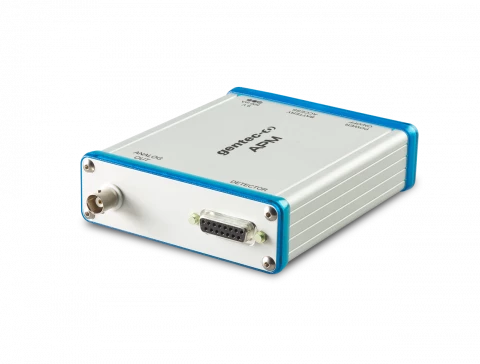

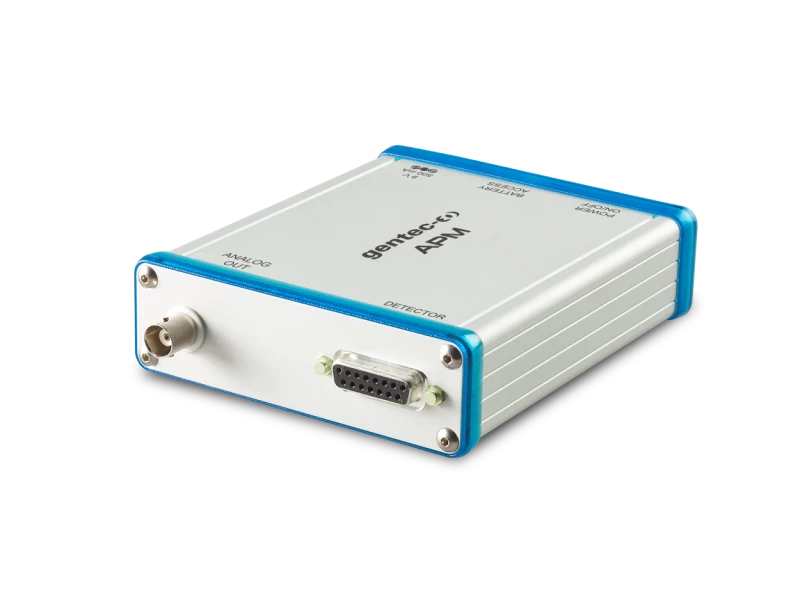

APM (D) Analog Power Module for Interface with Oscilloscopes and Lock-in Amplifiers
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Description
The APM (D) Analog Power Module is an essential component designed to seamlessly interface -B heads with oscilloscopes and lock-in amplifiers. This laser power monitor is specifically crafted to enhance the functionality of detectors from the PE, QE8, and UM series, ensuring optimal performance and reliable data acquisition. With its robust design and dependable power supply, the APM (D) is a critical tool for professionals seeking precision and accuracy in their measurements.
Engineered for versatility, the APM (D) is also compatible with LEMO connectors, expanding its usability across various detector models. For those utilizing the M6 series detectors, a LEMO-to-DB15 adaptor can be ordered separately, allowing for seamless integration and enhanced connectivity. This adaptability makes the APM (D) a valuable asset in diverse laboratory and industrial settings.
Compact and lightweight, the APM (D) measures 101.6W x 30.5H x 127D mm and weighs just 0.424 kg, making it easy to incorporate into existing setups without occupying excessive space. The module operates on a 9 V battery or can be powered externally with a 9 VDC 1.66 A supply, providing flexibility in power management. Its BNC analog output ensures straightforward connectivity, facilitating efficient data transfer and analysis.
Overall, the APM (D) Analog Power Module is a reliable and versatile solution for interfacing detectors with essential measurement instruments. Its compatibility with multiple series and connectors, combined with its compact design, makes it an indispensable tool for professionals in need of precise and efficient measurement capabilities.
APM (D) Analog Power Module for Interface with Oscilloscopes and Lock-in Amplifiers
Specifications |
|
|---|---|
| Detector Compatibility: | Thermopile, Pyroelectric, Photodiode |
| Min Measurable Energy: | Not Applicable |
| Max Measurable Energy: | Not Applicable |
| Min Measurable Power: | <10 pW |
| Max Measurable Power: | <100 kW |
| Energy Monitor Accuracy: | Not Applicable |
| Power Monitor Accuracy: | <1% |
| Analog Output: | BNC |
| External Trigger: | None |
| Battery Type: | 9 V |
| External Power Supply: | 9 VDC 1.66 A |
| Dimensions: | 101.6W x 30.5H x 127D mm |
| Weight: | 0.424 kg |
| APM (D): | 201848B |
Features
- Analog Power Module: Specially designed for interfacing with -B heads
- Versatile Compatibility: Connects seamlessly with oscilloscopes and lock-in amplifiers
- Enhanced Power Measurements: Improves the functionality of power measurement setups
- User-Friendly Operation: Facilitates easy integration into existing systems
- Controller and GUI Specifications: Tailored for effective control and monitoring
- Power Meter Specifications: Meets industry standards for precise power measurements
- Energy Meter Specifications: Enhances energy measurement capabilities
- Physical Characteristics: Compact and durable design for long-lasting performance
Applications
- Laboratory Experiments: Ideal for integration into laboratory setups requiring accurate power measurements
- Research and Development: Supports R&D environments for enhanced data acquisition
- Industrial Power Analysis: Suitable for analyzing power in various industrial applications
- Educational Purposes: Enhances educational demonstrations and experiments in physics and engineering
Frequently Asked Questions
The APM is suitable for laser power monitoring applications in various applications and use cases.
The APM has a digital display size, analog output BNC, external trigger, and dimensions of 101.6W x 30.5H x 127D mm. It weighs 0.424 kg and can be powered by a 9V battery or external power supply.
The APM is compatible with laser power detectors from the PE series, UM series, and QE8 series.
The APM comes with a power cord included.
The APM is an analog power module used to interface laser power detectors from the PE series, UM series, and QE8 series with oscilloscopes and lock-in amplifiers.
