Description
Gentec-EO offers a 1 and 2 channel PC-based energy and power monitors. S-LINK compact, versatile design make it an ideal choice in industrial light measurement applications. This PC-Based monitor is compatible with thermopile and pyroelectric detectors.

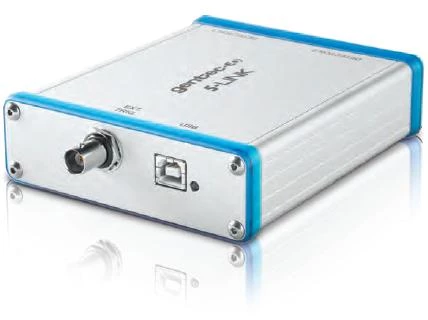

Gentec-EO - Dual Channel Energy and Power Monitor - S-LINK-2-Ethernet
Specifications
| Detector Compatibility: | Pyroelectric, Thermopile |
|---|---|
| Min Measurable Energy: | <100 fJ |
| Max Measurable Energy: | <100 kJ |
| Min Measurable Power: | < 10 uW |
| Max Measurable Power: | <100 kW |
| Energy Monitor Accuracy: | <2% |
| Power Monitor Accuracy: | <2% |
Download Data Sheet
Features
- READS BOTH POWER AND ENERGY: Thermopiles and pyroelectrics
- AVAILABLE WITH 1 OR 2 CHANNELS: S-LINK-1 and S-LINK-2 models now available
- PC-BASED: Connects to your PC with included software
- SERIAL COMMANDS: Serial commands are available on all versions to let you take full control
- FASTEST DATA TRANSFER RATE: Get all the points transferred directly into your PC at 10 kHz/Channel
- USB OR ETHERNET: Choose your favorite communications port. The USB version is port-powered.
- EXTERNAL TRIGGER: Every model comes standard with a 2.4 V to 24 V external trigger.
Applications
- Laser power measurements
- Metrology
- Spectroscopy
Frequently Asked Questions
What is the Gentec-EO Dual Channel Energy and Power Monitor?
The Gentec-EO Dual Channel Energy and Power Monitor is a PC-based monitor that reads both power and energy from thermopiles and pyroelectrics.
How many channels are available in the S-LINK models?
The S-LINK models are available with 1 or 2 channels.
What type of detectors is the monitor compatible with?
The monitor is compatible with thermopile and pyroelectric detectors.
What is the data transfer rate of the monitor?
The monitor has the fastest data transfer rate and can transfer all the points directly into your PC at 10 kHz/Channel.
What are the available communication ports for the monitor?
The monitor is available with USB or Ethernet communication ports. The USB version is port-powered.
Does the monitor come with an external trigger?
Yes, every model comes standard with a 2.4 V to 24 V external trigger.
