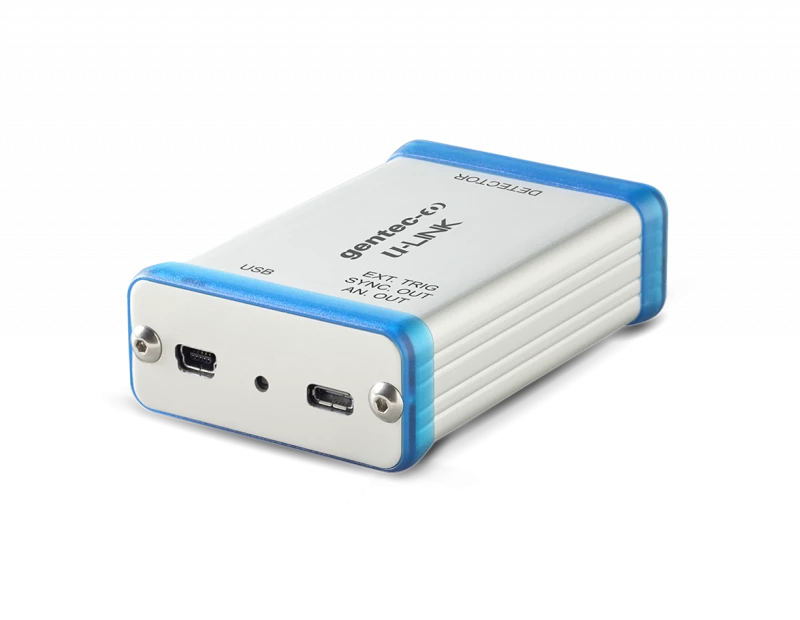

PC Interface For Power Measurement U-LINK

Visit the Gentec-EO Store

Specifications

Detector Compatibility: Thermopile, Pyroelectric, Photodiode
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <10 pW
Max Measurable Power: <100 kW
Energy Monitor Accuracy: Not Applicable
Power Monitor Accuracy: <1%
Digital Display Size: Computer screen
Data Display: Real time, ratio, line plot, histogram, statistics and 3D histogram
Analog Output: 0-2 V, adjustable, full scale, ±1 %
External Trigger: 3.3-12 V
Real-time Data Transfer: 10 kHz
Serial Commands Via: USB
External Power Supply: USB 5V, 150 mA
Power Range 4 PW - 30 KW: Power range 4 pW - 30 kW
Digital Resolution: 23 bits on current scale
Device Accuracy ±0.5 % ±3 µV: Device accuracy ±0.5 % ±3 µV
Statistics: Current value, max, min, average, standard deviation, RMS & PTP stability, time
Response Time: Current value, max, min, average, standard deviation, RMS & PTP stability, time
Energy Range: 2 fJ to 30 kJ
Digital Resolution: Current Scale/3754
Device Accuracy: 1 % ±50 µV (< 500 Hz) 2 % ±50 µV (500 Hz - 10 kHz)
Software Trigger Level: 0.1 to 99.9 %, 0.1 % resolution, default 2 %
Repetition Rate: 10 kHz
Real-time Data Transfer: 10 kHz with time stamp, no missing point
Statistics: Current value, max, min, average, standard deviation, RMS & PTP stability, pulse #, repetition rate and average power
Dimensions: 57W x 26H x 91D mm
Weight: 0.12 kg
Document icon Download Data Sheet Download icon

Features


  • The Universal Meter: Reads all types of heads, including power measurements for thermopiles, photodetectors, and pyroelectrics, as well as energy measurements for thermopiles (in single-shot mode), photodetectors, and pyroelectrics

  • Measure FJ Energy Levels: Utilizes a unique digital method to suppress noise on lower measurement ranges, ensuring accurate results

  • External Trigger: Easily synchronize the U-LINK with your pulsed laser or digital chopper for precise timing

  • Serial Commands: Take full control with available serial commands on both versions

  • Real-Time Statistical Functions: Includes max, min, average, standard deviation, RMS, and PTP stability measurements

  • Synchronize Multiple Channels: Use the "SYNC. OUT" port to connect multiple U-LINK devices for cost-effective multi-channel systems

  • Detector Compatibility: Compatible with various detectors, including thermopiles, photodetectors, pyroelectrics, and terahertz detectors

Applications


  • Power and energy measurements in research and industrial settings

  • Synchronization with pulsed lasers and digital choppers

  • Precise control and data acquisition in laboratory experiments

  • Creating multi-channel measurement systems

  • Compatible with a wide range of detectors for versatile applications
