Description

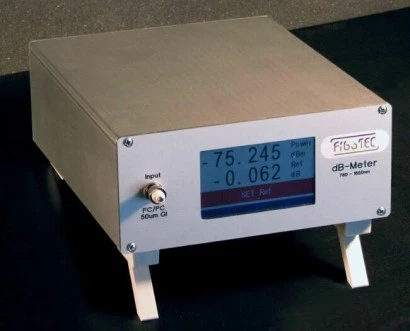

The dB-Meter Instrument is a sophisticated tool designed for precise measurement of power, power stability, and power changes across a wide dynamic range. This instrument is ideal for those who require high accuracy in their measurements, offering a seamless experience with its large touch screen that ensures excellent visibility and ease of use. The ergonomic design of the display allows for quick and clear readouts, making manual adjustments straightforward and efficient.

One of the standout features of the dB-Meter is its flexibility in operation. It can be used with an internal stabilized light source or an external optical source, covering a wide wavelength range from 780 nm to 1650 nm. This adaptability makes it suitable for a variety of testing scenarios, including the quick and easy testing of passive components or local fiber loops. The instrument's data output is facilitated through a serial USB interface, ensuring that users can easily access and analyze their measurement results.

Built with a high dynamic range and low voltage DC supply, the dB-Meter is engineered for reliability and efficiency. Its compact size and lightweight design make it a convenient choice for both laboratory and field applications. The instrument's specifications are customizable, allowing for modifications such as light source, fiber type, channel count, and detector type upon request, providing a tailored solution to meet specific needs.

Specifications

Detector Compatibility: Fiber
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: <1 nW
Max Measurable Power: <1 mW
Energy Monitor Accuracy: Not Applicable
Power Monitor Accuracy: <1%
Wavelength: 780-1650 nm (InGaAs-PD)
Integration Time: 1 ms ... 1 min
Light Source: 1-2 on customer request
Options: compact module (indoor)

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Versatile Operation: Supports both internal stabilized light source and external light source for flexible usage.
  • Measurement Flexibility: Offers absolute or relative measurement with the ability to set a reference level.
  • Large Touch Screen: Equipped with a large touch screen for enhanced visibility and ease of use.
  • High Dynamic Range: Capable of measuring power changes across a wide dynamic range with high accuracy.
  • Low Voltage DC Supply: Operates efficiently with a low voltage DC power supply.
  • Customizable Light Source: Allows integration of a customer-defined semiconductor light source for quick testing of passive components or local fiber loops.
  • Ergonomic Display: Features an ergonomic display for fast and discernable readouts during manual adjustments.
  • USB Interface: Data is provided through a serial USB interface for easy connectivity.
  • Wide Wavelength Range: Receiver wavelength range from 780 nm to 1650 nm using an InGaAs detector.
  • Precision and Resolution: Offers a resolution of 0.01 dB with an integration time ranging from 1 ms to 1 min.
  • Compact and Lightweight: Dimensions of 165 x 240 x 150 mm and weighs less than 1 kg, making it portable and easy to handle.
  • Environmental Conditions: Operates in non-condensing environments from 5°C to 35°C, with storage conditions from -20°C to 60°C.
  • Regulatory Compliance: CE certified for safety and reliability.

Applications

  • Insertion Loss & Return Loss Testing: Accurate component performance evaluation
  • Optical Alignment & Adjustment: Facilitates precise system alignment
  • Process Monitoring: Detects changes in optical power during operations
  • Fiber Loop Testing: Quick testing of passive components and local fiber loops
  • Research & Development: Supports high-precision optical experiments

Frequently Asked Questions

What is the dB-Meter Instrument used for?
The dB-Meter Instrument is used for measuring power, power stability, and power changes across a wide dynamic range. It is suitable for testing components for Insertion Loss (IL) and Return Loss (RL), optical alignment/adjustment, and monitoring processes causing optical power changes.
What are the available light source options for the dB-Meter?
The dB-Meter can operate with an internal stabilized light source or an external light source. It supports a range of wavelengths from 780 nm to 1650 nm and can include customer-defined semiconductor light sources for quick testing.
What is the dynamic range and resolution of the dB-Meter?
The dB-Meter has a dynamic range of 1 nW to 1 mW (> 60 dB) and a resolution of 0.01 dB.
What are the power supply requirements for the dB-Meter?
The dB-Meter requires a low voltage DC supply with a maximum of 1 A at 11-13 V DC.
What are the environmental conditions for operating the dB-Meter?
The dB-Meter should be operated in non-condensing conditions with temperatures between 5°C and 35°C. For storage, the temperature range is -20°C to 60°C.
How is data provided from the dB-Meter?
Data from the dB-Meter is provided through a serial (USB) interface and displayed on a large touch screen for easy readout.
Can the standard options of the dB-Meter be customized?
Yes, the standard options such as light source, fiber type, channel count, and detector type can be modified by request.

Got more questions? Use the inquiry form to ask the supplier directly.
