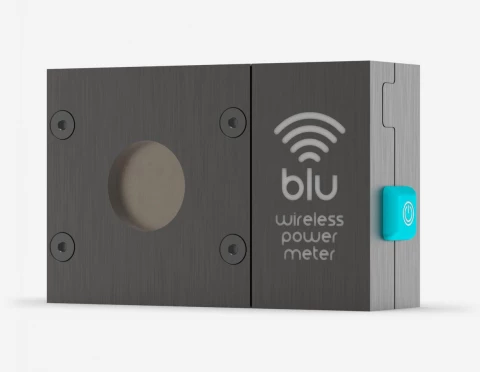

Thumbnail of BLU Embedded Wireless Interface for Power Measurement photo 1

Description

The BLU is an innovative embedded wireless interface designed to streamline power measurement tasks. It is exclusively available as a detector output option, offering convenient and efficient connectivity for your power and energy measurement needs.

With its user-friendly mobile application and versatile measurement parameters, the BLU simplifies the process of monitoring laser power and energy. Whether you're in a laboratory, industrial setting, or on the go, the BLU ensures hassle-free data acquisition and real-time measurement display.

BLU Embedded Wireless Interface for Power Measurement

Visit the Gentec-EO Store

Specifications

Detector Compatibility: Photodiode, Pyroelectric, Thermopile, Fiber, Integrating Sphere, Microbolometer
Min Measurable Energy: Not Applicable
Max Measurable Energy: Not Applicable
Min Measurable Power: Not Applicable
Max Measurable Power: Not Applicable
Energy Monitor Accuracy: <0.1%
Power Monitor Accuracy: <0.1%
Digital Display Size: Computer/Mobile device screen
External Trigger: None
Battery Type: Lithium-ion
Battery Life: 5 days while running
Statistics: Current value, max, min, average, standard deviation, RMS & PTP stability, time
Response Time: Current value, max, min, average, standard deviation, RMS & PTP stability, time

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wireless Connectivity: Easily connects to your mobile device or computer via a dedicated mobile application
  • Intuitive App: The BLU app provides a straightforward interface for configuring measurement parameters
  • Wavelength Correction: Automatically applies correction factors based on your laser's wavelength
  • Adjustable Range: Set power or energy range to a fixed scale or let the software adapt it automatically
  • Measure Modes: Choose between power (watts) or single-shot energy (joules) measurements
  • Correction Options: Apply multiplication factors and offsets to your measurements
  • Trigger Level: Set trigger levels in 0.1% steps (energy mode only)
  • Multiple Display Options: Switch between various real-time measurement displays including scope, needle, real-time, and statistics
  • Data Acquisition: Configure data acquisition parameters such as sample rate and duration
  • Data Export: Easily export acquired data to other apps or send it via email
  • Compatibility: Works seamlessly with a variety of platforms

Applications

  • Streamlining laser power and energy measurements
  • Laboratory, research, and industrial applications
  • Ideal for users seeking wireless and convenient power measurement solutions
  • Suitable for monitoring laser performance in real-time

Frequently Asked Questions

What is the Gentec-EO Wireless Monitor BLU used for?
The Gentec-EO Wireless Monitor BLU is used for laser beam power measurements.
What are the key features of the Gentec-EO Wireless Monitor BLU?
The key features of the Gentec-EO Wireless Monitor BLU include an all-in-one detector and meter, the ability to save 50% on calibration costs, cross-platform software, extensive coverage, easy setup, wireless connectivity, and long battery life.
How does the Gentec-EO Wireless Monitor BLU save on calibration costs?
The Gentec-EO Wireless Monitor BLU saves on calibration costs by combining a detector and a meter in one product, which only requires one calibration.
What is the battery life of the Gentec-EO Wireless Monitor BLU?
The Gentec-EO Wireless Monitor BLU has a USB-rechargeable Li-ion battery that lasts up to 5 continuous days with the device running.
What devices can be used to display the results from the Gentec-EO Wireless Monitor BLU?
The results from the Gentec-EO Wireless Monitor BLU can be displayed on a mobile device with the Gentec-EO BLU app, which is available for free on Google Play and the Apple Store. It can also be used with a PC by plugging in the included Bluetooth receptor and using PC-Gentec-EO.

Got more questions? Use the inquiry form to ask the supplier directly.
