Description
Gentec-EO offers a 1 and 2 channel PC-based energy and power monitors. S-LINK compact, versatile design make it an ideal choice in industrial light measurement applications. This PC-Based monitor is compatible with thermopile and pyroelectric detectors.

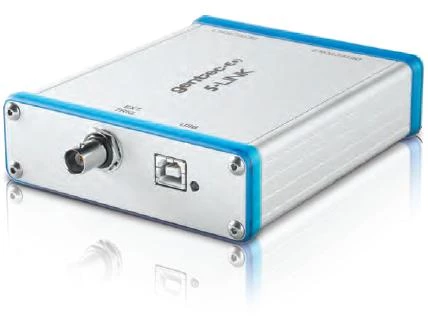

Gentec-EO - Single Channel Energy and Power Monitor - S-LINK-1
Specifications
Detector Compatibility: | Pyroelectric, Thermopile |
---|---|
Min Measurable Energy: | <100 fJ |
Max Measurable Energy: | <100 kJ |
Min Measurable Power: | < 10 uW |
Max Measurable Power: | <100 kW |
Energy Monitor Accuracy: | <2% |
Power Monitor Accuracy: | <2% |
Features
- Versatility in Measurement: Capable of reading both power and energy metrics from thermopile and pyroelectric detectors, making it suitable for a wide range of laser systems.
- Channel Options: Available in both single-channel (S-LINK-1) and dual-channel (S-LINK-2) configurations to cater to various monitoring requirements.
- PC Integration: Designed for seamless connection with PCs, complete with included software that offers a user-friendly interface for data analysis and monitoring.
- Control and Customization: Features serial commands across all versions, allowing users to take full control of their measurement processes.
- High-Speed Data Transfer: Provides the fastest data transfer rate in the market at 10 kHz/Channel, ensuring real-time monitoring and analysis without data loss.
- Flexible Connectivity: Users can choose between USB and Ethernet ports for connectivity, with the USB version being conveniently port-powered.
- External Triggering: Equipped with a standard external trigger ranging from 2.4 V to 24 V, enabling synchronized measurements across different devices.
Applications
- Laboratory Research: The S-LINK series is invaluable in academic and industrial research labs, where precise measurements of laser power and energy are critical for experimental accuracy.
- Manufacturing and Process Control: Ideal for real-time monitoring of laser systems in manufacturing settings, ensuring optimal performance in applications such as laser cutting, welding, and marking.
- Quality Assurance: Plays a crucial role in the quality assurance processes of industries utilizing laser technology, ensuring that the laser outputs meet stringent standards.
- Medical Device Calibration: Essential in the calibration and maintenance of medical laser devices, where accurate measurements ensure the safety and effectiveness of treatments.
- Photonics Development: Supports the development and testing of photonic devices, where precise control and measurement of light energy are fundamental.
- Educational Use: Acts as an excellent educational tool in universities and technical schools, allowing students to understand and experience practical aspects of laser physics and optics.
- OEM Integration: Suitable for OEM applications where integrated laser power and energy monitoring is required, adding value to end products with precise measurement capabilities.
Frequently Asked Questions
What is the Gentec-EO Single Channel Energy and Power Monitor?
The Gentec-EO Single Channel Energy and Power Monitor is a PC-based energy and power monitor that can read both power and energy from thermopiles and pyroelectrics.
What detectors is the monitor compatible with?
The monitor is compatible with both thermopile and pyroelectric detectors.
How many channels are available with the S-LINK monitor?
The S-LINK monitor is available with 1 or 2 channels. The S-LINK-1 and S-LINK-2 models are both available.
What is the data transfer rate of the monitor?
The monitor has the fastest data transfer rate available, with all points transferred directly into your PC at 10 kHz/Channel.
What communications ports are available for the monitor?
You can choose between USB or Ethernet communications ports. The USB version is port-powered.
Does the monitor come with an external trigger?
Yes, every model of the monitor comes standard with a 2.4 V to 24 V external trigger.
