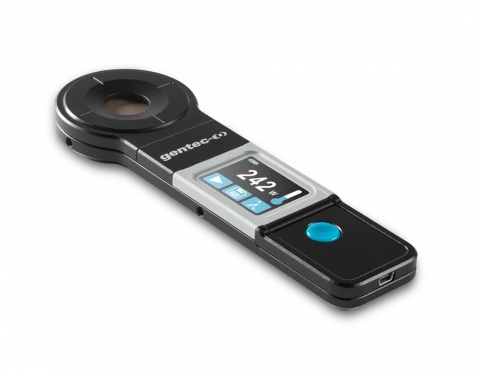

Thumbnail of PRONTO-250 - Portable Laser Power Meter photo 1

Description

The PRONTO-250 is a versatile and portable laser power meter designed for laser power measurements of up to 250 W. This compact device provides accurate and reliable power measurements in a wide spectral range, making it an essential tool for laser operators, researchers, and engineers.

With intuitive user interface, protective casing, and hands-free operation, the PRONTO-250 simplifies laser power measurements and data transfer to a PC for analysis.

PRONTO-250 - Portable Laser Power Meter

Visit the Gentec-EO Store

Specifications

Max Average Power: 250 W
Effective Aperture: 19 mm
Spectral Range: 0.19 – 20 um
Cooling Method: No cooling
Noise Level: 10 mW
Minimum Average Power: 0.55 W
Noise Equivalent Power: 10 mW
Power Calibration Uncertainty: ±3 %
Exposure Time: 5.0 s
Response Time: 5.0 s
Maximum Average Power Density: 45 kW/cm²
Maximum Allowable Casing Temperature: 65 ℃
Battery Type: Rechargeable Li-ion
Battery Life: 17 hours or 4,200 measurements (with brightness set at 25%)
Display Resolution: 1 mW
Display Size: 28.0 x 35.0 mm (128 x 160 pixels)
Display Type: Touch Screen Color LCD
Backlight: Adjustable
Internet Upgrades Via: USB
Data Storage: 50,000 pts
Battery Recharge Via: USB
Absorber: H9
Dimensions: 59.0W x 181.4L x 17.0D
Weight: 0.21 kg
Mounting Holes: 2 x 8-32

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Intuitive User Interface: Easy-to-use interface for hassle-free operation
  • Protective Casing Included: Comes with a protective casing for safe storage and transport
  • Hands-Free Operation: Allows for hands-free laser power measurements
  • Data Transfer to PC: Enables convenient data transfer to a computer for further analysis

Applications

  • Laser power measurements in research and development
  • Quality control and testing of laser systems
  • Laser power monitoring during laser material processing
  • Educational and training purposes for laser technology

Frequently Asked Questions

What are the additional measurement modes of the PRONTO-250-PLUS laser power meter?
The PRONTO-250-PLUS power meter features 2 additional measurement modes: Continuous Power (CWP) mode, which measures power continuously up to 8 W, and Single Shot Energy Mode (SSE), which measures the energy of individual pulses.
What is the calibrated spectral range of the PRONTO detectors?
These products have a calibration at 1064 nm (YAG) and a traceable wavelength correction to complete the calibrated spectral range. The PRONTO-250/250-PLUS also have an additional calibration at 10.6 µm (CO2).
What is the PRONTO-250 Portable Laser Power Meter?
The PRONTO-250 is a pocket-size power and energy meter with a built-in display that accurately measures laser power up to 250 W in only 5 seconds.
What is the warranty for the PRONTO detectors?
The Gentec-EO thermal power detectors carry a one-year warranty against material and/or workmanship defects when used under normal operating conditions. The lifetime warranty guarantees any PRONTO detector for its lifetime, as long as it has been returned for recalibration annually.

Got more questions? Use the inquiry form to ask the supplier directly.
