Description
The DataRay PM-CC-5-D12 is a high-precision laser power meter designed for accurate, real-time measurement of laser beam power. Equipped with a thermopile-based power sensor, this compact device offers a wide dynamic range and is ideal for use with both continuous wave (CW) and pulsed lasers. Engineered for integration with DataRay’s beam profiling systems, it ensures seamless synchronization of spatial and power data. With its USB 2.0 connectivity, plug-and-play operation, and high sampling rates, the PM-CC-5-D12 is a reliable and efficient solution for laser diagnostics in laboratory and industrial environments.
DataRay, in collaboration with Laser Point srl, is proud to announce this new line of power meters for absolute power and energy measurements. Simultaneous power and beam profiling measurement are now possible in DataRay’s full featured software which has no license fees, unlimited installations, and free software updates.
It is perfect for applications including CW and pulsed laser measurements, field servicing of laser systems, R&D, OEM integration, quality control, and simultaneous power and beam profiling measurements.

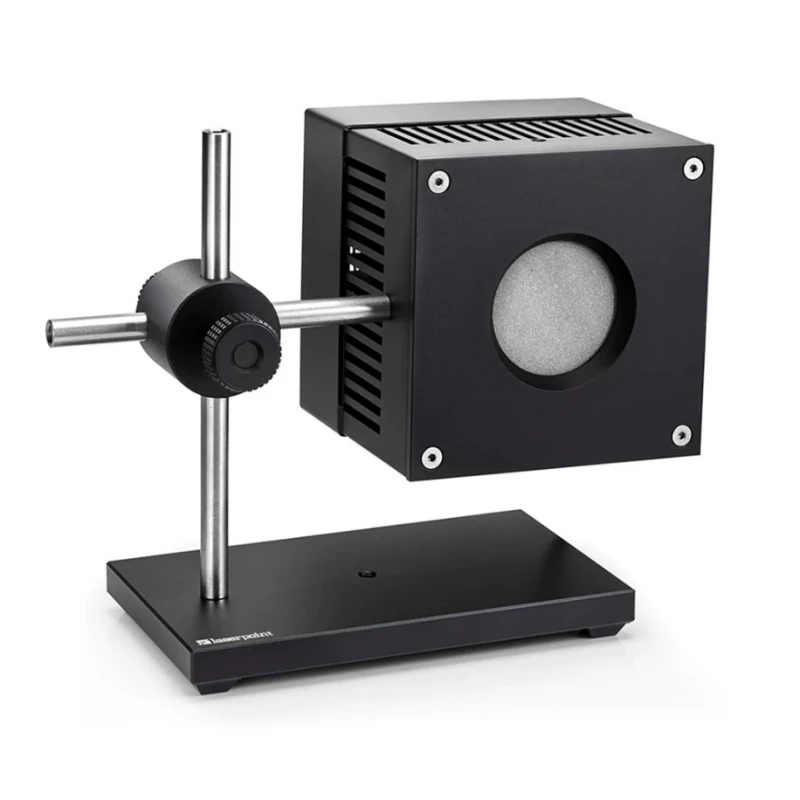

DataRay Power Meter PM-CC-5-D12
Specifications
Max Average Power: | 5 W |
---|---|
Effective Aperture: | 12 mm |
Spectral Range: | 0.19 – 11 um |
Cooling Method: | Heatsink |
Resolution: | 0.1 mW |
Cooling: | Passive cooling via heatsink |
NIST Traceable Calibration: | Available |
Compatibility With DataRay Profilers For Simultaneous Power And Profiling Measurements: | Yes |
SUB Connectivity: | Yes |
Max Aperture: | Up to 40mm |
Features
- Maximum average power up to kWs
- Resolution as low as 100 μW
- Damage resistant coatings (up to 4 kW/cm2 @ 5 kW)
- Absorber spectral range 0.19-11 μm
- Apertures up to 40 mm
- Passive and active cooling options
- USB connectivity
- NIST traceable calibration
- Compatible with DataRay profilers for simultaneous power and profiling measurements
Applications
- Laser System Calibration: Ensure your lasers are operating within target power specifications.
- Beam Profiling and Diagnostics: Pair with beam profilers for full spatial and power characterization.
- Research and Development: Ideal for lab setups requiring high-precision laser power measurement.
- Optical Manufacturing: Monitor laser performance in alignment and production environments.
- Laser Safety Compliance: Verify output power for workplace safety and regulatory requirements.
- Medical and Biomedical Lasers: Validate power output in sensitive applications where accuracy is critical.
Frequently Asked Questions
What are the maximum average power and resolution of the DataRay Power Meter PM-CC-5-D12?
The maximum average power is 5 kW and the resolution can be as low as 100 μW.
What kind of coatings does the power meter have?
The power meter has damage resistant coatings that can withstand up to 4 kW/cm2 @ 5 kW.
What is the absorber spectral range of the power meter?
The absorber spectral range is 0.19-11 μm.
Does the power meter have any cooling options?
Yes, the power meter has passive cooling via a heatsink.
Is the power meter compatible with DataRay profilers?
Yes, the power meter is compatible with DataRay profilers for simultaneous power and profiling measurements.
Can the PM-CC-5-D12 power meter be used with pulsed lasers?
Yes, the DataRay PM-CC-5-D12 laser power meter can be used with both continuous wave (CW) and pulsed lasers. Its thermopile-based power sensor provides stable and accurate measurements even in environments with varying pulse conditions, making it a versatile tool for a wide range of laser types.
How do I integrate this power meter with beam profiling software?
The PM-CC-5-D12 is designed for seamless integration with DataRay’s beam profiling systems. When connected via USB, the power meter communicates directly with compatible software, allowing synchronized measurement of both laser beam profiles and power output for complete system diagnostics.
