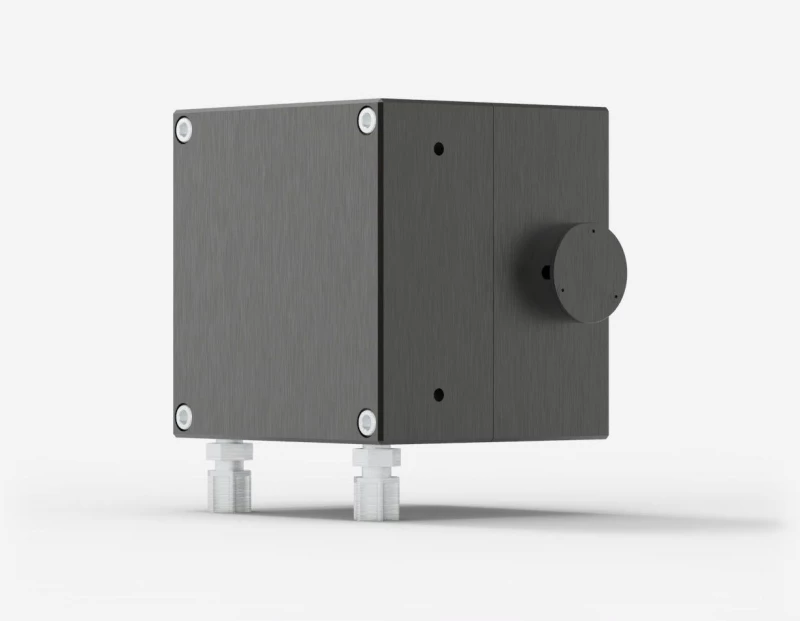

Thumbnail of S50A-1KW-RSI-INT-D0 Water-Cooled Integrating Sphere Detector for Laser Power Measurement photo 1

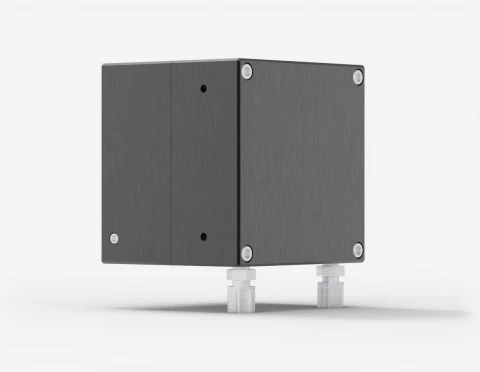

Thumbnail of S50A-1KW-RSI-INT-D0 Water-Cooled Integrating Sphere Detector for Laser Power Measurement photo 2
Thumbnail of S50A-1KW-RSI-INT-D0 Water-Cooled Integrating Sphere Detector for Laser Power Measurement photo 3
Thumbnail of S50A-1KW-RSI-INT-D0 Water-Cooled Integrating Sphere Detector for Laser Power Measurement photo 4

Description

Achieve precision in laser power measurement with the Gentec IS50A-1KW-RSI-INT-D0 Water-Cooled Integrating Sphere Detector. Designed for applications requiring laser power measurements up to 1000 W, this laser power detector combines water cooling and integrating sphere technology to deliver accurate and reliable results. The award-winning technology ensures top-notch performance, making it an ideal choice for high-power laser sources.

S50A-1KW-RSI-INT-D0 Water-Cooled Integrating Sphere Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 1000 W
Effective Aperture: 50 mm
Spectral Range: 0.34 – 1.1 um
Cooling Method: Water
Noise Equivalent Power: 10 μW
Maximum Incidence Angle: ± 25° for beam diameter < 12mm, ± 5° for beam diameter > 12mm
Typical Rise Time: 0.2 sec
Noise Equivalent Power: 10 μW
Linearity With Power: ±1 %
Maximum Divergence: 10° (half-angle)
Sphere Inner Diameter: 100 mm Ø
Calibrated Spectral Range: 405 - 1070 nm
Back Reflections: 12 %, concentrated in a cone with 15 degrees half-angle
Maximum Average Power Density: 5 kW/cm²
Maximum Energy Density: 400 mJ/cm²
Dimensions: 127H x 140W x 115D mm
Weight: 4 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Power Capability: This laser power meter measures laser power up to 1000 W
  • Water-Cooled Design: Ensures efficient cooling for accurate and stable measurements
  • Wide Spectral Range: Covers wavelengths from 340 to 1100 nm for versatile applications
  • Fast Response Time: Achieves a typical rise time of 0.2 s for tracking fast changes in laser power
  • Precise Linearity: Maintains ±1% linearity with power for consistent results
    Integrated Sphere: Features a 100 mm Ø sphere for uniform light collection
  • Flexible Incidence Angles: Supports ± 25° for beam diameter < 12mm, ± 5° for beam diameter > 12mm
  • NIST-Traceable Calibration: Provides accurate and reliable results for traceable measurements

Applications

  • High-Power Laser Sources: This water-cooled laser power detector is ideal for measuring the complete ramp-up of high-power laser sources
  • Industrial Laser Systems: Suitable for integration into industrial laser systems requiring accurate power monitoring
  • Fast Power Changes: Perfect for tracking fast changes in kW-level laser power

Frequently Asked Questions

What is the maximum power this laser power detector can measure?
The IS50A-1KW-RSI-INT-D0 water-cooled laser power detector can measure laser power up to 1000 W continuously, and up to 1500 W for short exposure with water cooling.
What are the available output options for the IS detectors?
The IS detectors are available with two output options: INTEGRA with USB output (-INT) and INTEGRA with RS-232 output (-IDR).
What is the spectral range of the IS50A-1KW-RSI-INT-D0 laser power detector?
The calibrated spectral range of the IS50A-1KW-RSI-INT-D0 laser power detector is from 405 nm to 1070 nm.
How fast is the response time of the IS detectors?
The typical rise time for the IS detectors is 0.2 seconds.
What is the maximum aperture diameter of the IS50A-1KW-RSI-INT-D0 laser power meter?
The maximum aperture diameter of the IS50A-1KW-RSI-INT-D0 laser power meter is 50 mm.
What type of cooling does the IS50A-1KW-RSI-INT-D0 power detector use?
The IS50A-1KW-RSI-INT-D0 power detector uses water cooling.
What is the power calibration uncertainty for different wavelengths?
The power calibration uncertainty is ±5.0% for 405 - 499 nm, ±3.5% for 500 - 1069 nm, and ±2.5% for 1070 nm.

Got more questions? Use the inquiry form to ask the supplier directly.
