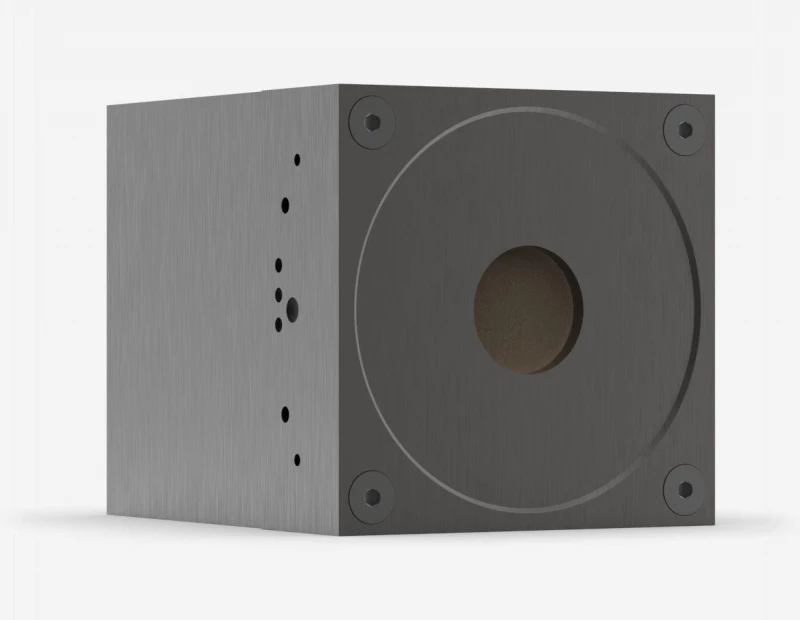

Thumbnail of UP25N-100H-H9-D0 Thermal Detector for Laser Power Measurement photo 1

Description

Gentec-EO offers UP25 series high power detectors for laboratory and industrial applications.

UP25N-100H-H9-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 100 W
Effective Aperture: 25 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Heatsink
Max Average Power (1 Minute): 200 W
Noise Equivalent Power: 3 mW
Typical Energy Sensitivity: 0.14 mV/J
Maximum Measurable Energy: 40 J
Noise Equivalent Energy: 0.2 J
Minimum Repetition Period: 4.6 s
Maximum Pulse Width: 123 ms
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular Concept: Increase the power capability of your detector: 4 different cooling modules
  • High Performance: Fast rise time (1.3 sec); High damage threshold (45 kW/cm2)
  • Energy Mode: Measure single shot energy up to 40 J
  • Smart Interface: Containing all the calibration data

Applications

  • Power output measurements of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
  • Spectroscopy
  • Field service
  • Laboratory and industrial applications

Frequently Asked Questions

What is the UP25N-100H-H9-D0 Thermal Detector used for?
The UP25N-100H-H9-D0 Thermal Detector is used for laser power measurement of high-power lasers in a wide spectral range from deep ultraviolet to mid-infrared.
What is the maximum average power that this laser power meter can measure?
The maximum average power that the detector can measure continuously is 100 W, and for 1 minute it is 200 W.
What is the energy mode of the laser power detector?
The energy mode of the detector allows you to measure single shot energy up to 40 J.
What is the damage threshold of this laser power detector?
The detector has a high damage threshold of 45 kW/cm2.
What is the typical rise time of the detector?
The typical rise time of the detector is 1.3 seconds.

Got more questions? Use the inquiry form to ask the supplier directly.
