Description

The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.

The high power surface absorber sensors are designed for use at high average power densities. The Gentec-EO UP series of laser power detectors include seven families (XLP12, UP12, UP10, UP17, UP19, UP25, UP55) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification. The high power surface absorber sensors are designed for use at high average power densities.

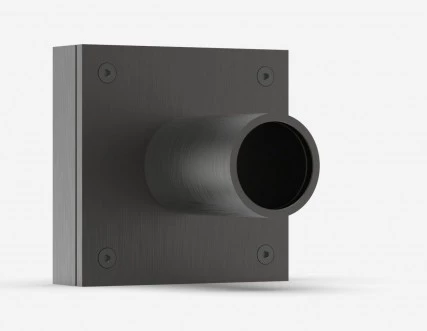

Gentec-EO Thermopile Detector XLPF12-3S-H2-D0

Specifications

Max Average Power: 3 W
Effective Aperture: 12 mm
Spectral Range: 0.28 – 21 um
Cooling Method: Heatsink
Maximum Average Power (continuous): 3 W
Maximum Average Power (1 Minute): 3 W
Noise Equivalent Power: 0.5 μW
Typical Rise Time: 2.5 sec
Typical Power Sensitivity: 180 V/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Thermal Drift: 6 μW/°C
Typical Energy Sensitivity: 22.5 mV/J
Maximum Measurable Energy: 5 J
Noise Equivalent Energy: 12 μJ
Minimum Repetition Period: 16 s
Maximum Pulse Width: 300 ms
Energy Calibration Uncertainty: ±5 %
Maximum Average Power Density: 1 kW/cm²
Maximum Energy Density: 1 J/cm²
Peak Power Density: 143 MW/cm²
Absorber: H2
Dimensions: 73H x 73W x 28D mm (80D mm with tube)
Weight: 0.32 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Power Thermopile: Combines the low noise level characteristic of photodetectors with the broad bandwidth and high power capacity of thermal devices.
  • Minimal Thermal Drift: Exhibits exceptionally low thermal drift at only 6 µW/°C with the IR filter, ensuring stable performance across a range of temperatures.
  • High Sensitivity: Provides high sensitivity of 200 mV/W without the IR filter, making it highly responsive to low power laser emissions.
  • Designed for Ultrashort Pulses: The VP (volume absorber) version is specifically engineered for low power lasers emitting ultrashort pulses in the picosecond (ps) and femtosecond (fs) ranges.
  • IR Filter: The XLPF12 model includes an IR filter to eliminate unwanted infrared interference, enhancing measurement accuracy.
  • Isolation Tube: Incorporates an isolation tube to negate the effects of air turbulence on power measurements, ensuring consistent results.
  • Compatibility: Fully compatible with various stands, displays, and PC interfaces, offering flexibility in setup and integration.

These features make the XLPF12-3S-H2-D0 detector a versatile and reliable choice for precise laser power measurement across a range of applications, particularly those involving low power lasers and ultrashort pulse durations.

Applications

  • Laser power measurements
  • Laser optics
  • Spectroscopy
  • Metrology

Frequently Asked Questions

What is the Gentec-EO Thermopile Detector XLPF12-3S-H2-D0 used for?
The Gentec-EO Thermopile Detector XLPF12-3S-H2-D0 is used for laser power measurement up to 3 W.
What is the maximum measurable energy of the XLPF12-3S-H2-D0 laser power meter?
The maximum measurable energy of the Gentec-EO Thermopile Detector XLPF12-3S-H2-D0 is 15 J.
What is the noise level of the XLPF12-3S-H2-D0 laser power detector?
The Gentec-EO Thermopile Detector XLPF12-3S-H2-D0 has a noise level of a photo detector with the large bandwidth and high power capacity of a thermal device.
What is the thermal drift of the XLPF12-3S-H2-D0 power detector?
The thermal drift of the Gentec-EO Thermopile Detector XLPF12-3S-H2-D0 is only 6 µW/°C (with the IR filter).
What kind of output connection options does the XLPF12-3S-H2-D0 have laser power meter?
The Gentec-EO Thermopile Detector XLPF12-3S-H2-D0 is supplied with an 1.8 m (6 ft) length flexible cable with output connection options such as DB-5 "intelligent" male connector, INTEGRA USB connector, INTEGRA RS-232 connector, BLU wireless option (no cable), BNC connector, Molex connector, and BNC/Molex connector.

Got more questions? Use the inquiry form to ask the supplier directly.
