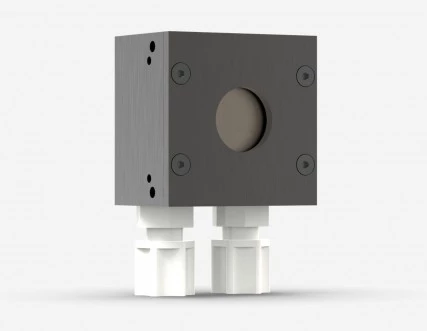

Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0
Description
The UP19K-200W-H9-D0 from Gentec-EO is a high-performance thermal detector designed for precise laser power measurement up to 200 W. Its modular concept allows for enhanced power capabilities with five different cooling modules. The detector features a fast rise time of just 0.6 seconds and a high damage threshold of 45 kW/cm², making it suitable for demanding high-power applications.
Its compact design (only 20.6 mm thick) makes it easy to integrate into existing systems, while its energy mode allows for accurate single-shot energy measurements up to 15 J. The device includes a smart interface that stores all the calibration data for ease of use.
It is compatible with Gentec-EO’s various monitors and displays, including MAESTRO, TUNER, and S-LINK, enabling seamless system integration. This detector is ideal for industries and research requiring precise, continuous laser power measurements with minimal downtime.
Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0
Specifications |
|
|---|---|
| Max Average Power: | 200 W |
| Effective Aperture: | 19 mm |
| Spectral Range: | 0.19 – 20 um |
| Cooling Method: | Water, Heatsink, Fan-cooled |
| Noise Equivalent Power: | 3 mW |
| Typical Rise Time: | 0.6 s |
| Typical Power Sensitivity: | 0.23 V/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Energy Mode Sensitivity: | 0.2 V/J |
| Maximum Measurable Energy: | 15 J |
| Maximum Pulse Width: | 63 ms |
| Maximum Average Power Density: | 45 kW/cm² |
| Dimensions (H X W X D): | 50 x 50 x 20.6 mm |
| Weight: | 0.13 kg |
| Compatible Stand: | STAND-S-233 |
| Ompatible Displays & PC Interfaces: | MAESTRO, TUNER, UNO, S-LINK |
Features
- Modular Concept: Five cooling module options for increased power handling
- High Performance: Fast rise time of 0.6 seconds and high damage threshold (45 kW/cm²)
- Compact Design: Only 20.6 mm thick for easy system integration
- Energy Mode: Measures single-shot energy up to 15 J
- Smart Interface: Stores calibration data for convenience
- Compatibility: Works with Gentec-EO monitors like MAESTRO, TUNER, UNO, S-LINK
Applications
- High-Power Laser Measurement: Ideal for measuring continuous power in high-intensity laser systems
- Energy Measurement: Suitable for measuring single-shot energy up to 15 J in energy-demanding applications
- Laser System Calibration: Perfect for calibrating lasers in laboratories and industrial settings
- Research and Development: Ideal for use in high-precision research requiring reliable power and energy measurement
- Industrial Laser Monitoring: Used for monitoring lasers in manufacturing environments, ensuring consistent output
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
Canada
-
Sold by:
-
On FindLight:
since 2014
Frequently Asked Questions
The Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0 is suitable for laser power measurements, laser optics, spectroscopy, and metrology.
The key features of the Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0 include a modular concept, high performance, compact design, energy mode, smart interface, and compatible stands and displays & PC interfaces.
The measurement capabilities of the Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0 include a maximum average power (continuous) of 1200 W, maximum average power (1 minute) of 2200 W, noise equivalent power of 3 mW, and spectral range of 0.19 - 20 μm.
The Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0 is supplied with an 1.8 m (6 ft) length flexible cable with output connection options including DB- 5 "intelligent male connector for use with a Gentec-EO display or PC interface, INTEGRA USB connector, INTEGRA RS-232 connector, BLU wireless option (no cable), BNC connector, Molex connector, and BNC/Molex connector.
The Gentec-EO Thermopile Laser Power Detector UP19K-200W-H9-D0 is a thermal detector for laser power measurement up to 200 W.
