Description

The UP19K-15S-VR and UP19K-30H-VR models are high-power laser power detectors designed to measure continuous laser power up to 30 W with an effective aperture size of 18 mm. Equipped with a modular concept, these detectors offer two different cooling modules, enhancing their power handling capacity.

The high peak power volume absorber ensures accurate measurement even in high-density beams, while the average power density of 700 W/cm² prevents degradation from repetitive pulses.

The UP19K models feature an energy mode that can measure single-shot energies up to 40 J, making them ideal for energy-focused applications. Additionally, these detectors have a compact design, with the 15S model being only 21 mm thick. They also include a smart interface, which stores calibration data for ease of use, and are compatible with Gentec-EO monitors like MAESTRO and S-LINK.

The UP19K detectors provide precise and stable readings with a calibration uncertainty of just ±2.5% and repeatability of ±0.5%.

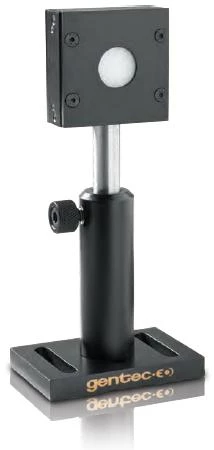

Gentec-EO - Laser Power Detectors - UP19K-15S-VR

Specifications

Max Average Power: 15 W
Effective Aperture: 18 mm
Spectral Range: 0.3 – 2.5 um
Cooling Method: Convection
Max Average Power (1 Minute): 20 W
Noise Equivalent Power: 2 mW
Rise Time: 2.5 s
Sensitivity (100 KΩ Load): 0.34 mV/W
Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Energy Mode Sensitivity: 0.1 mV/J
Maximum Average Power Density: 700 W/cm²
Maximum Energy Density: 6 J/cm²
Weight (Head Only): 0.16 kg (15S model), 0.21 kg (30H model)
Dimensions (H X W X D): 50H x 50W x 20.6D mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Modular Concept: Two cooling module options to increase power capacity
  • High Peak Power Absorber: Prevents degradation from repetitive pulses
  • Energy Mode: Measure single-shot energy up to 40 J
  • Compact Design: 21 mm thickness for the 15S model
  • Smart Interface: Stores calibration data for easy access
  • Compatible with Gentec-EO Monitors: Works with MAESTRO, S-LINK, and others.

Applications

  • High-Power Laser Measurement: Suitable for continuous power measurement in industrial and research settings
  • Laser System Calibration: Perfect for calibrating laser systems in laboratories and industrial applications
  • Single-Shot Energy Measurement: Useful for applications requiring high-energy, single-pulse measurements
  • Laser Performance Monitoring: Ideal for monitoring high-power lasers in real-time
  • Energy-Focused Laser Applications: Suitable for laser systems with high-energy requirements

Frequently Asked Questions

What is the UP19K-15S-VR laser power detector used for?
The UP19K-15S-VR laser power detector is used for power output measurements of high power lasers in a wide spectral range from deep ultraviolet to mid-infrared, spectroscopy, field service, laboratory and industrial applications.
What are the features of the UP19K-15S-VR laser power detector?
The features of the UP19K-15S-VR laser power detector include a modular concept that increases the power capability of your detector with 2 different cooling modules, a high peak power volume absorber that is perfect for high density beams and has an average power density of 700 W/cm2 which prevents degradation caused by repetitive pulses, a compact design that is only 21 mm thick (15S model), an energy mode that measures single shot energy up to 40 J, and a smart interface containing all the calibration data.
What is the benefit of the modular concept of the UP19K-15S-VR laser power detector?
The benefit of the modular concept of the UP19K-15S-VR laser power detector is that it increases the power capability of your detector with 2 different cooling modules.
What is the thickness of the UP19K-15S-VR laser power detector?
The thickness of the UP19K-15S-VR laser power detector is only 21 mm thick (15S model).
What is the maximum single shot energy that the UP19K-15S-VR laser power detector can measure?
The UP19K-15S-VR laser power detector can measure single shot energy up to 40 J.

Got more questions? Use the inquiry form to ask the supplier directly.
