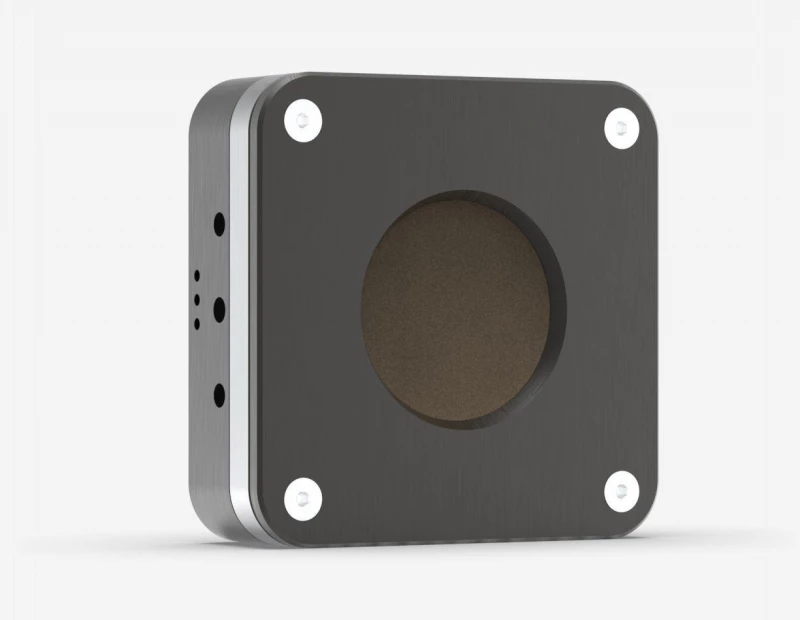

Thumbnail of UP55C-2.5KW-HD-D0 Thermal Detector for Laser Power Measurement photo 1
Thumbnail of UP55C-2.5KW-HD-D0 Thermal Detector for Laser Power Measurement photo 2

Description

Gentec-EO offers a power detector for measuring laser powers in the range from 600W - 2500W. UP-HD series power meters can be used in a wide range of applications for detecting light from deep ultraviolet (DUV) to far infrared (FIR).

UP55C-2.5KW-HD-D0 Thermal Detector for Laser Power Measurement

Visit the Gentec-EO Store

Specifications

Max Average Power: 2500 W
Effective Aperture: 55 mm
Spectral Range: 0.19 – 20 um
Cooling Method: Water
Noise Equivalent Power: 200 mW
Typical Rise Time: 3.5 s
Typical Power Sensitivity: 8 V/W
Repeatability: ±0.5 %
Maximum Average Power Density: 45 kW/cm²
Maximum Energy Density: 1 J/cm²
Typical Rise Time: 3.5 s
Noise Equivalent Power: 200 mW
Power Calibration Uncertainty: ±2.5 %
Absorber: HD

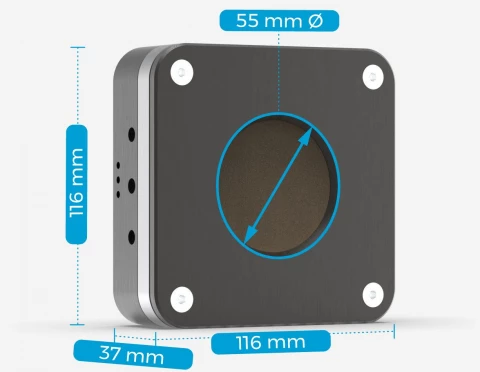

Dimensions: 116H x 116W x 37D mm
Weight: 3.3 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

HIGH DENSITY ABSORBER: The HD absorber is the strongest on the market for use at high powers, presenting both high average power handling and high-power density capabilities.

PERFORMANCE AND SPEED AT A LOW PRICE: Measures both very low and very high powers (up to 2 500 W) with a fast response time. A compact and versatile detector that is more affordable than any other high-power solution on the market.

SMART INTERFACE: Containing all the calibration data.

Applications

  • Laser output power measurements in 600W-2.5kW range
  • Laboratory and industrial applications in a wide spectral range from deep ultraviolet (DUV) to far-infrared (FIR).



Frequently Asked Questions

What is the measurement range of the UP55C-2.5KW-HD-D0 Thermal Detector?
The UP55C-2.5KW-HD-D0 Thermal Detector can measure laser powers in the range from 600W - 2500W.
What is the response time of the UP55C-2.5KW-HD-D0 Thermal Detector?
The UP55C-2.5KW-HD-D0 Thermal Detector has a fast response time.
What is the maximum average power density of the UP55C-2.5KW-HD-D0 Thermal Detector?
The maximum average power density of the UP55C-2.5KW-HD-D0 Thermal Detector is 45 kW/cm².
What is the weight of the UP55C-2.5KW-HD-D0 Thermal Detector?
The weight of the UP55C-2.5KW-HD-D0 Thermal Detector is 3.3 kg.
Is the UP55C-2.5KW-HD-D0 Thermal Detector compatible with a stand?
Yes, the UP55C-2.5KW-HD-D0 Thermal Detector is compatible with the STAND-S-443-C stand.

Got more questions? Use the inquiry form to ask the supplier directly.
