Description

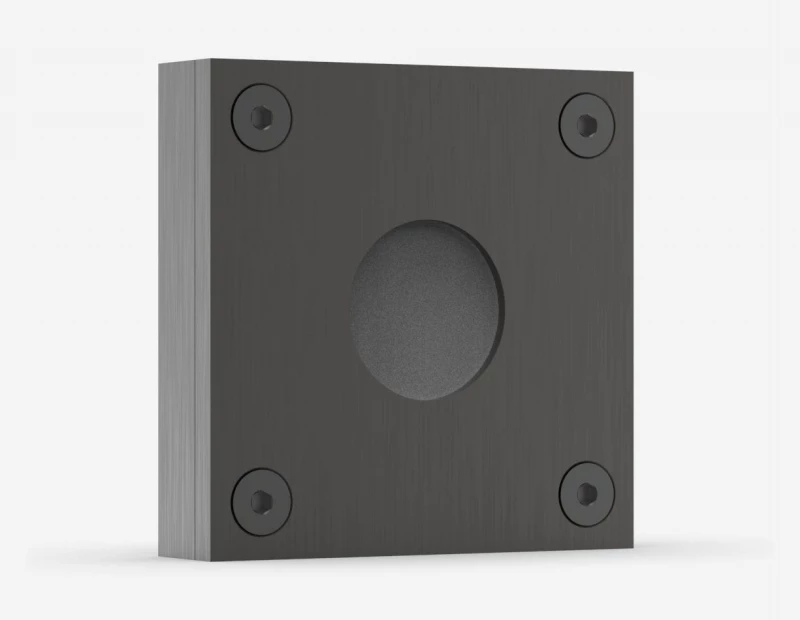

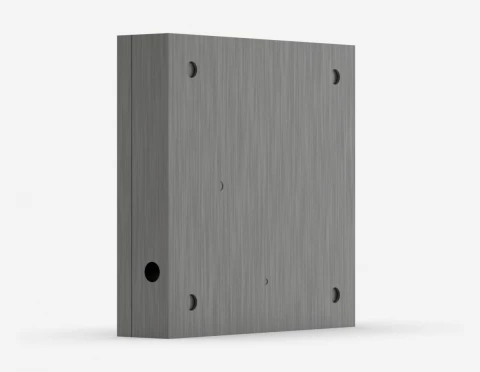

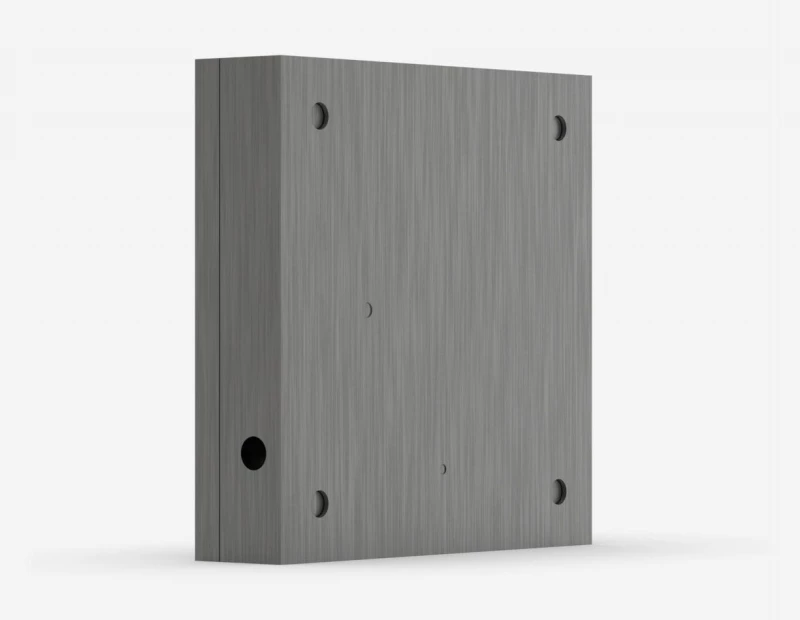

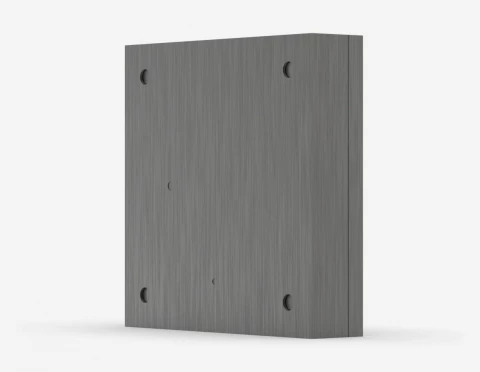

The UP17P-6S-W5-D0 thermal laser power detector from Gentec-EO is designed for precise measurement of laser power up to 6 W, offering high performance in a compact form. With an ultra-thin casing of just 10.7 mm, it combines ease of integration with powerful capabilities.
The detector offers a choice between two absorbers: H5 for a 36 kW/cm² damage threshold and W5 for an unparalleled 100 kW/cm², ideal for handling high-density laser beams.
The UP17P-6S-W5-D0 features a high “power-to-size” ratio, enabling continuous power reading of 6 W. In energy mode, it can measure single-shot energies up to 200 J with a calibration uncertainty of ±5%.
The device offers fast rise time (1.4 seconds) and is compatible with Gentec-EO monitors, including MAESTRO, TUNER, and S-LINK for seamless integration. Whether for continuous power measurement or high-energy applications, the UP17P-6S-W5-D0 provides reliable and accurate data, making it ideal for high-power laser systems.
UP17P-6S-W5-D0 Thermal Detector for Laser Power Measurement
Specifications
| Max Average Power: | 6 W |
|---|---|
| Effective Aperture: | 17 mm |
| Spectral Range: | 0.19 – 10 um |
| Cooling Method: | Convection |
| Absorber Options: | H5 (36 kW/cm2), W5 (100 kW/cm2) |
| Thickness: | 10.7 mm |
| Energy Measurement: | Up to 200 J (W5 version) |
| Maximum Pulse Width: | 133 ms |
| Energy Calibration Uncertainty: | ±5 % |
| Maximum Energy Density: | 1.1 J/cm² |
| Maximum Average Power Density: | 100 kW/cm² |
| Noise Equivalent Power: | 1 mW |
| Typical Rise Time: | 1.4 s |
| Typical Power Sensitivity: | 0.6 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Dimensions: | 46H x 46W x 10.7D mm |
| Weight: | 0.1 kg |
Download Data Sheet
Features
- Ultra-Thin Casing: Only 10.7 mm thick for easy system integration
- Choice of Absorbers: Select between H5 (36 kW/cm²) and W5 (100 kW/cm²) for high-density laser measurements
- High Power to Size Ratio: Handles continuous readings up to 6 W
- Energy Mode: Measures single-shot energy up to 200 J (W5 version)
- Fast Rise Time: 1.4 seconds for quick response
- Smart Interface: Contains all calibration data for easy usage
- Compatible with Gentec-EO Monitors: Works with MAESTRO, TUNER, and S-LINK
Applications
- Laser Power Measurement: Ideal for continuous power measurement in high-power laser systems
- High-Energy Laser Systems: Perfect for energy mode applications, measuring up to 200 J
- Laser Calibration: Use for calibrating high-power laser systems with precision
- Research and Development: Suitable for experimental setups requiring reliable power and energy measurements
- Industrial Laser Systems: Accurate power monitoring in industrial laser applications
Frequently Asked Questions
What is the maximum average power density that the Gentec-EO Thermal Detector UP17P-6S-W5-D0 can handle?
What is the maximum average power that the Gentec-EO Thermal Detector UP17P-6S-W5-D0 can measure?
What is the maximum measurable energy of the Gentec-EO Thermal Detector UP17P-6S-W5-D0?
What is the spectral range of the Gentec-EO Thermal Detector UP17P-6S-W5-D0?
What is the thickness of the casing of the Gentec-EO Thermal Detector UP17P-6S-W5-D0?
