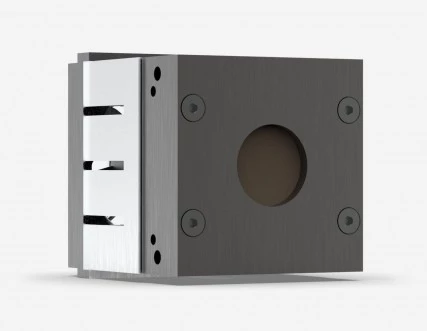

Gentec-EO High Power Detector UP19K-110F-H9-D0

Name: Gentec-EO High Power Detector UP19K-110F-H9-D0
Brand: Gentec-EO

Description

The Gentec-EO Ultra Series UP power detector family includes thirteen series (XLP12, UP12E, UP10K(P), UP17P, UP19K, UP25N(M), UP25T, UP50N(M), UP55N(M), UP55C, UP60N(M), UP55G, and UP60G) of opto-thermal sensors with different cooling options (stand alone, heat sink, fan and water), with or without amplification.

The high power surface absorber sensors are designed for use at high average power densities.

Specifications

Detector Type:	Thermal Absorber (thermopile)
Spectral Range:	0.19 – 20 um
Size:	19 mm
Maximum Power:	110 W
Noise Equivalent Power:	3000 uW
Max Average Power Density:	45 kW/cm2
Maximum Average Power (continuous):	110 W
Maximum Average Power (1 Minute):	150 W
Typical Rise Time:	1.5 sec
Typical Power Sensitivity:	0.23 V/W
Power Calibration Uncertainty:	±2.5 %
Repeatability:	±0.5 %
Typical Energy Sensitivity:	0.23 mV/J
Maximum Measurable Energy:	25 J
Noise Equivalent Energy:	0.06 J
Minimum Repetition Period:	4 s
Maximum Pulse Width:	88 ms
Energy Calibration Uncertainty:	±5 %
Maximum Energy Density:	1 J/cm²
Peak Power Density:	143 MW/cm²
Aperture Diameter:	19 mm
Absorber:	H9
Dimensions:	54.2H x 54.2W x 55.6D mm
Weight:	0.25 kg

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector. A few exception exist: the UP50N series is available with BNC Molex connector on special order only and the XLP12, UP60N(M), and UP60G series are only supplied with a DB-15 “intelligent” male connector and the Integra USB connector.

NOTE To eliminate possible damage, do not carry the detector using the connector cable.

The UP detectors may also be supplied with a stand. Be aware that when using a detector with a heat sink, the fins should always be placed vertically. For cases where Gentec-EO’s monitors don’t automatically read the wavelength correction factor, you can use your detector’s “Personal wavelength correction TM Certificate” to adjust the power you read to a power corrected for a particular wavelength.

Applications

Laser power measurements
Metrology
