Description
The UP10P-2S-H5-L-D0 Thermopile Laser Power Detector from Gentec-EO is designed to measure laser power up to 2 W with high precision. Featuring a low power thermopile, it combines the large bandwidth and high-power capacity of a thermal device with the noise level of a photodetector, providing exceptional accuracy.
This model also includes an IR filter (UPF10) that removes unwanted infrared interference, ensuring reliable measurements. With a fast rise time of 1.4 seconds, this detector offers rapid response for real-time monitoring. Its high damage threshold of 36 kW/cm² ensures durability even in demanding environments.
The compact design (only 13 mm thick) and energy mode capability, which measures single-shot energy up to 3 J, make it suitable for various applications, from laboratory testing to industrial use. The UP10P-2S-H5-L-D0 also offers a smart interface with integrated calibration data, ensuring seamless integration with compatible displays, PC interfaces, and stands for versatile use in different setups.

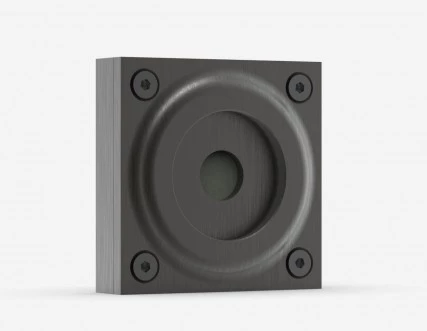

UP10P-2S-H5-L-D0 Thermopile Laser Power Detector
Specifications
| Detector Type: | Thermal Absorber (thermopile) |
|---|---|
| Spectral Range: | 0.19 – 20 um |
| Size: | 10 mm |
| Maximum Power: | 2 W |
| Noise Equivalent Power: | 200 uW |
| Max Average Power Density: | 36 kW/cm2 |
| Rise Time: | 1.4 s |
| Power Sensitivity: | 2 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Energy Sensitivity: | 2.4 mV/J |
| Maximum Measurable Energy: | 3 J |
| Noise Equivalent Energy: | 5 mJ |
| Minimum Repetition Period: | 2 s |
| Maximum Pulse Width: | 63 ms |
| Maximum Average Power Density: | 36 kW/cm² |
| Maximum Energy Density: | 1 J/cm² |
| Peak Power Density: | 143 MW/cm² |
| Aperture Diameter: | 10 mm |
| Dimensions: | 46H x 46W x 13D mm |
| Weight: | 0.13 kg |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- Low Power Thermopile: Combines the advantages of both high power capacity and low noise for precise measurements
- IR Filter (UPF10): Effectively removes unwanted infrared interference
- Fast Rise Time: Quick response with a rise time of just 1.4 seconds
- High Damage Threshold: Capable of handling up to 36 kW/cm² for robust performance
- Compact Design: Only 13 mm thick for easy integration in tight spaces
- Energy Mode: Measures single-shot energy up to 3 J for energy-sensitive applications
- Smart Interface: Contains all necessary calibration data for accurate readings
- Compatible with Multiple Interfaces: Works with a variety of displays, PC interfaces, and stands
Applications
- Laser Power Measurement: Ideal for measuring continuous laser power up to 2 W
- Energy Measurement: Suitable for applications that require measuring single-shot laser energy up to 3 J
- Laser Research: Perfect for laboratory and experimental environments
- Industrial Laser Systems: Reliable performance for industrial laser power monitoring
- High-Power Laser Testing: Measures high-power lasers with high damage thresholds for durability
- Spectroscopy and Materials Testing: Essential for energy and power measurements in testing and analysis
