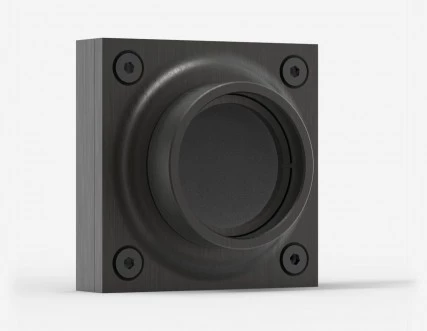

Thumbnail of UPF10P-2S-H5-L-D0 Thermopile Laser Power Detector 2W photo 1

Description

The UPF10P-2S-H5-L-D0 is a state-of-the-art thermopile laser power detector designed by Gentec-EO, tailored for precise laser power measurement up to 2 watts. This advanced thermal detector combines the low noise level typical of photo detectors with the expansive bandwidth and high power capacity of thermal devices, making it an ideal choice for professionals seeking accuracy and reliability in laser power measurement.

One of the standout features of the UPF10P-2S-H5-L-D0 thermopile laser power detector is its integrated IR filter, which effectively removes unwanted infrared interference, ensuring that measurements are not only accurate but also consistent. This laser power detector model is engineered for high performance, boasting a fast rise time of just 1.4 seconds and a high damage threshold of 36 kW/cm². Its compact design, with a thickness of only 13 mm, makes it a convenient addition to any laboratory or field setup.

Beyond its power measurement capabilities, this laser power detector also supports energy mode, allowing for the measurement of single-shot energy up to 3 joules. The smart interface of this detector contains all necessary calibration data, ensuring ease of use and precision in every measurement. With its robust design and advanced features, the UPF10P-2S-H5-L-D0 thermopile laser power detector is a versatile tool for those who demand the best in laser power detection technology.

UPF10P-2S-H5-L-D0 Thermopile Laser Power Detector 2W

Visit the Gentec-EO Store

Specifications

Detector Type: Thermal Absorber (thermopile)
Spectral Range: 0.28 – 2.1 um
Size: 10 mm
Maximum Power: 2 W
Noise Equivalent Power: 200 uW
Max Average Power Density: 36 kW/cm2
Maximum Average Power: 2 W
Noise Equivalent Power: 30 μW
Spectral Range: 0.28 - 2.1 μm
Typical Rise Time: 1.4 sec
Typical Power Sensitivity: 2 mV/W
Power Calibration Uncertainty: ±2.5 %
Repeatability: ±0.5 %
Typical Energy Sensitivity: 2.4 mV/J
Maximum Measurable Energy: 3 J
Noise Equivalent Energy: 5 mJ
Minimum Repetition Period: 2 s
Maximum Pulse Width: 63 ms
Energy Calibration Uncertainty: ±5 %
Maximum Average Power Density: 36 kW/cm²
Maximum Energy Density: 1 J/cm²
Peak Power Density: 143 MW/cm²
Aperture Diameter: 10 mm
Absorber: H5
Dimensions: 46H x 46W x 21.4D mm
Weight: 0.14 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Low Power Thermopile: Combines the noise level of a photo detector with the large bandwidth and high power capacity of a thermal device.
  • IR Filter (UPF10 Models): Effectively removes unwanted IR interference for accurate measurements.
  • High Performance:
    • Fast rise time of 1.4 seconds.
    • High damage threshold of 36 kW/cm².
  • Compact Design: Slim profile with only 13 mm thickness (UP10P model).
  • Energy Mode: Capable of measuring single shot energy up to 3 J.
  • Smart Interface: Contains all the calibration data for seamless operation.
  • Compatible Stand: STAND-S-233.
  • Compatible Displays & PC Interfaces:
    • MAESTRO
    • TUNER
    • UNO
    • S-LINK-1
    • S-LINK-2
    • P-LINK (USB)
    • M-LINK
    • P-LINK (RS-232)
    • P-LINK-4 (USB)
    • P-LINK-4 (Ethernet) V2
    • S-LINK-1 (Ethernet)
    • S-LINK-2 (Ethernet)
  • Measurement Capabilities:
    • Maximum average power (continuous): 2 W
    • Noise equivalent power: 30 μW
    • Spectral range: 0.28 - 2.1 μm
    • Typical rise time: 1.4 sec
    • Typical power sensitivity: 2 mV/W
    • Power calibration uncertainty: ±2.5%
    • Repeatability: ±0.5%
  • Measurement Capabilities (Energy Mode):
    • Typical energy sensitivity: 2.4 mV/J
    • Maximum measurable energy: 3 J
    • Noise equivalent energy: 5 mJ
    • Minimum repetition period

Applications

  • Laser power measurements in the 280nm to 2100 nm range (UV to SWIR).
  • Spectroscopy
  • Metrology
  • Laser calibration

Frequently Asked Questions

What is the Gentec-EO High Power Detector UPF10P-2S-H5-L-D0 used for?
The Gentec-EO High Power Detector UPF10P-2S-H5-L-D0 is a thermopile laser power detector used for laser power measurements.
What is the maximum average power that the laser power detector can measure?
This laser power detector can measure up to 2 W of maximum average power.
What is the noise equivalent power of the detector?
The noise equivalent power of the detector is 30 μW.
What is the physical characteristic of the power detector?
The physical characteristic of this laser power detector includes an aperture diameter of 10 mm, an absorber H5, dimensions of 46H x 46W x 21.4D mm, and a weight of 0.14 kg.
What is the typical rise time of this thermopile laser power detector?
The typical rise time of the detector is 1.4 sec.
