Description
The UP12E-20H-H5-D0 is a high-performance thermal detector designed for laser power measurement up to 20 W. With its modular concept and compact design, it offers a versatile and efficient solution for power measurement applications. The detector features a fast rise time of 0.3 seconds, a high damage threshold of 36 kW/cm², and a slim profile of only 14 mm (10S model).
It also includes an energy mode for measuring single-shot energy up to 5 J. This thermal detector model comes with a smart interface that contains all the calibration data, ensuring accurate and reliable measurements.

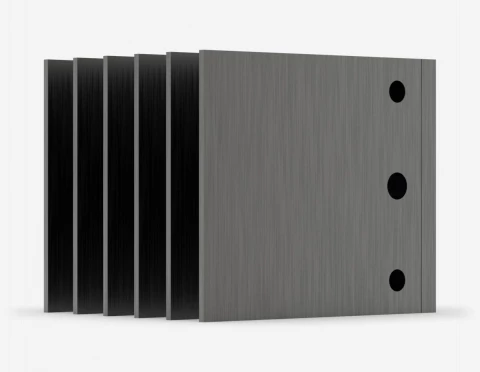

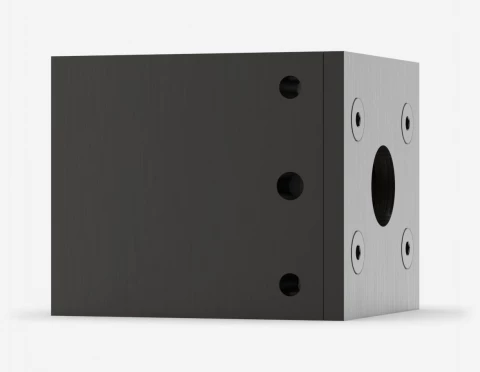

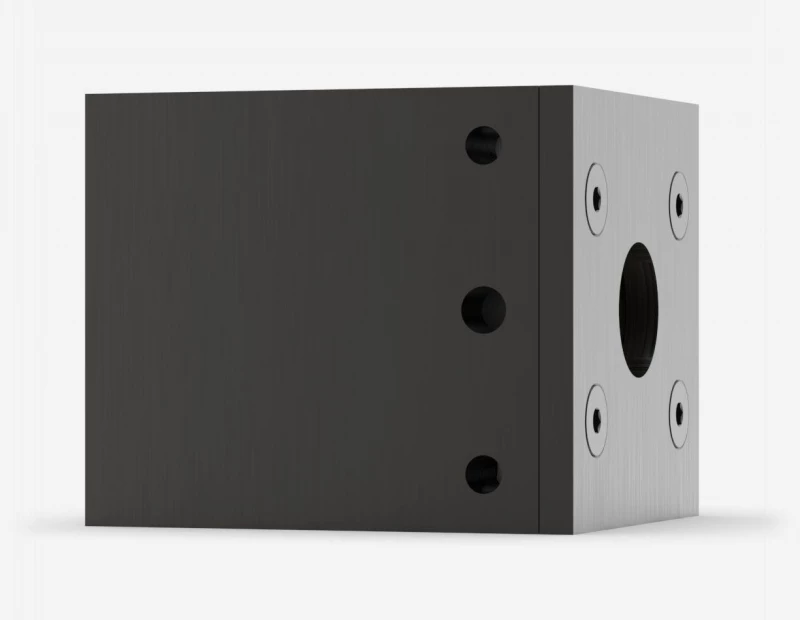

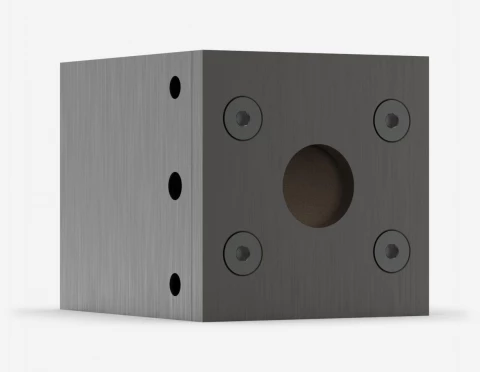

UP12E-20H-H5-D0 Thermal Detector for Laser Power Measurement
Specifications
| Detector Type: | Thermal Absorber (thermopile) |
|---|---|
| Spectral Range: | 0.19 – 20 um |
| Size: | 12 mm |
| Maximum Power: | 20 W |
| Noise Equivalent Power: | 1000 uW |
| Max Average Power Density: | 36 kW/cm2 |
| Typical Rise Time: | 0.3 s |
| Typical Power Sensitivity: | 0.53 mV/W |
| Power Calibration Uncertainty: | ±2.5 % |
| Repeatability: | ±0.5 % |
| Typical Energy Sensitivity: | 0.84 mV/J |
| Maximum Measurable Energy: | 5 J |
| Noise Equivalent Energy: | 0.02 J |
| Maximum Pulse Width: | 50 ms |
| Maximum Energy Density: | 1 J/cm² |
| Absorber: | H5 |
| Cooling: | Convection (heatsink) |
| Dimensions: | 38H x 38W x 45D mm |
| Weight: | 0.15 kg |
Download Data Sheet
Features
- Modular concept with three different cooling modules
- Fast rise time of 0.3 seconds
- High damage threshold of 36 kW/cm²
- Compact design with a slim profile of only 14 mm (10S model)
- Energy mode for measuring single-shot energy up to 5 J
- Smart interface with calibration data
Applications
- Laser power measurement up to 20 W
- Laser research and development
- Laser manufacturing and quality control
- Laser safety and compliance testing
Frequently Asked Questions
What are the output connection options for the UP detectors?
The UP detectors are supplied with a 180 cm length flexible cable with output connection options of a DB-15 "intelligent" male connector, an Integra USB connector, a BNC connector, a Molex connector and a BNC/Molex connector.
What is the Gentec-EO Ultra Series UP power detector family?
The Gentec-EO Ultra Series UP power detector family includes thirteen series of opto-thermal sensors with different cooling options, with or without amplification.
What is the maximum average power for this thermal detector?
The maximum average power for the UP12E-20H-H5-D0 detector is 20 W.
What is the maximum measurable energy for this detector?
The maximum measurable energy for the detector model is 15 J.
What is the typical rise time for the this thermal power detector?
The typical rise time for this detector is 0.3 sec.
