Photomultiplier Tubes (PMT) for Precision Light Detection

Did You Know?

Did you know that a typical bialkali photomultiplier tube can achieve gains on the order of 10^6–10^7 by cascading 8–12 dynode stages, each providing a secondary emission ratio of only about 3–5 electrons per incident electron? This extreme gain allows PMTs to detect single photons, but it also makes them susceptible to strong magnetic fields: even the Earth’s ~50 µT field can measurably deflect photoelectrons, degrading collection efficiency and timing unless the tube is magnetically shielded. A common misconception is that PMTs are always more sensitive than semiconductor detectors—while they excel in the UV–blue with ultra-low dark counts, their quantum efficiency in the NIR is usually far lower than that of modern Si or InGaAs photodiodes.
Read more in our Blog

Related Resources

Frequently Asked Questions

Photomultiplier Tubes (PMTs) are highly sensitive detectors used to measure low levels of light across a wide range of wavelengths. They consist of a photocathode, a series of dynodes, and an anode. When photons strike the photocathode, electrons are emitted and amplified through the dynode stages, resulting in an output signal proportional to the incident light.

Overview of Photomultiplier Tubes (PMT)

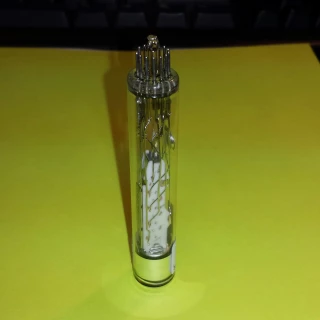

Photomultiplier Tubes (PMT) are vacuum tube light detectors that convert extremely low levels of optical radiation into measurable electrical signals. A typical PMT consists of a photosensitive cathode, a series of dynodes for electron multiplication, and an anode output. When photons strike the photocathode, emitted electrons are multiplied through secondary emission at each dynode stage, yielding gains from 105 to 108. This makes Photomultiplier Tubes (PMT) suitable for applications requiring single-photon or ultra-low-light detection.

Key Specifications and Performance Parameters

When evaluating Photomultiplier Tubes (PMT), engineers typically review:

  • Spectral response: UV to NIR coverage (e.g., 160–900 nm), driven by photocathode material (bialkali, multialkali, GaAs, etc.).
  • Quantum efficiency (QE): Peak QE in the 15–40% range depending on wavelength and photocathode type.
  • Gain: Typical overall gain of 106–107, defined by dynode count, structure, and supply voltage.
  • Dark current / dark count rate: Critical for low-signal measurements; affected by temperature and tube design.
  • Time response: Rise time and transit time spread for fast timing and time-correlated measurements.
  • Linearity and dynamic range: Maximum anode current, linearity error, and saturation behavior.

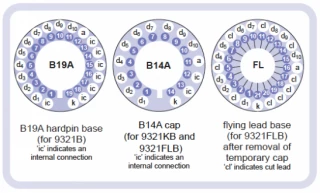

  • Package and window: Head-on vs side-on geometry, window material (borosilicate, UV glass, quartz), and base type.

Typical Applications

Photomultiplier Tubes (PMT) are used in fluorescence spectroscopy, scintillation counting, time-resolved spectroscopy, confocal and multiphoton microscopy, LIDAR, particle physics experiments, and general photon counting systems. Their high gain, low noise, and fast response make PMTs a standard choice where silicon photodiodes or APDs lack sufficient sensitivity at low photon flux.

Buyer Guidance on FindLight

On FindLight you can compare multiple Photomultiplier Tubes (PMT) by spectral range, gain, dark current, timing performance, and package style to match your detection chain and electronics. Review detailed datasheets to verify compatibility with your high-voltage supply, socket configuration, and mechanical constraints. For each Photomultiplier Tubes (PMT) listing, you can request a quote or technical clarification directly from the supplier without registration, enabling rapid evaluation and procurement for R&D setups, OEM instruments, or system upgrades.
