Description

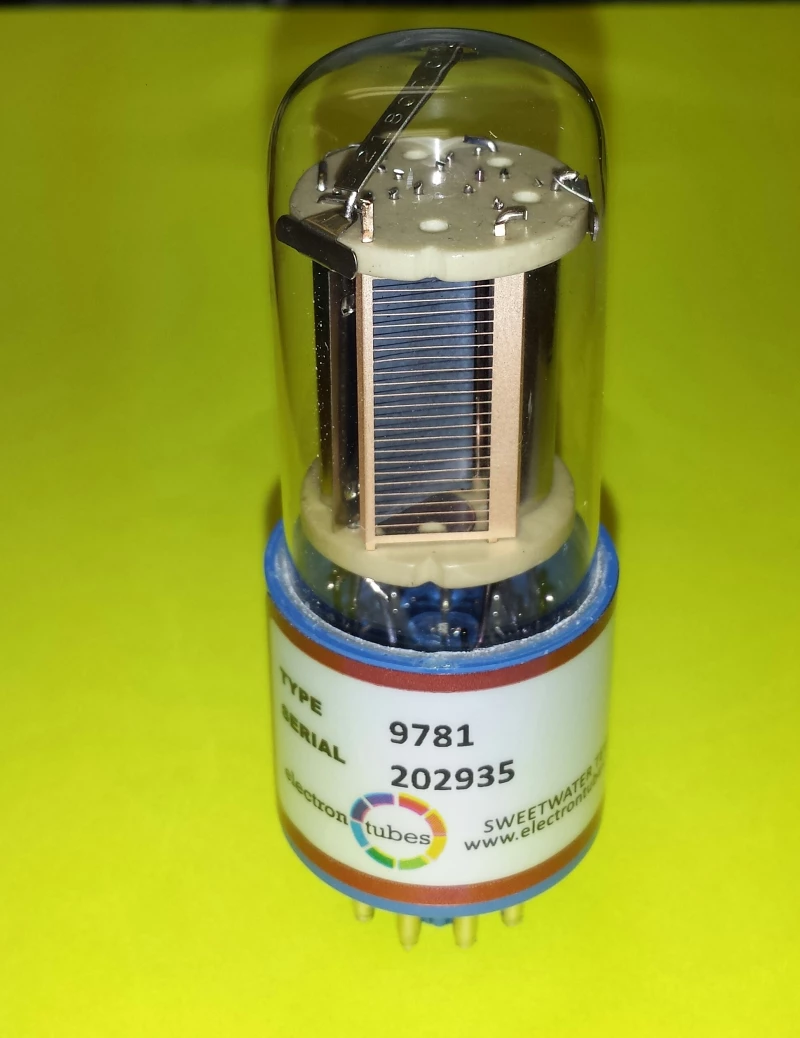

Photomultiplier Tube (PMT) by ADIT Electron Tubes.
Industry standard side window photomultiplier tube with bialkali photocathode for 165 - 680nm detection.
side window bialkali photomultiplier tube
Specifications
| PMT Type: | PMT (photomutiplier tube) |
|---|---|
| Wavelength Of Max Response: | 300 nm |
| Wavelength Range: | 165 – 680 nm |
| Rise Time: | 2 ns |
Download Data Sheet
Applications
spectrophotometers
cosmic ray detectors
Frequently Asked Questions
What is the spectral range of the side window bialkali photomultiplier tube?
The spectral range is 165 - 680nm.
What is the diameter of the photomultiplier tube?
The diameter is 29mm.
What are the applications of the photomultiplier tube?
The applications include spectrophotometers and cosmic ray detectors.
What is the quantum efficiency at peak for the photocathode?
The quantum efficiency at peak is 25%.
What is the maximum rated anode sensitivity in A/lm?
The maximum rated anode sensitivity is 500 A/lm.
What is the voltage range for the nominal A/lm?
The voltage range for the nominal A/lm is 650-800V.
What is the weight of the photomultiplier tube?
The weight is 45g.
What is the timing for single electron rise time?
The timing for single electron rise time is 2ns.
What is the company's policy on modifications to the design and specifications?
The company reserves the right to modify these designs and specifications without notice.
What is the voltage divider distribution for the photomultiplier tube?
The voltage divider distribution is shown on page 2 of the datasheet.
