Terahertz (THz) Detectors

Gentec-EO - Terahertz Pyroelctric Detectors - THZ5I-BL-BNC

Gentec-EO - Terahertz Pyroelctric Detectors - THZ5I-BL-BNC

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 140 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric
Gentec-EO - Terahertz Pyroelctric Detectors - THZ9D-20mS-BL

Gentec-EO - Terahertz Pyroelctric Detectors - THZ9D-20mS-BL

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 25000 uW
Effective Aperture: 9 mm
Sensor Type: Pyroelectric
Gentec-EO - Terahertz Pyroelctric Detectors - THZ12D-3S-VP

Gentec-EO - Terahertz Pyroelctric Detectors - THZ12D-3S-VP

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 3000000 uW
Effective Aperture: 12 mm
Sensor Type: Pyroelectric
Gentec-EO - Hybrid Terahertz Pyroelctric Detectors - QS5-THZ-BL

Gentec-EO - Hybrid Terahertz Pyroelctric Detectors - QS5-THZ-BL

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 12500 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric
QS9-THZ-BL Discrete Pyroelectric Sensor

QS9-THZ-BL Discrete Pyroelectric Sensor

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material temperature.   ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 40000 uW
Effective Aperture: 9 mm
Sensor Type: Pyroelectric

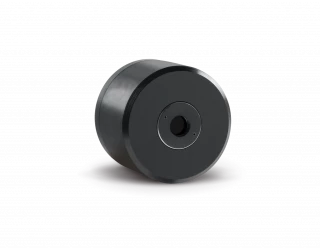

THZ5B-BL-DA-D0 Detector for Power Measurements

THZ5B-BL-DA-D0 Detector for Power Measurements

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 43 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric
THZ5B-BL-DZ-D0 Detector For Power Measurements

THZ5B-BL-DZ-D0 Detector For Power Measurements

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 20000 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric

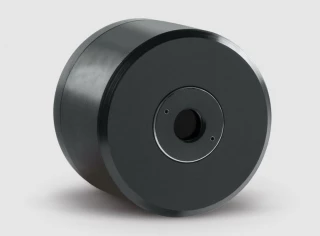

THZ9B-BL-DA-D0 Detector for Power Measurements

THZ9B-BL-DA-D0 Detector for Power Measurements

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric nbsp detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 150 uW
Effective Aperture: 9 mm
Sensor Type: Pyroelectric
THZ9B-BL-DZ-D0 Detector for Power Measurements

THZ9B-BL-DZ-D0 Detector for Power Measurements

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric nbsp;detectors are AC sources whose output varies inversely with the thickness of material ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 20000 uW
Effective Aperture: 9 mm
Sensor Type: Pyroelectric
Gentec-EO THZ5I-BL-BNC Terahertz Detector with Integrated Analog Module

Gentec-EO THZ5I-BL-BNC Terahertz Detector with Integrated Analog Module

The Gentec-EO THZ5I-BL-BNC is a high-performance terahertz detector equipped with an integrated analog module, designed to provide precise power measurements for terahertz radiation up to 140 μW. With ...

Sold by: Gentec-EO Ships from: Canada
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 3000 – 10 um
Max Measurable Power: 140 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric
T-Sense1 Ultrabroadband Terahertz Detector T-Sense

T-Sense1 Ultrabroadband Terahertz Detector T-Sense

The T-Sense1 Terahertz Detector from TeraSpinTec GmbH is based on an ultra-thin GaP(110) crystal that enables efficient detection via free-space electro-optic sampling.    It offers a wide frequency ...

Sold by: TeraSpinTec GmbH Ships from: Germany
Specifications
Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 785 – 785 um
Max Measurable Power: 80000 uW
Effective Aperture: Not Specified
Sensor Type: Other

Did You Know?

Stepping back in time, the term 'terahertz' entered the lexicon of spectroscopists around the mid-1970s, signifying a new frontier in the exploration of electromagnetic spectrum. However, it was not until the recent decade that terahertz science truly came into its own, largely propelled by the advent of time-domain spectroscopy (TDS) with ultrashort-pulse laser sources. This groundbreaking development transformed the landscape of research, enabling time-resolved studies in the "far-infrared" (FIR) realm and unveiling a myriad of spectroscopy and imaging applications in the elusive submillimeter wavelength regime. At the heart of these advancements lie terahertz (THz) detectors, whose role has expanded significantly across diverse sectors of human activity. From enhancing security through the detection of concealed weapons, illicit drugs, and explosives, to revolutionizing healthcare with non-invasive imaging techniques, and even shedding light on cosmic mysteries in astronomy—THz detectors are proving to be instrumental in shaping our understanding of the world and beyond.

Frequently Asked Questions

THz detectors are devices that capture and measure electromagnetic waves in the terahertz frequency range, enabling non-destructive investigation of objects and materials.

There are 11 different THz Detectors from suppliers and manufacturers listed in this category. In just a few clicks you can compare different THz Detectors with each other and get an accurate quote based on your needs and specifications.

Discover the potential of terahertz detectors, as we delve into their capabilities, applications, and future prospects in this technical summary.

Introduction: Terahertz (THz) detectors have surged to the forefront of scientific research and industrial application, offering innovative solutions in various fields, from healthcare and security to astronomy and telecommunications. THz detectors capture and measure electromagnetic waves in the terahertz frequency range, enabling non-destructive investigation of objects and materials.

The Importance of the THz Range: The THz frequency range (0.1 to 10 THz) occupies a unique position in the electromagnetic spectrum, nestled between the microwave and infrared frequencies. This region has been traditionally termed the "THz gap" due to the technical challenges faced in effectively generating and detecting THz radiation. However, recent advancements have begun to bridge this gap, revealing a plethora of opportunities in THz technology.

Types of THz Detectors: There are two main types of THz detectors: thermal detectors and quantum detectors. Thermal detectors, including bolometers and pyroelectric detectors, measure changes in temperature caused by THz radiation. They are known for their wide spectral response and high sensitivity.

Quantum detectors, on the other hand, involve photon-to-electron conversion processes. These include Schottky diode detectors and quantum well infrared photodetectors (QWIPs). Quantum detectors are frequency-selective and can deliver fast response times.

Key Applications of THz Detectors: Terahertz detectors are integral to many cutting-edge applications. In security, they aid in detecting concealed weapons or contraband, as THz waves can penetrate non-metallic materials without the ionizing damage associated with X-rays. In healthcare, THz imaging facilitates non-invasive diagnostics, enabling early detection of conditions like skin cancer.

In telecommunications, THz technology is driving the next generation of high-speed wireless communication—6G and beyond. In astronomy, THz detectors allow scientists to probe the cosmic microwave background and understand the universe's origins.

Future of THz Detectors: The future of THz detectors is marked by continuous innovation. Key areas of focus include improving sensitivity, speed, resolution, and cost-effectiveness of these detectors. Moreover, the integration of THz detectors with nanotechnology and quantum computing opens up exciting avenues for advanced applications, from ultra-secure communication to quantum information processing.

Conclusion: The world of THz detectors is vast and still expanding, with each breakthrough revealing new possibilities for our society. By understanding the principles and potential of THz technology, we can better harness its power, driving progress across a multitude of sectors. As we continue to bridge the THz gap, the detectors' capabilities will only grow, affirming their indispensable role in our technologically-driven world.
