Description
Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material temperature.
Broadband, room-temperature pyroelectric detectors are playing an important role in the research and development of advanced THz sources. Interest for these sources have increased dramatically over the past five years as has interest in development of thermal detectors to support the research.

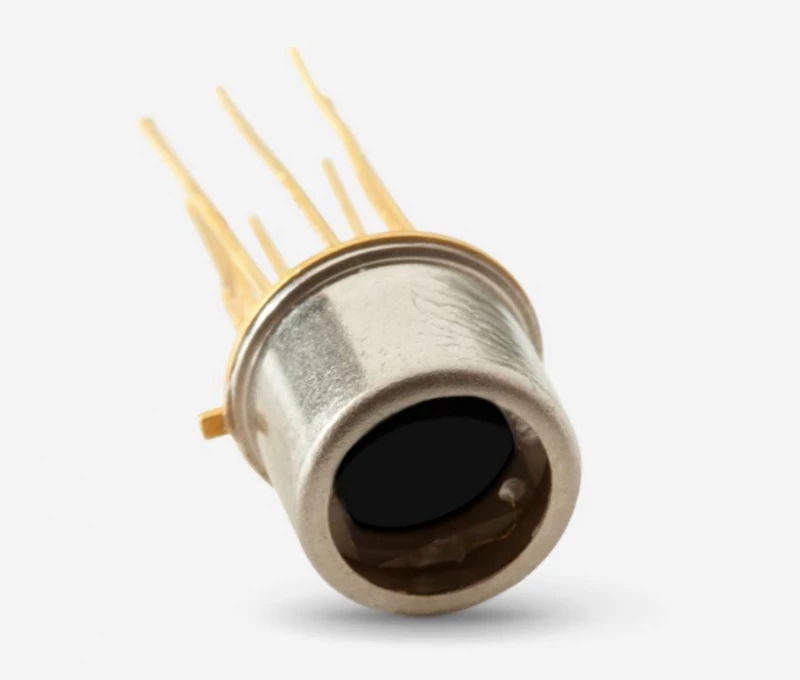

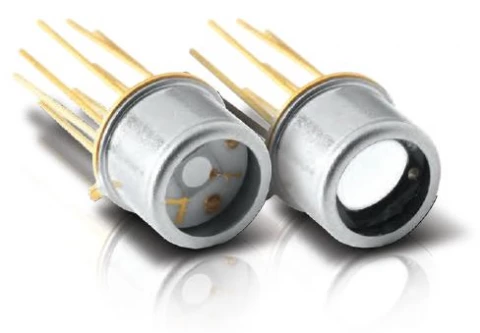

QS9-THZ-BL Discrete Pyroelectric Sensor
Specifications
Spectral Range (Frequency): | 0.1 – 30 THz |
---|---|
Spectral Range (Wavelength): | 10 – 3000 um |
Max Measurable Power: | 40000 uW |
Effective Aperture: | 9 mm |
Sensor Type: | Pyroelectric |
Noise Equivalent Power: | 3 nW |
Voltage Responsivity: | 30 kV/W |
Maximum Average Power Density: | 0.05 W/cm² |
Absorber: | BL |
Dimensions: | 15.2Ø x 6.4D mm |
Package: | TO8 |
Model | SKU: | QS9-THZ-BL | 201690 |
Features
RELATIVE MEASUREMENTS FROM 0.1 TO 30 THz: Broadband, room temperature operation, easier to use and less expensive than a Golay cell
EASY TO INTEGRATE FORMAT: TO5 and TO8 packages make the QS-THZ detectors small and easy to integrate in an existing system
SEVERAL SENSOR SIZES AVAILABLE: Choice of 2 x 2 mm, 5 and 9 mm Ø
CALIBRATED AT 0.63 μm: All THz detectors are calibrated at a single wavelength (0.63 μm) and include a typical wavelength correction data from 0.25 to 440 μm. They are used for relative measurements outside that range.
TEST BOX AVAILABLE: Can be used with our QS-I-TEST test box which provides mounting and power supply
PERMANENT IR WINDOW OPTIONS: Every model can be fitted with a permanent IR window to narrow the wavelength range:
- S5/8: Sapphire (0.3 – 4.5 and 100 - 1000 μm)
- Q5/8: Quartz (0.25 – 3.0 and 50 - 1000 μm)
- Si5/8: Silicon (1.2 – 8.0 and 50 - 1000 μm)
Applications
- Security scanning of people and baggage
- Nondestructive testing of airplane wing structures
- Early detection of cancerous growths
- Noninvasive testing in microelectronics
- Terahertz spectroscopy
Frequently Asked Questions
What is the QS9-THZ-BL Discrete Pyroelectric Sensor used for?
The QS9-THZ-BL Discrete Pyroelectric Sensor is used for terahertz (THz) sensing applications.
What are the key features of the QS9-THZ-BL Discrete Pyroelectric Sensor?
The key features of the QS9-THZ-BL Discrete Pyroelectric Sensor are relative measurements from 0.1 to 30 THz, easy to integrate format, several sensor sizes available, calibrated at 0.63 μm, test box available, and permanent IR window options.
What is the voltage responsivity of the QS9-THZ-BL Discrete Pyroelectric Sensor?
The voltage responsivity of the QS9-THZ-BL Discrete Pyroelectric Sensor is 30 kV/W.
What is the noise equivalent power of the QS9-THZ-BL Discrete Pyroelectric Sensor?
The noise equivalent power of the QS9-THZ-BL Discrete Pyroelectric Sensor is 3 nW.
What is the maximum average power of the QS9-THZ-BL Discrete Pyroelectric Sensor?
The maximum average power of the QS9-THZ-BL Discrete Pyroelectric Sensor is 190 μW.
