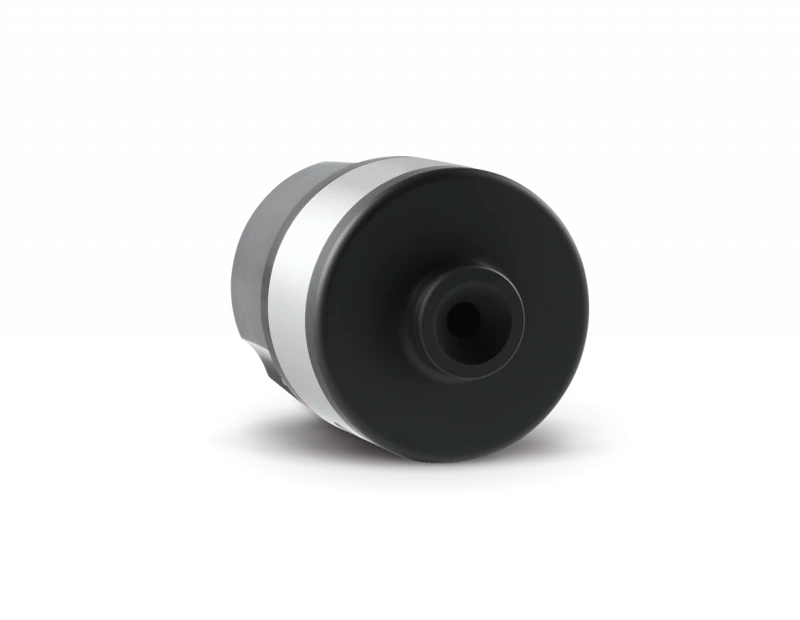

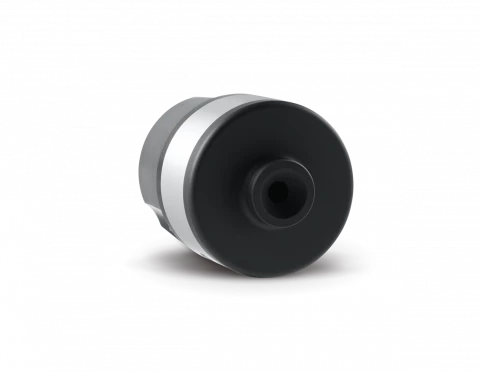

Gentec-EO THZ5I-BL-BNC Terahertz Detector with Integrated Analog Module

Specifications

Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 3000 – 10 um
Max Measurable Power: 140 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric
Maximum Average Power: 62.5 μW
Noise Equivalent Power: 1 nW
Typical Rise Time: 0.2 d
Typical Power Sensitivity: 70 kV/W
Chopping Frequency: 5.0 Hz
Analog Output: 0 - 10 V, BNC
Minimum Repetition Rate: 1000 Hz
Maximum Average Power Density: 0.05 W/cm²
Absorber: BL
Dimensions: 81.3Ø X 99.3D mm
Weight: 0.55 kg
Document icon Download Data Sheet Download icon

Features


  • Terahertz Power Measurement: Capable of measuring terahertz radiation power up to 140 μW

  • High Sensitivity: Offers a noise equivalent power of 1 nW for accurate low-power measurements

  • Wide Spectral Range: Covers the terahertz spectral range from 10 to 3000 μm

  • Frequency Versatility: Supports a frequency range from 0.1 to 30 THz

  • Fast Response: Features a typical rise time of 0.2 s

  • Power Sensitivity: Exhibits typical power sensitivity of 70 kV/W

  • Analog Output: Provides a 0-10 V analog output via a BNC connector

  • Chopping Frequency: Compatible with the SDC-500 digital optical chopper (sold separately)

  • Minimum Repetition Rate: Supports measurements at a minimum repetition rate of 1000 Hz

Applications


  • Terahertz Research: Ideal for scientific investigations in the terahertz spectral region

  • Spectroscopy: Enables precise spectral analysis and material characterization

  • Material Testing: Used for non-destructive testing and quality control of various materials

  • Industrial Terahertz Applications: Suitable for terahertz imaging and process control

  • Terahertz Imaging: Essential for imaging applications in fields like medicine and security
