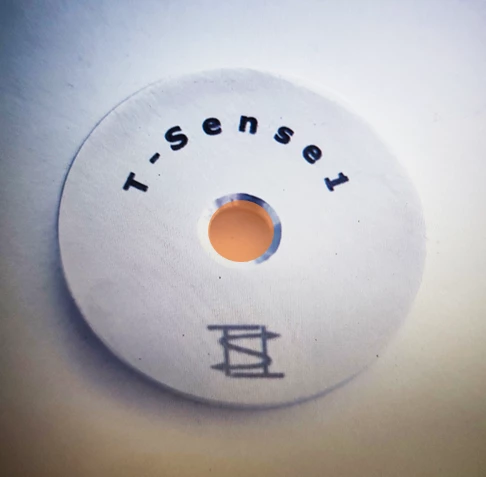

T-Sense1 Ultrabroadband Terahertz Detector T-Sense

Name: T-Sense1 Ultrabroadband Terahertz Detector T-Sense
Brand: TeraSpinTec GmbH

Description

The T-Sense1 Terahertz Detector from TeraSpinTec GmbH is based on an ultra-thin GaP(110) crystal that enables efficient detection via free-space electro-optic sampling.

It offers a wide frequency range of 0.1 up to 30 THz, with high detection efficiency and fully passive operation. The T-Sense1 is also the thinnest electro-optic GaP crystal available on the market, providing the highest THz bandwidth.

Specifications

Spectral Range (Frequency):	0.1 – 30 THz
Spectral Range (Wavelength):	785 – 785 um
Max Measurable Power:	80000 uW
Effective Aperture:	Not Specified
Sensor Type:	Other
Spectral Gap:	~8 THz
Crystal Type:	GaP(110)
Probe Pulse:	Dependent on experimental conditions
Dimensions:	25.4x4 mm

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Ultra-thin GaP(110) crystal for efficient detection via free-space electro-optic sampling
Wide frequency range from 0.1 up to 30 THz
High THz-detection efficiency
Fully passive operation
Long-term stability
Thinnest electro-optic GaP crystal on the market for highest THz bandwidth

Applications

Terahertz spectroscopy
Material characterization
Non-destructive testing
Security screening
THz imaging

Request Quote

To: TeraSpinTec GmbH
Re: T-Sense1 Ultrabroadband Terahertz Detector T-Sense

Name

Work Email

Organization

Country

Your message to supplier

Get quotes from similar suppliers (Recommended)

Thank you, your message was sent successfully.

Ships from:: Germany
Sold by:: TeraSpinTec GmbH
On FindLight:: since 2022

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the T-Sense1 Terahertz Detector used for?

The T-Sense1 Terahertz Detector is used for terahertz spectroscopy, material characterization, non-destructive testing, security screening, and THz imaging.

What is the frequency range of the T-Sense1 Terahertz Detector?

The T-Sense1 Terahertz Detector has a wide frequency range from 0.1 up to 30 THz.

What is the key feature of the T-Sense1 Terahertz Detector?

The key feature of the T-Sense1 Terahertz Detector is its ultra-thin GaP(110) crystal, which enables efficient detection via free-space electro-optic sampling.

Is the T-Sense1 Terahertz Detector passive or active?

The T-Sense1 Terahertz Detector is fully passive, meaning it does not require external power or active components for operation.

What is the thickness of the GaP(110) crystal used in the T-Sense1 Terahertz Detector?

The GaP(110) crystal used in the T-Sense1 Terahertz Detector has a thickness of 30 μm.
