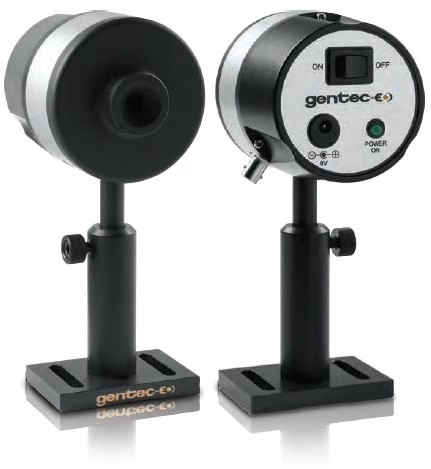

Thumbnail of Gentec-EO - Terahertz Pyroelctric Detectors - THZ5I-BL-BNC photo 1

Description

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material temperature.

Broadband, room-temperature pyroelectric detectors are playing an important role in the research and development of advanced THz sources. Interest for these sources have increased dramatically over the past five years as has interest in development of broadband thermal detectors to support the research.

Gentec-EO - Terahertz Pyroelctric Detectors - THZ5I-BL-BNC

Visit the Gentec-EO Store

Specifications

Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 140 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Sensitive 5-mm detector integrated with low-noise amplifier
  • Wide dynamic range from nW to µW
  • Battery or AC powered
  • Compatible with an oscilloscope or lock-in amplifier

Applications

  • Security scanning of people and baggage
  • Nondestructive testing of airplane wing structures
  • Early detection of cancerous growths
  • Noninvasive testing in microelectronics
  • Terahertz spectroscopy



Frequently Asked Questions

What is the Gentec-EO Terahertz Pyroelectric Detector used for?
The Gentec-EO Terahertz Pyroelectric Detector is used for terahertz (THz) sensing applications.
What is the dynamic range of the detector?
The detector has a wide dynamic range from nW to µW.
How is the detector powered?
The detector can be powered by either battery or AC power.
What devices is the detector compatible with?
The detector is compatible with an oscilloscope or lock-in amplifier.
What are the advantages of using pyroelectric detectors for THz detection?
Pyroelectric detectors are small, sensitive, durable, and less costly. They have a broad spectral response, wide dynamic range, and are rugged and durable.

Got more questions? Use the inquiry form to ask the supplier directly.
