Description

Gentec-EO offers a room-temperature pyroelectric detector for terahertz (THz) sensing applications. Pyroelectric detectors are AC sources whose output varies inversely with the thickness of material temperature.

Broadband room-temperature pyroelectric detectors are playing an important role in the research and development of advanced THz sources. Interest for these sources have increased dramatically over the past five years as has interest in development of broadband thermal detectors to support the research.

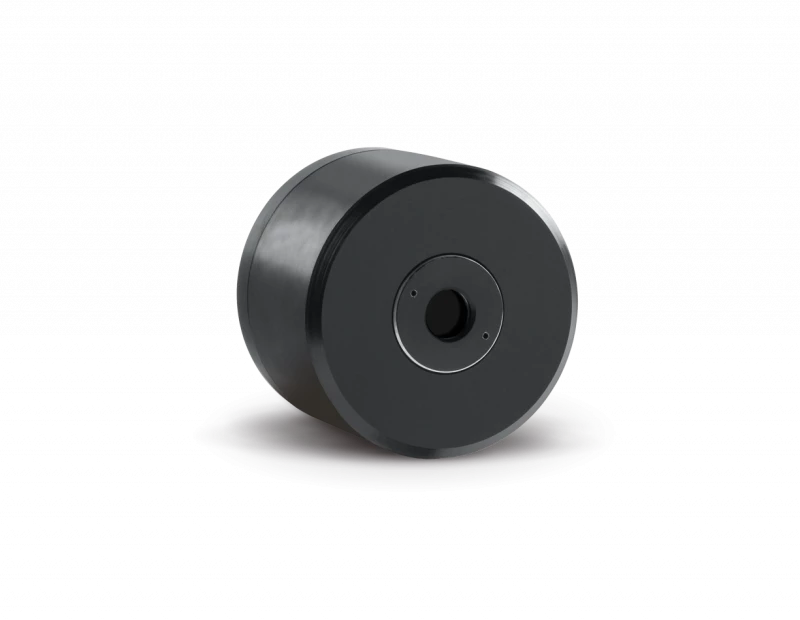

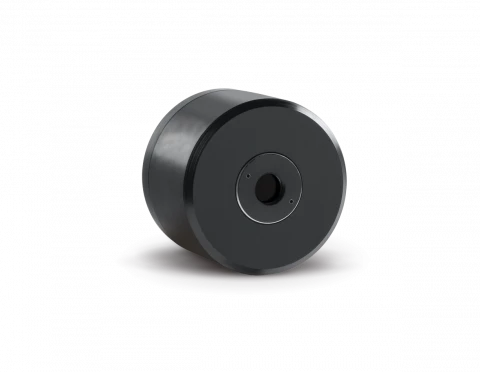

THZ5B-BL-DZ-D0 Detector For Power Measurements

Visit the Gentec-EO Store

Specifications

Spectral Range (Frequency): 0.1 – 30 THz
Spectral Range (Wavelength): 10 – 3000 um
Max Measurable Power: 20000 uW
Effective Aperture: 5 mm
Sensor Type: Pyroelectric
Noise Equivalent Power: 5 nW
Typical Rise Time: 0.2 s
Chopping Frequency: 25 Hz
Minimum Repetition Rate: 1000 Hz
Max Average Power Density: 0.01 W/cm²
Absorber: BL
Dimensions: 66.0Ø x 46.5D mm
Weight: 0.23 kg

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

RELATIVE MEASUREMENTS FROM 0.1 TO 30 THZ: Broadband, room temperature operation, easier to use and less expensive than a Golay cell.

WIDE DYNAMIC RANGE: With state of the art pyroelectric sensors, measure down to 50 nW with 1 nW resolution.

SEVERAL SENSOR SIZES AVAILABLE: Choice of 5 mm and 9 mm diameter.

CALIBRATED: THZ-B detectors are calibrated at a single wavelength (0.63 µm) and include typical wavelength correction data from 0.25 to 440 µm. They are used for relative measurements outside that range.

SDC-500 OPTICAL CHOPPER: All THZ-B detectors require the use of an optical chopper, like our SDC-500, to sync the signal at either 5 Hz (DA models) or 25 Hz (DZ models).

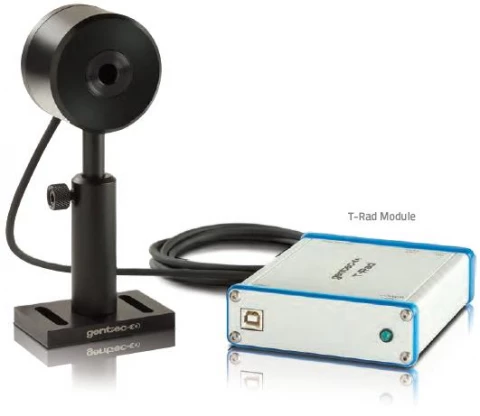

USER-FRIENDLY SOFTWARE WITH MANY FEATURES (WHEN USED WITH T-RAD-USB):
  • Strip chart, statistics and tuning needle displays
  • Controls and power display always visible
  • Tuning needle display includes min/max indicators
  • Data logging for long term testing

Applications

  • Security scanning of people and baggage
  • Nondestructive testing of airplane wing structures
  • Early detection of cancerous growths
  • Noninvasive testing in microelectronics
  • Terahertz spectroscopy

Frequently Asked Questions

What is the THZ5B-BL-DZ-D0 Detector used for?
The THZ5B-BL-DZ-D0 Detector is used for terahertz (THz) sensing applications.
What is the frequency range of the THZ5B-BL-DZ-D0 Detector?
The THZ5B-BL-DZ-D0 Detector has a frequency range of 0.1 to 30 THz.
What is the noise equivalent power of the THZ5B-BL-DZ-D0 Detector?
The noise equivalent power of the THZ5B-BL-DZ-D0 Detector is 5 nW.
What is the minimum repetition rate of the THZ5B-BL-DZ-D0 Detector?
The minimum repetition rate of the THZ5B-BL-DZ-D0 Detector is 1000 Hz.
Does the THZ5B-BL-DZ-D0 Detector come with user-friendly software?
Yes, the THZ5B-BL-DZ-D0 Detector comes with user-friendly software with many features when used with T-RAD-USB, including strip chart, statistics and tuning needle displays, controls and power display always visible, tuning needle display includes min/max indicators, and data logging for long term testing.

Got more questions? Use the inquiry form to ask the supplier directly.
